Section V - Operating Instructions
Checking the display

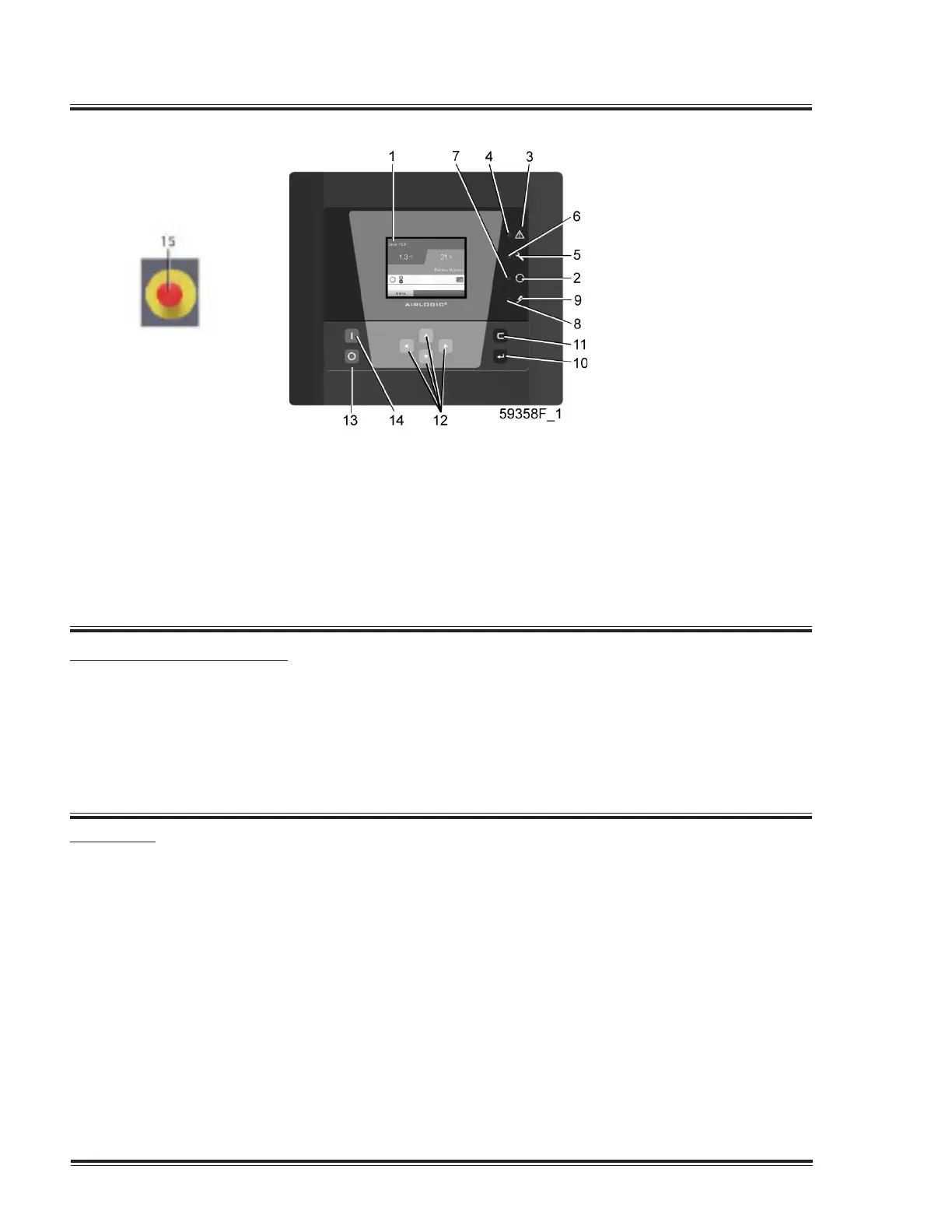

Control panel Airlogic Graphic
Check the display (1) regularly for readings and messages. The display normally shows
the vacuum pump vacuum pressure, while the status of the vacuum pump is indicated
by means of a number of icons. Remedy the trouble if alarm LED (4) is lit or ashes, see
section Icons used. The display (1) will show a service message if a service plan interval
has been exceeded or if a service level for a monitored component has been exceeded.
Carry out the service actions of the indicated plans or replace the component and reset
the relevant timer, see section Service menu.
Taking out of operation
• Disconnect the vacuum pump from the mains.
• Shut off and vent the part of the system which is connected to the vacuum pump
by opening the plug located on the lit of the air inlet lter. Isolate the vacuum pump
from the vacuum system.
• Drain the oil.
Stopping
• Press stop button (13). Automatic operation LED (7) goes out and the vacuum pump
stops.
• To stop the vacuum pump in the event of an emergency, press emergency stop
button (15).
•Remedytheproblemcause,unlockthebuttonbypullingitout.
•NavigatetotheStopicononthedisplaybymeansofthenavigationkeys(12)or
scroll keys and press the Select key.
Press Reset.
Do not use emergency stop button (15) for normal stopping!
• Close the air inlet valve.
• Switch off the voltage.
74 Quincy Vacuum Pump-QSV Series
