Section III - Airlogic Graphic Controller
7 Automatic operation LED Indicates that the regulator is automatically controlling the
vacuum pump.
8 Voltage on LED Indicates that the voltage is switched on.
9 Pictograph Voltage on
10 Enter key Key to select the parameter indicated by the horizontal arrow.
Only the parameters followed by an arrow pointing to the right
can be modified.
11 Escape key To go to previous screen or to end the current action
12 Scroll keys Keys to scroll through the menu.
13 Stop button Button to stop the vacuum pump. LED (7) goes out.
14 Start button Button to start the vacuum pump. LED (7) lights up indicating
that the electronic regulator is operative.

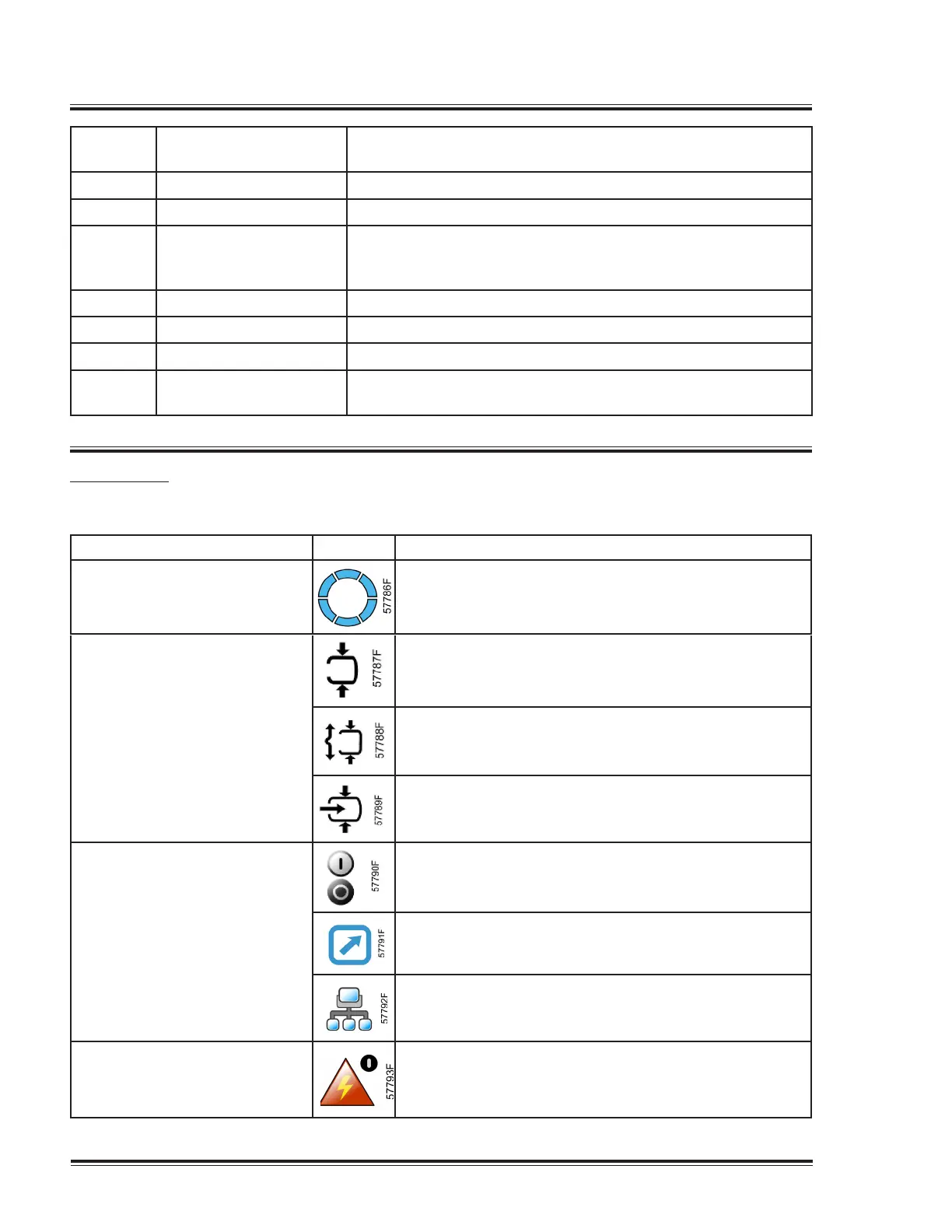

Icons used
Status icons
Name Icon Description
Stopped / Running
When the vacuum pump is stopped, the icon stands still.
When the vacuum pump is running, the icon is rotating.
Vacuum pump status
Motor stopped
Running Purge and Intermediate states
Running Vacuum Control
Machine control mode
Local start/stop
Remote start/stop
Network control
Automatic restart after voltage
failure
Automatic restart after voltage failure is active
18 Quincy Vacuum Pump-QSV Series
