Section III - Airlogic Graphic Controller
Service warning
A number of service operations are grouped (called Service Plans). Each Service Plan
has a programmed time interval. If a time interval is exceeded, a message will appear on
display (1) to warn the operator to carry out the service actions belonging to that Service
Plan.
Automatic restart after voltage failure
The regulator has a built-in function to automatically restart the vacuum pump if the
voltage is restored after voltage failure.For vacuum pumps leaving the factory, this
function is made inactive. If desired, the function can be activated. Consult the Quincy
Customer Center.
WARNING!
If activated and provided the regulator was in the automatic operation mode, the
vacuum pump will automatically restart if the supply voltage to the module is restored.

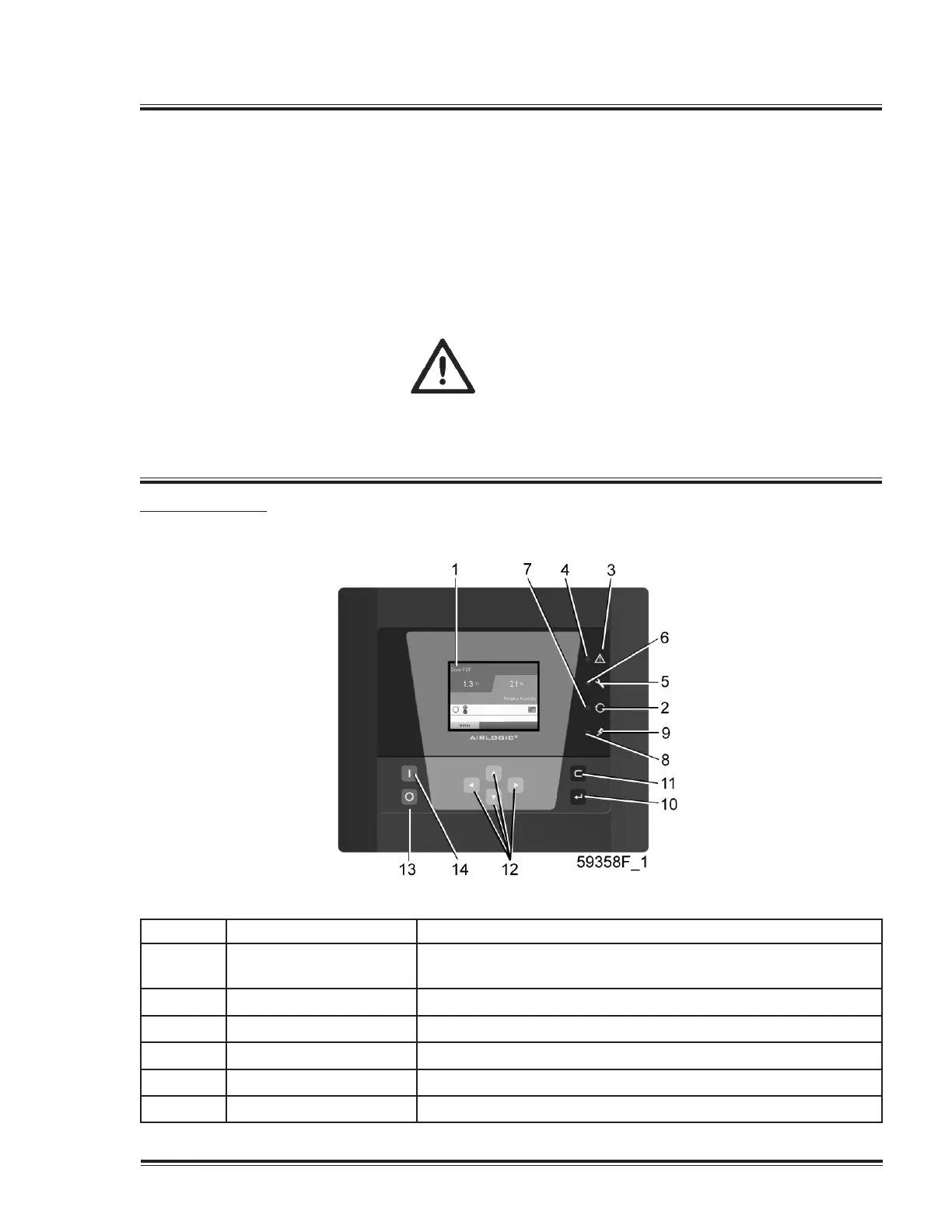

Control panel
Airlogic regulator
Airlogic regulator
Reference Designation Function
1 Display Shows the vacuum pump operating condition and a number of
icons to navigate through the menu.
2 Pictograph Automatic operation
3 Pictograph General alarm
4 General alarm LED Flashes if a shut-down warning condition exists.
5 Pictograph Service
6 Service LED Lights up if service is needed
Quincy Vacuum Pump-QSV Series 17
