Section V - Operating Instructions
Initial start-up
• Maintenance Schedule
During operation
Taking out of operation
Stopping
Initial start-up
CAUTION!
The operator must apply all relevant Safety precautions. Also consult section Problem
solving.
Remove the canopy panel(s) in order to get access to the internal components.

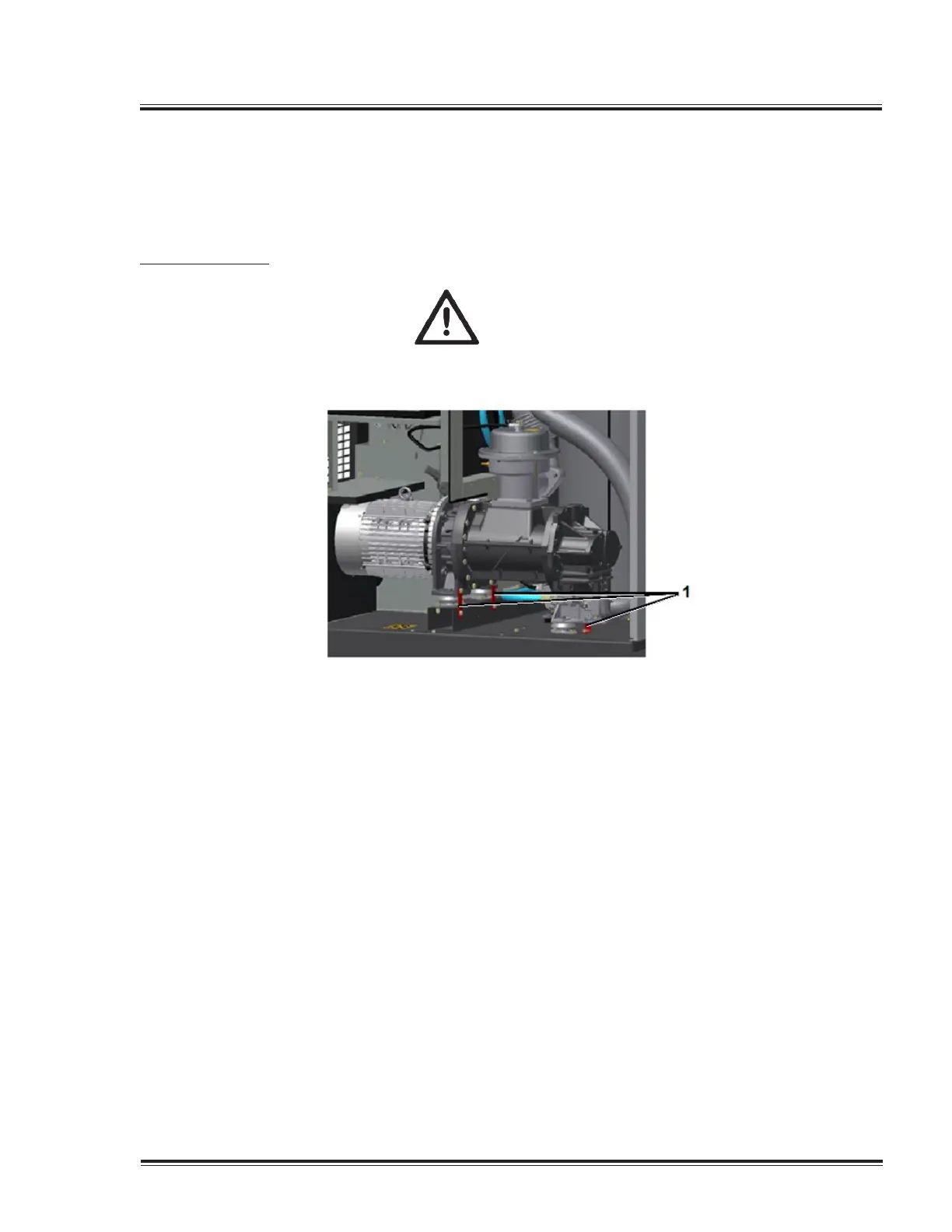

• Remove the red transport spacers and the related bolts under element (1) and oil
separator tank.
• Check that the electrical connections correspond to the local codes and that all
wires are clamped tight to their terminals.
• The installation must be earthed and protected against short circuits by fuses of
the inert type in all phases. It is advised to install an isolating switch near the
vacuum pump.
• Check the process lines for the correct size to prevent high pressure drop and for
cleanliness to protect the vacuum pump. Also check for leaks.
• Make sure the pump outlet is not obstructed.
• Fit inlet isolation valve (IV); see section Installation proposal for the position of the
valve.
• Close the valve.
• Connect the inlet pipework to the valve.
• Check the oil level, the oil level should reach the top of the oil sight glass (GI).
• If needed, top up the oil via the oil ller plug (FC).
Quincy Vacuum Pump-QSV Series 71
