STANDARD INSTALLATION

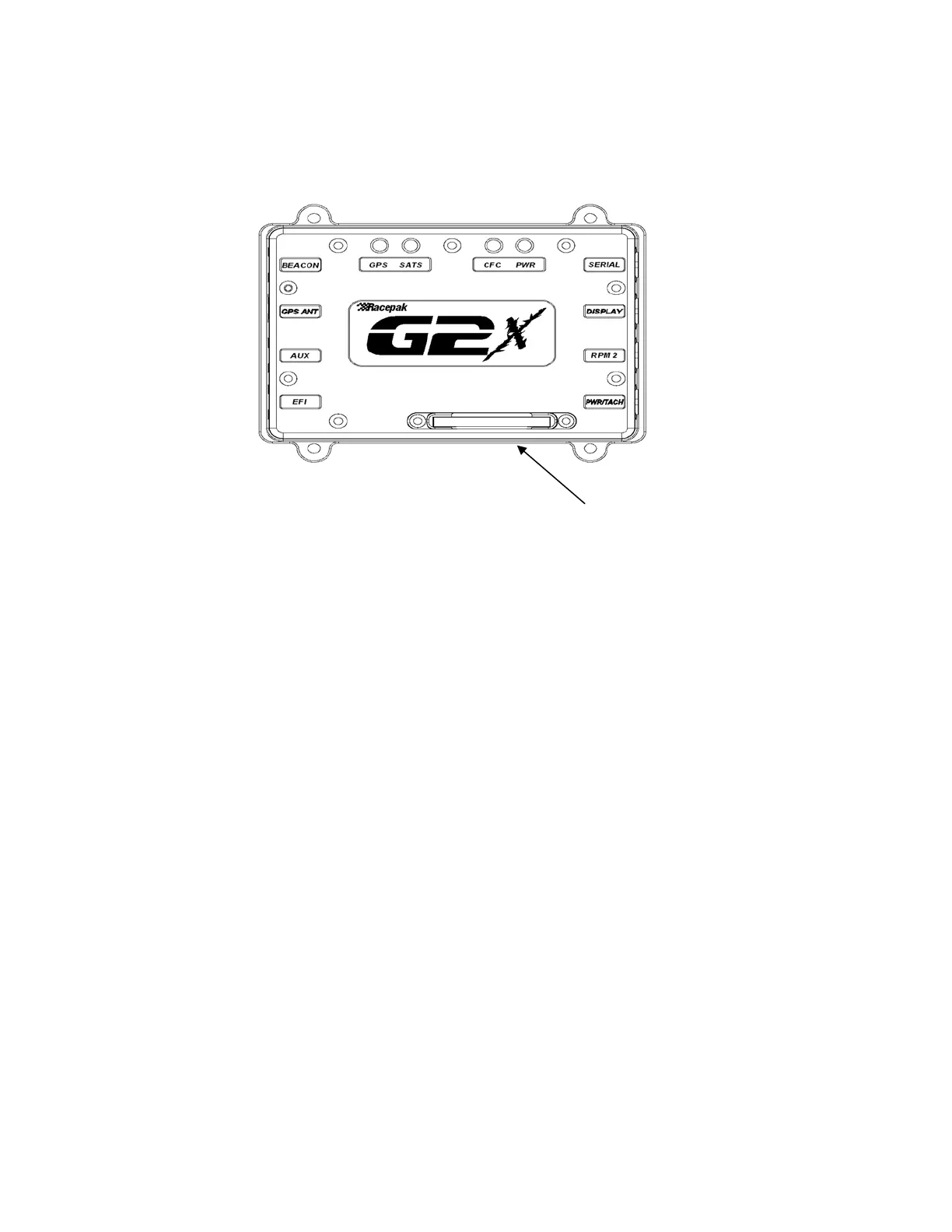

G2X Connection Introduction
Compact Flash Card Port
BEACON (optional):
Input for the onboard vehicle postion reciever.
GPS ANT:
Provides connection for the external mounted GPS antenna.
AUX (optional):
Reserved for future expansion.
EFI (optional):
Provides connection for input from select vehicle EFI units.
PWR / TACH:
Provides connection for external power source and tachometer signal.
RPM 2 (optional):
Provides connection for additional external RPM input.
DISPLAY:
Provides connection for the display dash.
SERIAL:
Provides connection for the RS-232 serial cable, to enable communication between the users PC and G2X.
CFC / POWER LED:
Provides status of the power connection and Compact Flash Card activity.
GPS / SATS LED:
Provides status of GPS satellite acquisition.
COMPACT FLASH CARD PORT:
Insertion point for Compact Flash card. Provides over 30 hours of GPS information, with 128 MB card.
