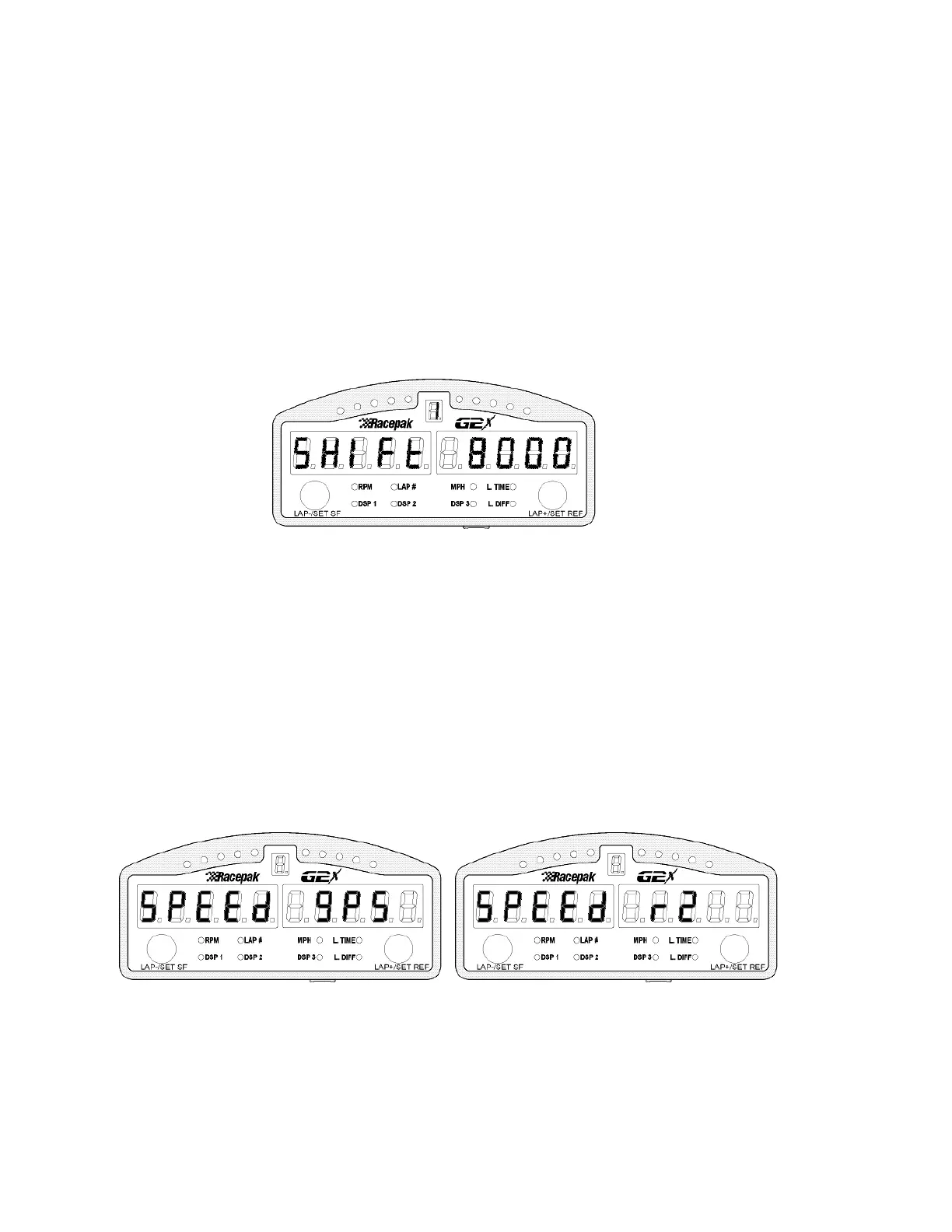

Shift Light RPM Level
Allows the user to program the shift light RPM for up to 6 gears. The current gear being programmed is
shown in the gear display at the top of the dash. Upon entry to this programming screen, Gear 1 is
automatically displayed.
1) Increase RPM set point by 10: Short right press - Returns at 20000 to 0
1) Decrease RPM set point by 50: Medium right press - Returns at 0 to 20000
2) Increase RPM set point by 50: Long key press - Returns at 20000 to 0
3) Auto increase RPM set point by 50: Held Key - Every .2 seconds
4) Go to next gear for programming: Short left press
Short left press: Accept selection and go to next setup parameter
Long left press: Save programming and Exit Setup
Speed Source
The Display Dash may use GPS or the RPM 2 port as the source of the mph display, and gear
calculations.
1) Toggle source: Short right key press
2) Toggle source: Medium right key press
Short left press: Accept selection and go to next setup parameter
Long left press: Save programming and Exit Setup
18
