Gear Indicator Ratios
This selection allows the user to input the appropriate gear ratios, in order for the Display Dash to
activate the Gear Indicator LED. The ratio to be programmed is simply the Engine RPM divided by the
mph and can by calculated using gear ratios and tire diameters.
The ratios are programmable from 0 to 500 in increments of 1.
Key commands are as follows:
1) Increment ratio by 1: Short right key press - Return at 500 to 0
2) Decrement ratio by 5: Medium right key press - Return at 0 to 500
3) Increment ratio by 5: Long right press - Return at 500 to 0
4) Auto increment by 5: Press and hold right key - Return at 0 at 500
5) Go to next ratio or programming item: Short left key press
Short left press: Accept selection and go to next setup parameter

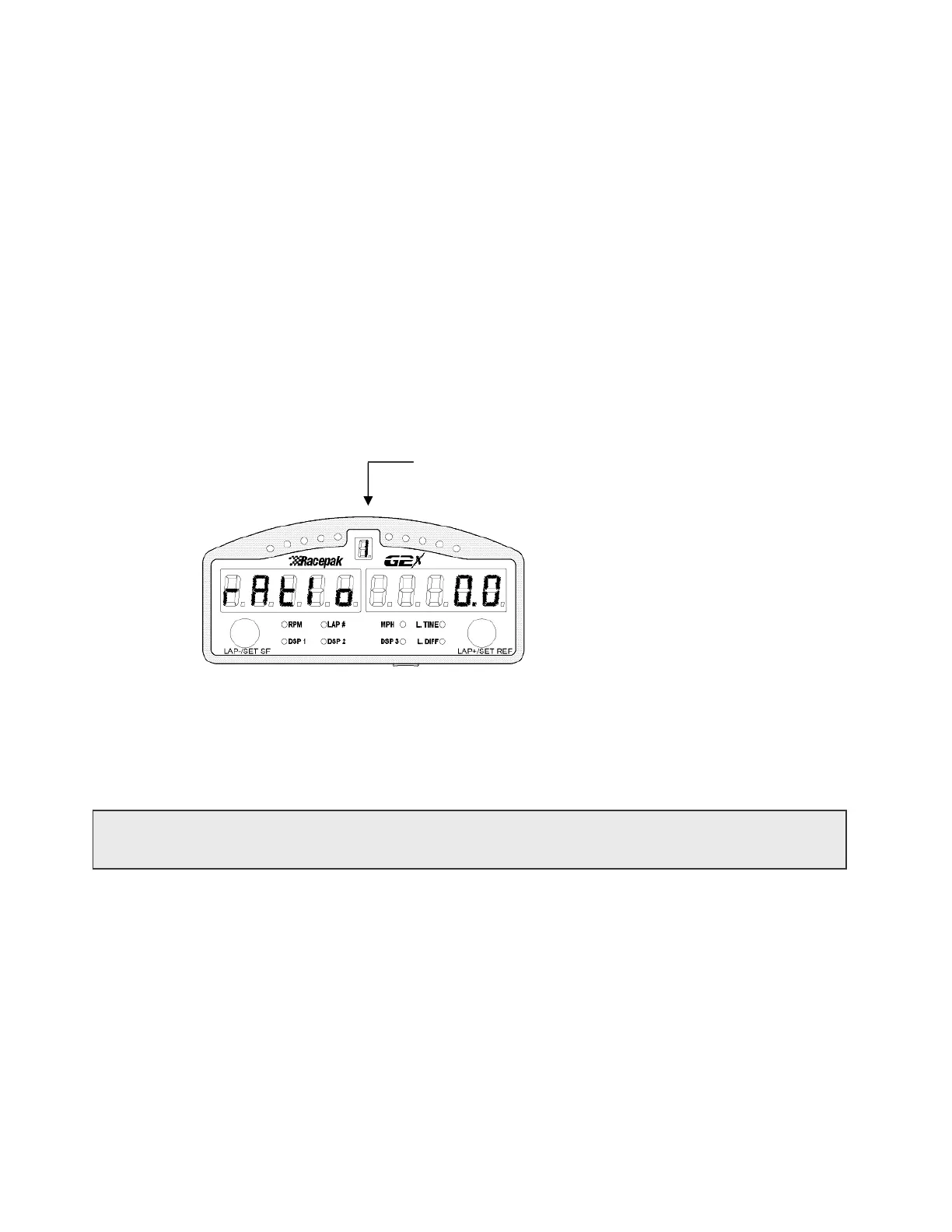

The gear display at the top of the dash shows
the ratio currently being programmed.
Long left press: Save programming and Exit Setup
Tip: An easier and more accurate method to program the Gear Indicator Ratio is to use SETUP
Mode 2. In SETUP Mode 2 you can calibrate the ratios automatically while driving the vehicle.
