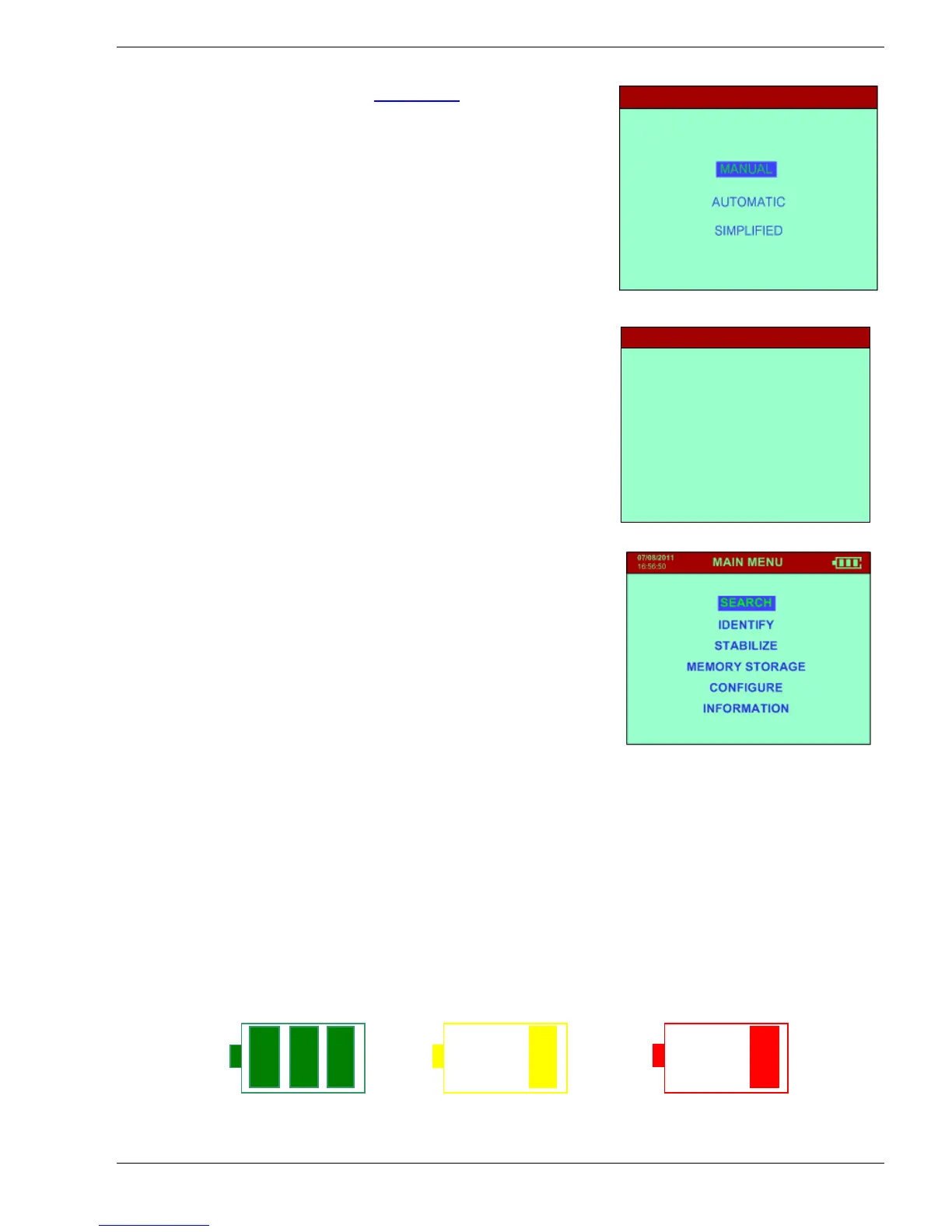

c) MODE SELECTION (See Sec
tion 2.3
for more
i
nformation)
The Syclone is delivered fully powered and in the
MANUAL Mode, so that the customers’ technician can
setup parameters specific to their usage. To change the
Mode setting, startup the unit and hold down the joystick
when the cover page appears, the mode selection
screen will then appear and the user can use the joystick
to choose from MANUAL, AUTOMATIC, or SIMPLIFIED
MODE. The Syclone is ready to be used for the selected
mode by the operator or technician.
d) Initialization and Testing
To power the unit ON, CLICK DOWN (towards the user)
the joystick. The display will come on and System
Initialization will proceed for a few seconds. The unit is
carrying out internal testing to verify that components
are functioning correctly. If errors are found, an audio
beep will be heard.
e) MAIN MENU
After the initial start-up screen, the Syclone Main Menu
appears. The user may scroll through the menu items by
a short click UP or click DOWN. Reverse “highlighting”
shows the current menu item selected.
Menu items are selected by highlighting the desired item
and clicking ENTER to activate the selection. When the
system is turned ON, user can use the system after a 2 –
minute warm up time, however for best performance
please let the system warm up for 15 minutes.
f) POWER OFF - MANUAL
To power the unit OFF, CLICK UP (away from the user)
and hold for approx. 4 seconds. The display (see Figure) shows the seconds counting down;
3, 2, 1. After this countdown the unit powers OFF. At any time during the countdown,
releasing the JOYSTICK will cancel the power OFF.
g) LOW BATTERY WARNINGS
The Battery ICON at the top right of the display is used to provide the user with an idea of the
current battery status.
To provide some level of warning of imminent battery life - if the batteries fall below a certain
level then an audio warning occurs and the Battery ICON flashes for immediate attention.
The user has approximately 30 minutes of measuring time left in the battery at this time.
When there is no longer enough power to allow measuring, the Syclone turns OFF.
F
u
ll
Charge 1/3 Charge Low Battery Warning (Flashing)
Figure 2-2
SYSTEM TEST
S
Y
STEM TESTSYSTEM TEST
SYSTEM TEST
BATTERY TEST PASSED
BAT
TERY TEST PASSEDBATTERY TEST PASSED
BATTERY TEST PASSED.
..
.
DOSE MEMORY TEST PASSED
DOSE MEMORY TEST PASSEDDOSE MEMORY TEST PASSED
DOSE MEMORY TEST PASSED.
..
.
SPEC MEMORY TEST PASSED
SPEC MEMORY TEST PASSEDSPEC MEMORY TEST PASSED
SPEC MEMORY TEST PASSED.
..
.
NaI TEST PASSED
NaI TEST PASSEDNaI TEST PASSED
NaI TEST PASSED.
..
.
PLEASE WAIT
PLEASE WAITPLEASE WAIT
PLEASE WAIT...
......
...
