Radio Systems StudioHub+ User Manual

10
Revised 10-30-15
Part # MJ-AD StudioHub+ Analog to Digital Converter
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
DC power in +/- 15 volts DC included
(Radio Systems Part # PS-UCUBE)
Unit can also be powered by
StudioHub+ “DC-Link” via RJ-45’s.
JU7, JU8
Install to connect RJ-45 shield
to ground to power ground

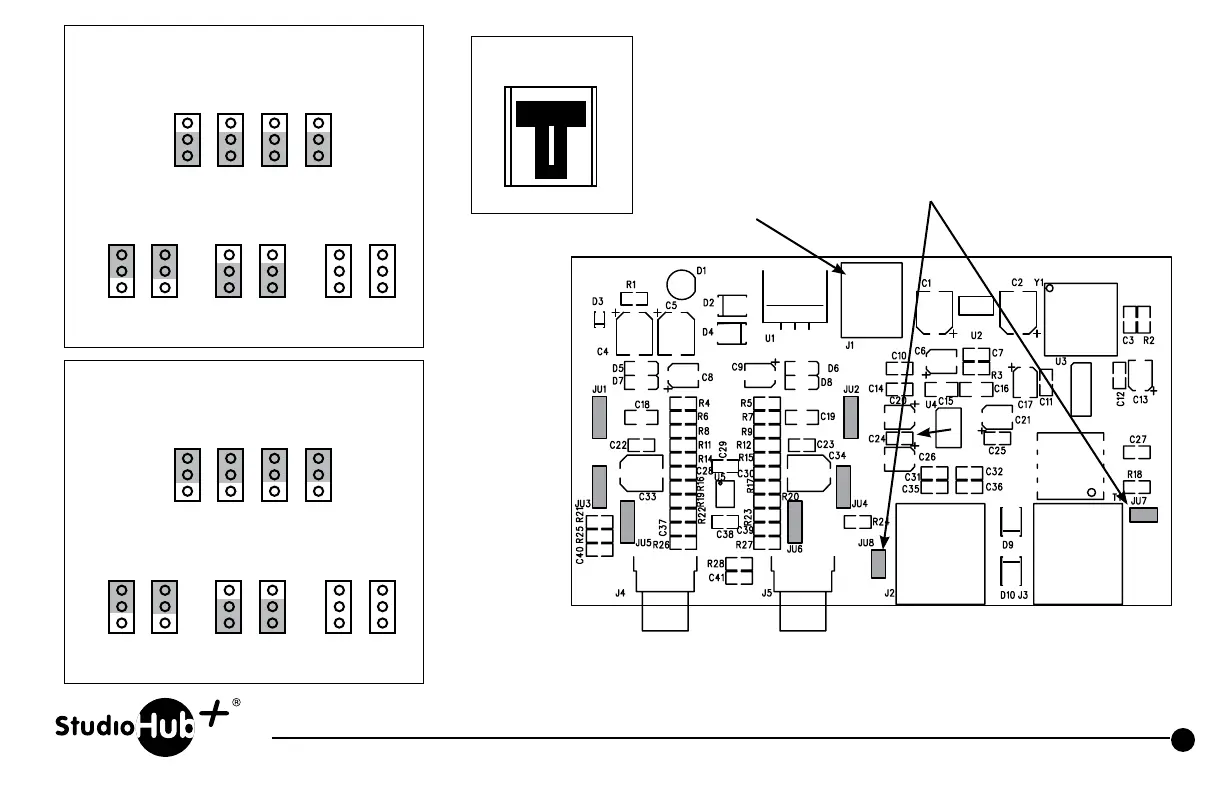

Unbalanced Inputs
Balanced
Input
AES/EBU
Output
Left Right
JU3 JU4 JU5 JU6
Set Input Level
Pro Level Input
IHF
C
D
C
D
C
D
PRO
Set Nominal Input Sensitivity*
Short all lower pins
0dBu
Short Upper Pins Short Lower Pins Short No Pins
+4dBu +8dBu
JU1 JU2 JU1 JU2 JU1 JU2
JU3 JU4 JU5 JU6
Set Input Level
Consumer Level Input
IHF
C
D
C
D
C
D
PRO
Set Nominal Input Sensitivity*
Short all upper pins
-15dBv
Short Upper Pins Short Lower Pins
* Set for station standard
reference level to provide unit
output headroom of 20dB.
Short No Pins
-10dBv -6dBv
JU1 JU2 JU1 JU2 JU1 JU2
+15vG-15v
REDBLUWHT
Power Supply Connector
