11
Revised 10-30-15
Part # MJ-DA StudioHub+ Digital to Analog Converter
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
AES/EBU InputTOSlink InputCoaxial Input
Analog Output
+15vG-15v
REDBLUWHT
Power Supply Connector

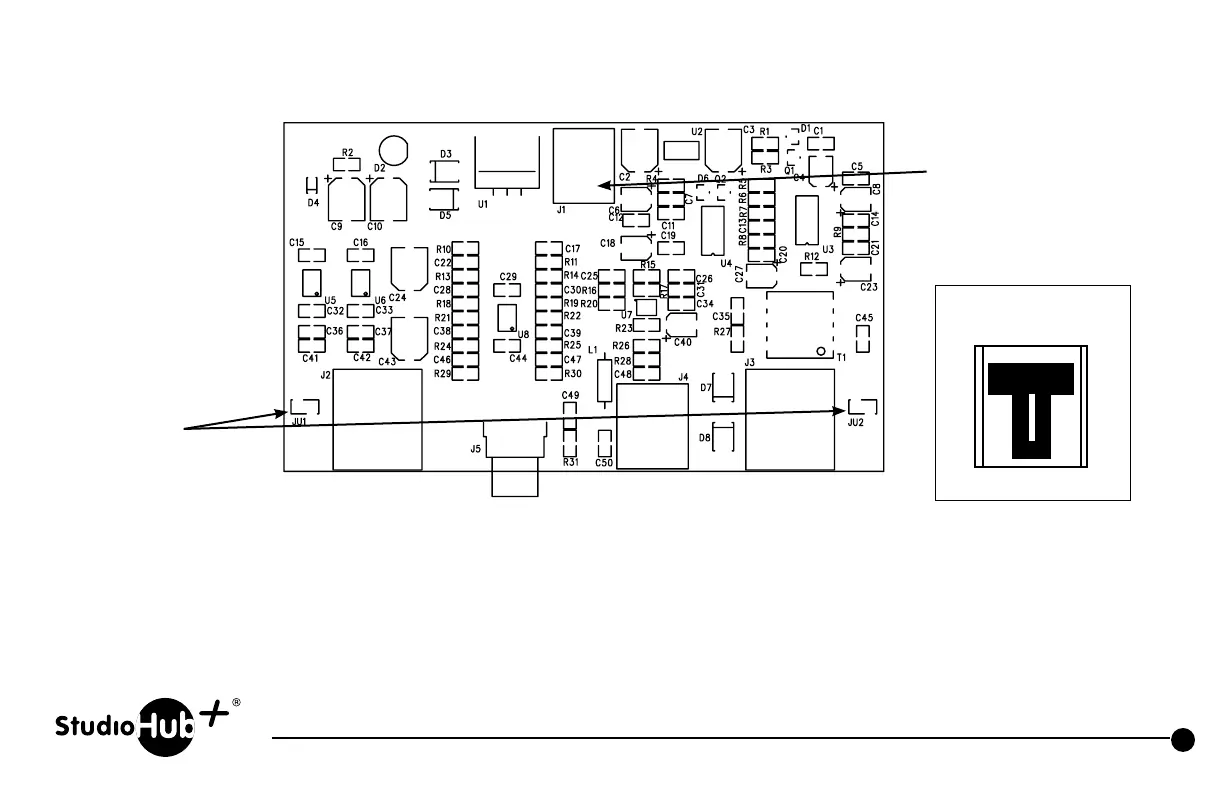

JU1 and Ju2
Install to connect
RJ-45 shield
to ground
DC power in +/- 15 volts DC
included
(Radio Systems Part # PS-UCUBE)
Unit can also be powered by
StudioHub+ “DC-Link” via RJ-45’s.
