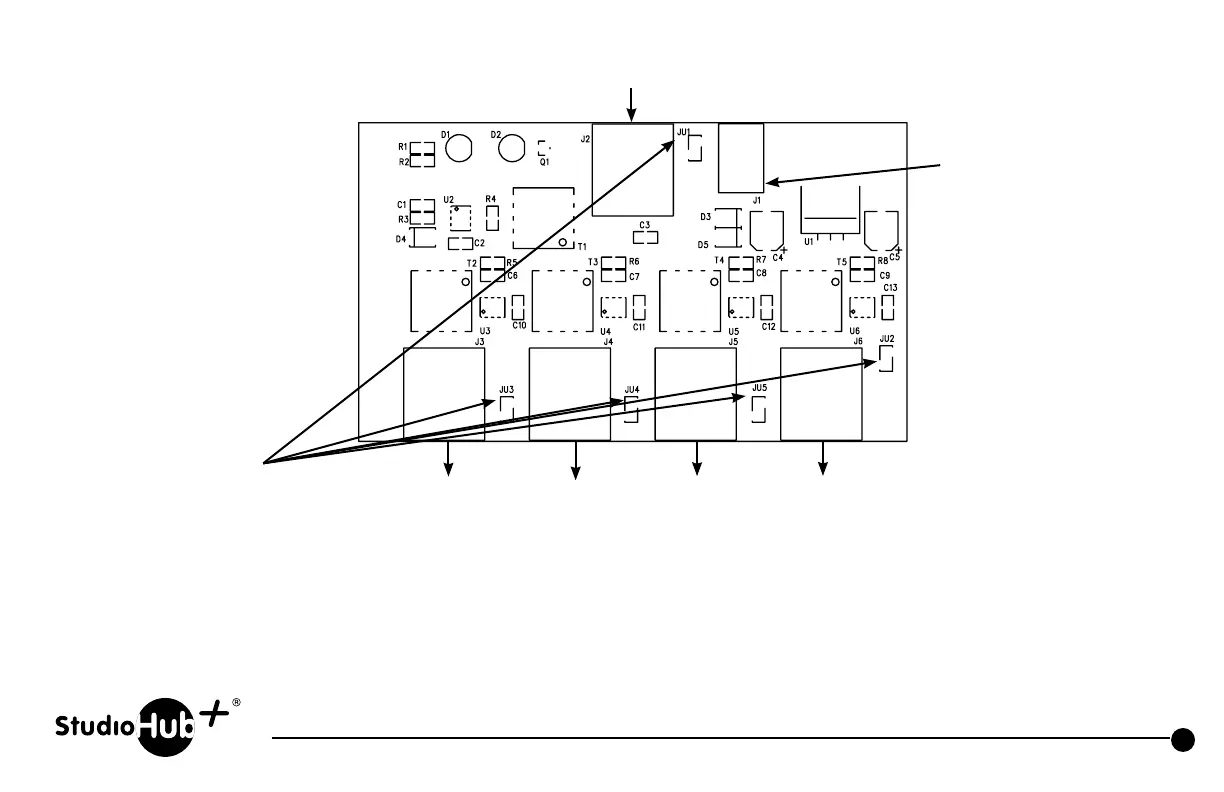

AES Output #1 AES Output #2 AES Output #3
AES Input
AES Output #4
JU1 - Ju5
Install to connect
RJ-45 shield
to ground
DC power in +9 volts DC included.
(Radio Systems Part # 16213).
Unit can also be powered by
StudioHub+ “DC-Link” via RJ-45’s
Part #
MJ-DDA StudioHub+ Digital Distribution Amplifier
