Edition 2-2
Product Code Breakdown
Referring to the example labels shown previously, an alpha-numeric code (CP1A-100040 in the above
examples) is printed on the top line of the packaging label, the top middle line of the board mounted
label and the metal label (build level 4 and 5). This indicates the board’s build specification and
configuration. Relevant code details are shown below:
CP1A-100040
See also the Product Codes section in the appropriate appendix.
Board Artwork Version
The board artwork version may be identified as follows:
• The numeric prefix given in the product label’s Rev code - see previous page
• The revision number given in BIT and PPCBoot startup banners
• The revision number given when a VxWorks -->sysBoardShow command is executed
Inspection
"CAUTION
PowerPact6 processors are subject to damage by static electricity. Observe antistatic
precautions (wear an antistatic wrist-strap connected to an Earth point and work at an
approved antistatic work station) when handling the board.
1) Visually inspect the board for any damage and loose or dislodged components.
2) As soon as possible, report to Radstone any defects you detect.
3) Referring to the specific appendix, visually inspect the board to ensure that the default
configuration is correct and that there are no loose or missing jumpers.

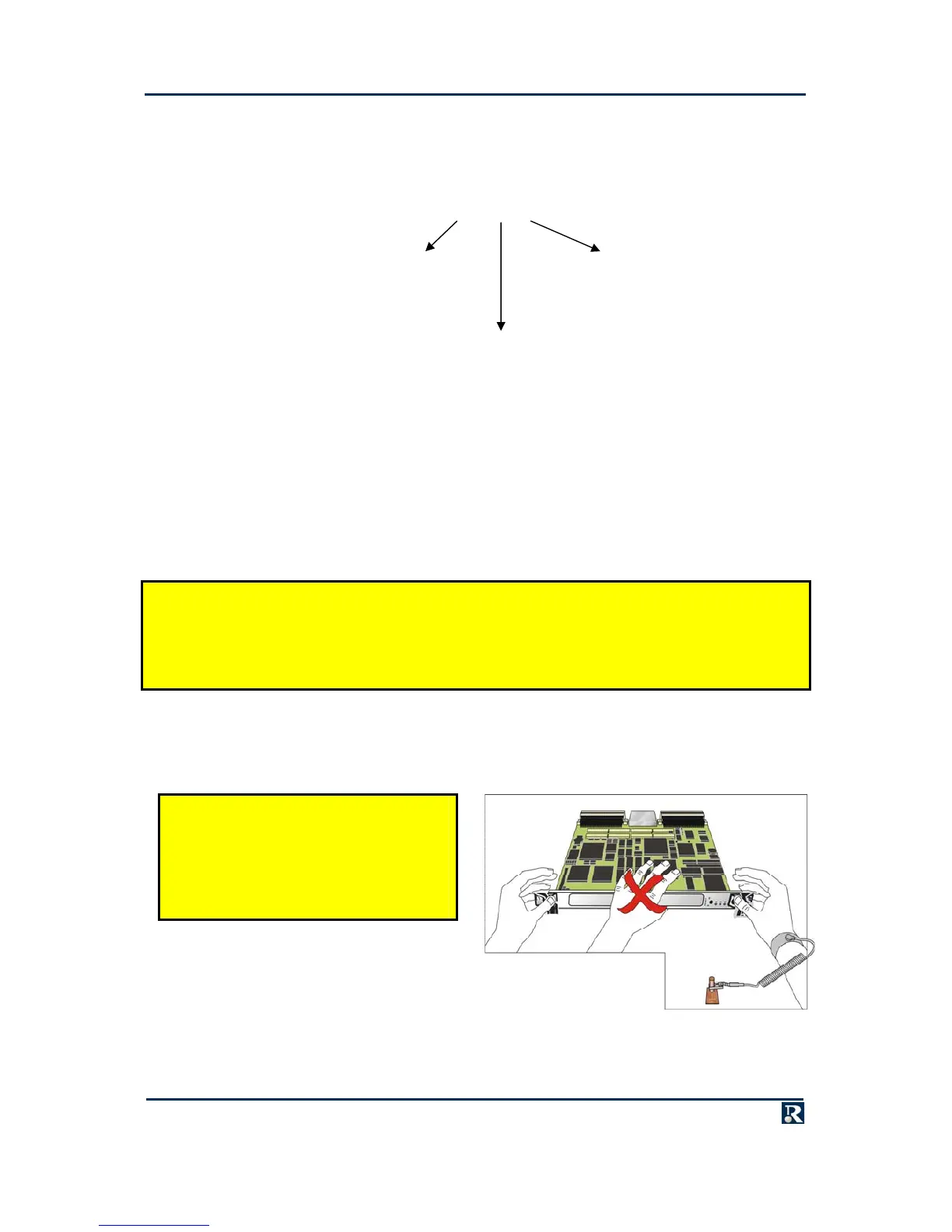

"CAUTION
Handle PowerPact6 processors using
the board edges or front panel. Incorrect
handling may cause component
damage.
PowerPact6
Board T
