Edition 6-3
Dimensions
All build standards of the PowerPact6 processors are PICMG 2.0 R3.0 CompactPCI Bus Specification
compatible. This allows all styles of assembly to be fitted into any commercial CompactPCI Bus
development chassis. Level 4 and 5 boards also comply with ANSI/VITA 30.1-2002 2mm Connector
Equipment Practice on Conduction Cooled Euroboards.
The following diagrams are included for guidance only. For full details, refer to the appropriate
specifications. All dimensions are in millimeters, with inch equivalents shown in parentheses.

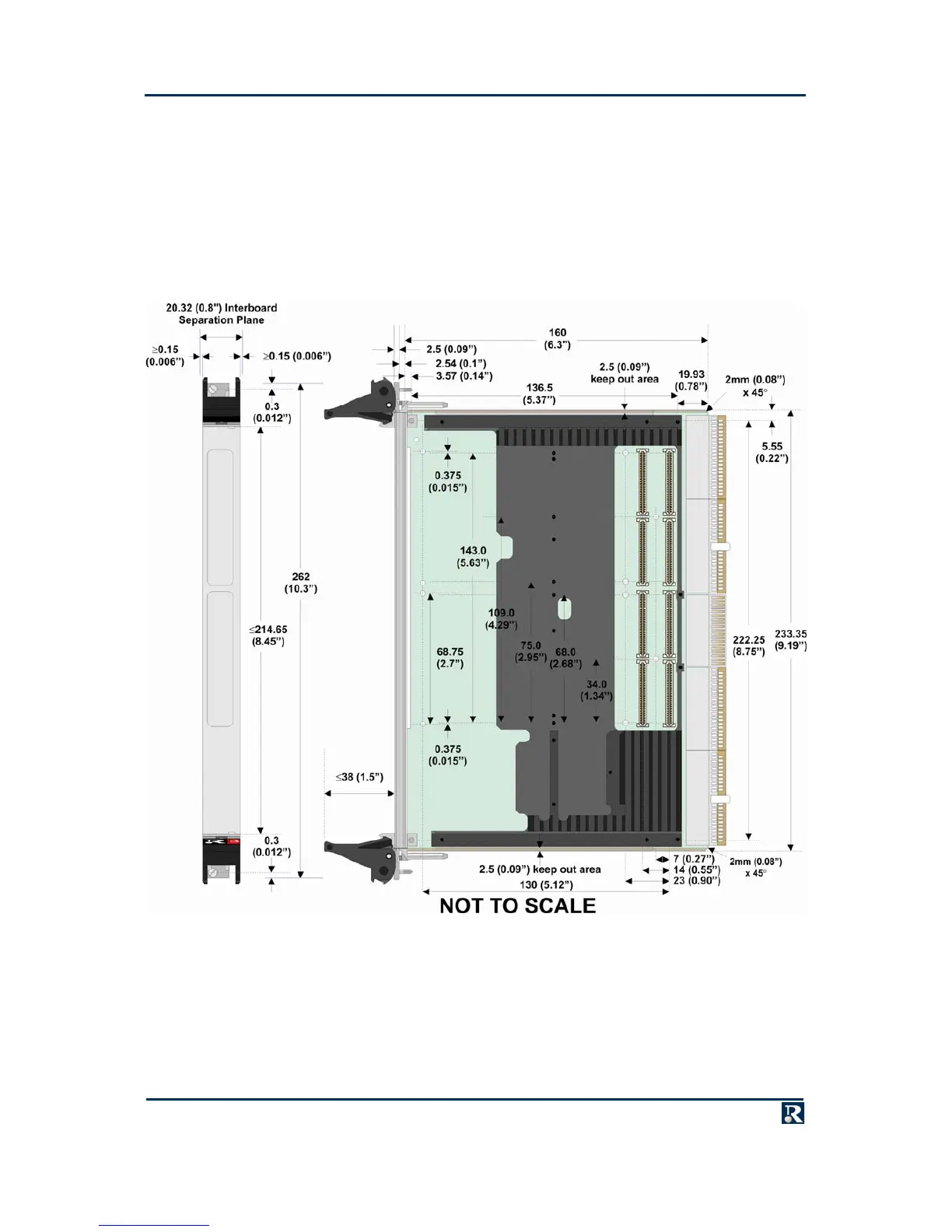

Figure 6-1. Convection-cooled CompactPCI Board Dimensions
