Rain Bird ESP-Me User Manual

Installation
ENG
ESP-Me Controller
10
Connect Rain/Freeze Sensor (optional)
The ESP-Me controller can be set to obey or ignore a
rain sensor. Refer to the Rain Sensor section under
Advanced Programming.
A
Remove the yellow jumper wire from the SENS
terminals on the controller.

NOTE: Do not remove the yellow jumper wire
unless connecting a rain sensor.

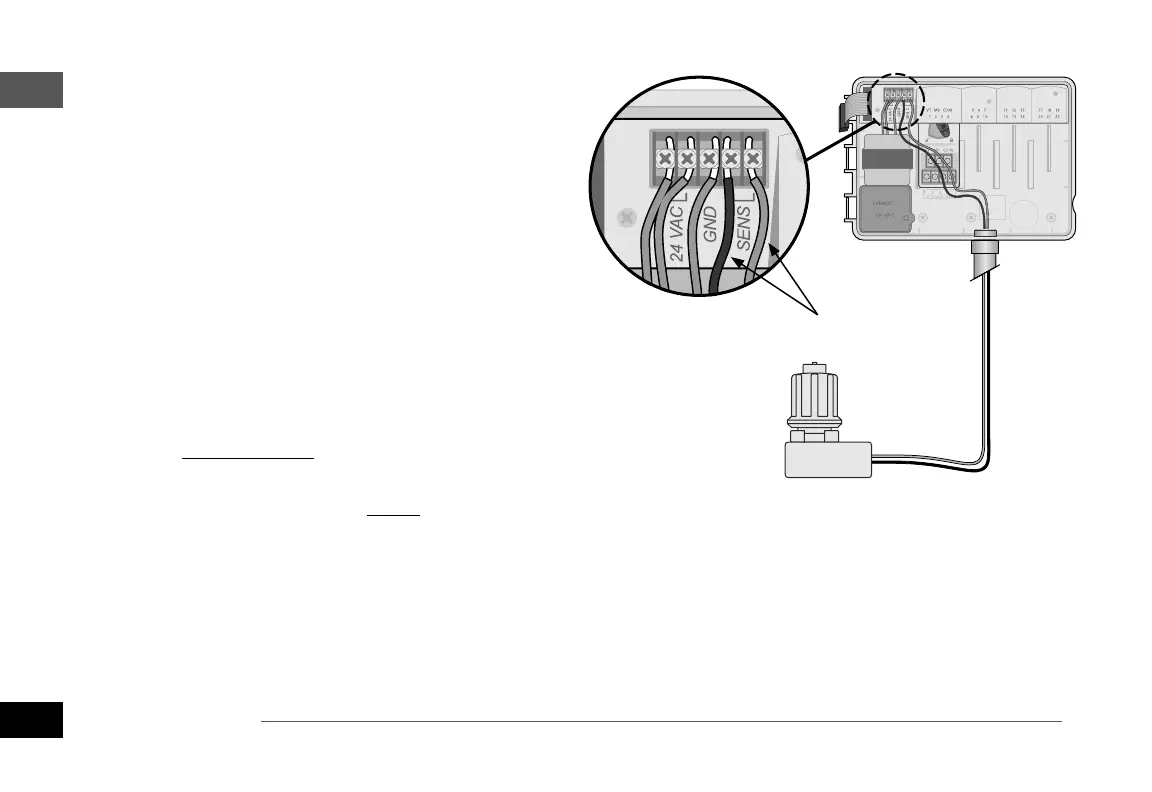

B
Connect both rain sensor wires to the SENS
terminals, as shown.

WARNING: Do not route the rain sensor wires
through the same opening as the power wiring.

NOTE: Rain Bird controllers are only compatible
with normally closed rain sensors.

NOTE: For wireless rain/freeze sensors, refer to
installation instructions for sensor.
B

Rain Bird ESP-Me Specifications

General

Type	Modular
Start Times per Program	4
Master Valve/Pump Start	Yes
Watering Start Times	4 per program
Cycle and Soak	Yes
Rain Delay	Yes
Power Source	24V AC
Voltage	24V AC
Station Run Times	1 minute to 4 hours
Backup Battery	No
