Installation
ENG
ESP-Me Controller
14
Station Numbering
Fixed Station Numbering Description
The controller is congured with Fixed Station Num-
bering. Each bay is set up to accept a 6 station module
and reserve the station number for future use if a 6 sta-
tion module is NOT installed in Bays 2, 3 or 4.
Station numbers are pre-assigned as follows:
Bay 1 Bay 2 Bay 3 Bay 4
VT MV COM
VT MV COM 567 11 12 13 17 18 19
1234 8910141516202122

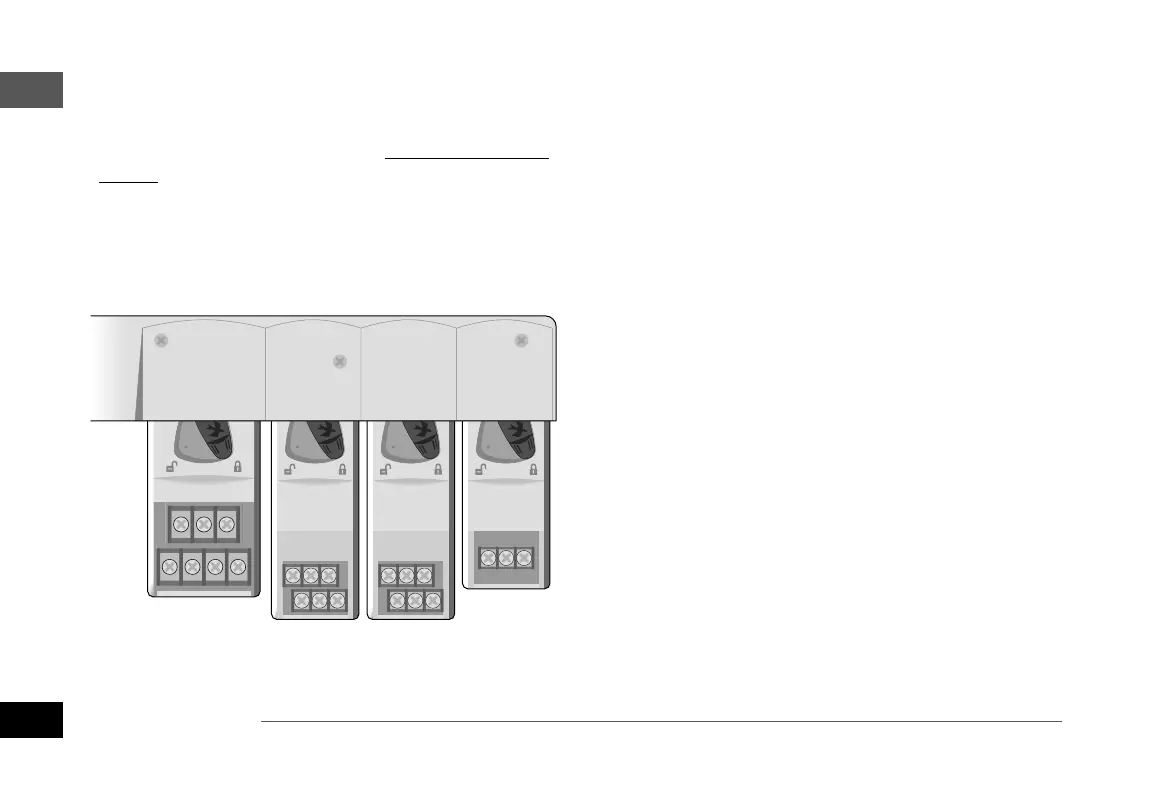

Example Of Recommended Installation For 19 Stations
Module Conguration
Example of installation with station numbering gaps:
• A total of 19 stations are installed.
• The Base Module is installed in Bay 1 and uses Sta-
tions 1 through 4.
• A 6-Station Expansion Module is installed in Bays 2
and 3 using Stations 5 through 16.
• A 3-Station module is installed in Bay 4 and uses
stations numbered 17 through 19.
Because a 3-Station module is installed in Bay 4, only
the rst three station numbers assigned to that bay will
be used and the unused numbers will be “reserved” for
future use.
NOTE: During programming, the controller will
skip any unused station numbers, creating a gap
in station numbering.
