14
BASIC OPERATION

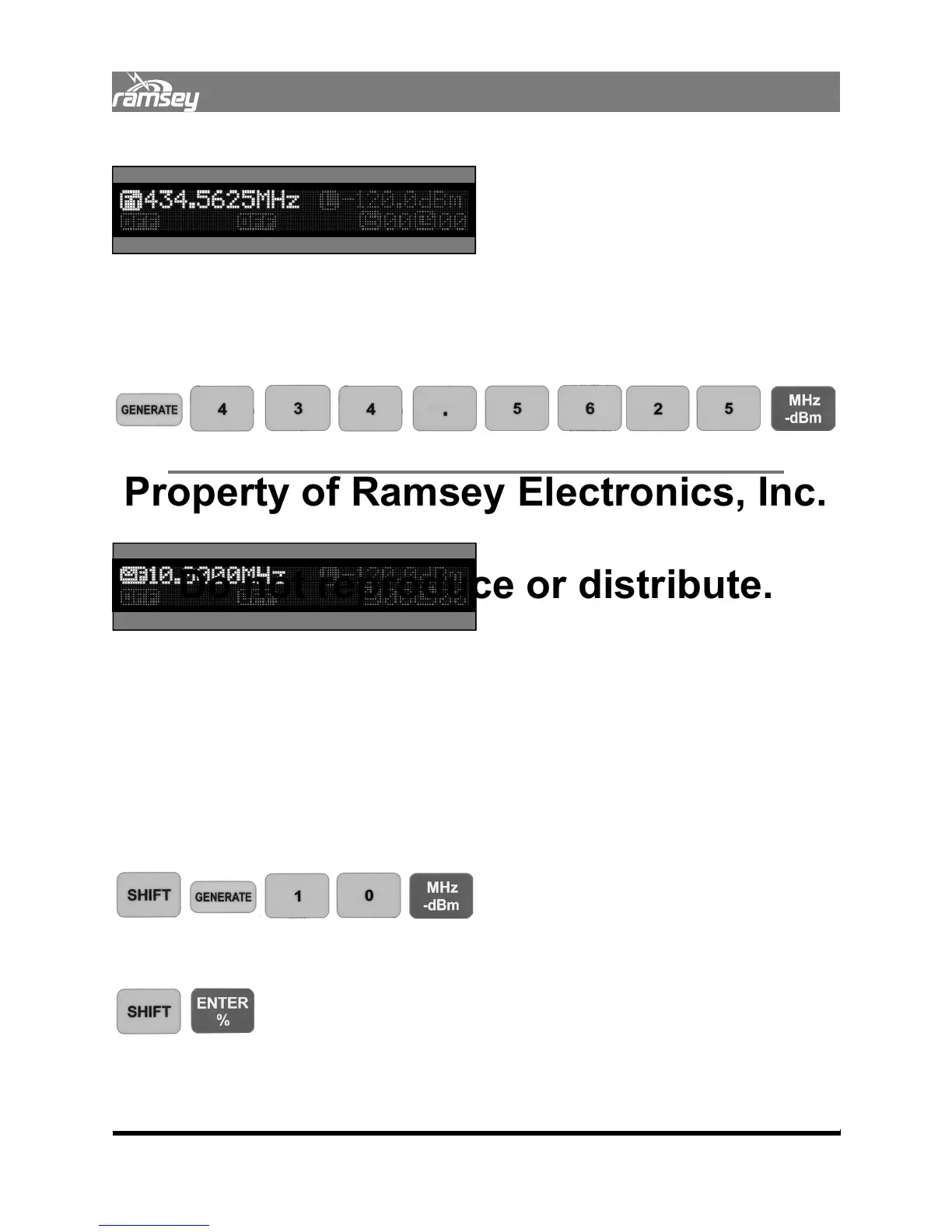

2.01 Generating a Frequency
The Frequency Range of the Generator is 100
kHz to 1 GHz in 1 Hz steps. To enter a new
generator frequency, press the GENERATE
key. The “Ft” Icon will flash.
Enter the frequency desired by using the numerical keypad. Use either the MHz/-dBm or
kHz/mV key to select your desired units. The COM3010 is now generating the frequency you
entered.
Example:
2.02 Setting Frequency Steps/Increments
At times you may want to step through fixed
increments of Generate Frequency, RF Level,
and Modulation. The Receiver function will
also work in this manner. To set the
INCREMENT for a given function press the
SHIFT key and then the proper FUNCTION key.
To Set Generator Frequency increment press the SHIFT key, then press the GENERATE key;
the “delta F” Icon will appear in the Generator Frequency field. It will also show the value that
is currently stored. Enter the new desired increment value using the numerical keypad. Press
the appropriate units button for step size desired. ( MHz/-dBm, kHz/mV, or Hz/uV ) You
may now use the UP or DOWN arrow keys to change the generate frequency by the desired
increment value.
Example:
If you want to escape in the middle of an entry, press
GENERATE TX Level
Modulation Seq/Reg
GENERATE TX Level
Modulation Seq/Reg
Property of Ramsey Electronics, Inc.
Do not reproduce or distribute.
