12
INTRODUCTION
1.02.03 Field Selection and Entry

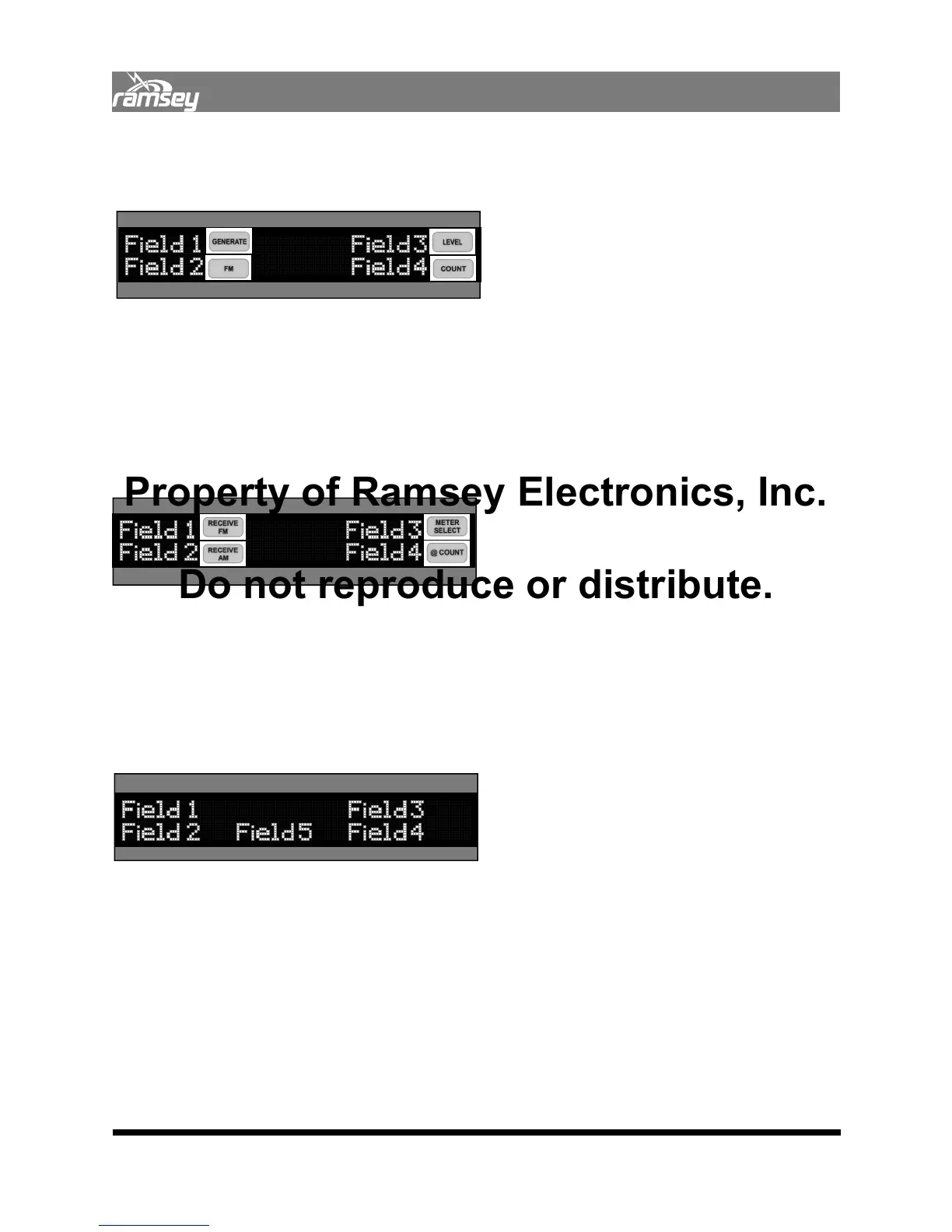

With one exception the GENERATE and RECEIVE displays are laid out in the same four quad-
rant format with each field’s (quadrants) access key remaining the same.
GENERATE screen:
Field 1 is accessed through the GENERATE key.
Field 2 is accessed through the FM key.
Field 3 is accessed through the LEVEL key.
Field 4 is accessed through the COUNT key.
In the Receive screen:
Field 1 is accessed through the RECEIVE FM key.
Field 2 is accessed through the RECEIVE AM key.
Field 3 is accessed through the METER SELECT key.
Field 4 is accessed through the @COUNT key.
The exception to this is the standard GENERATE screen which contains five fields instead of
four. Two fields appear on the upper line and three fields on the lower line. In this case the
access keys are as follows.
Field 1 or Generate Frequency is accessed through the GENERATE key.
Field 2 or Modulation field is accessed through the FM or AM keys.
Field 3 or Level is always accessed through the LEVEL key.
Field 4 or memories are accessed through the SEQ or REG keys.
Field 5 or tone field is accessed through the MOD keys EXT, INT, CTS and DCS.
GENERATE TX Level
Modulation Seq/Reg
RECEIVE Level Meters
Counter Freq Meters
GENERATE TX Level
Modulation Seq/Reg
Property of Ramsey Electronics, Inc.
Do not reproduce or distribute.
