Ramsey Electronics COM3010 - Receiving and Setting Receiver Frequency

25
BASIC OPERATION
2.07 Receiving a Frequency
Setting the receive frequency is performed in
a similar manner to setting the generator.
To receive a frequency, press RECEIVE FM, or
RECEIVE AM, followed by the frequency, fol-
lowed by KHz /mV or MHz / -dBm.

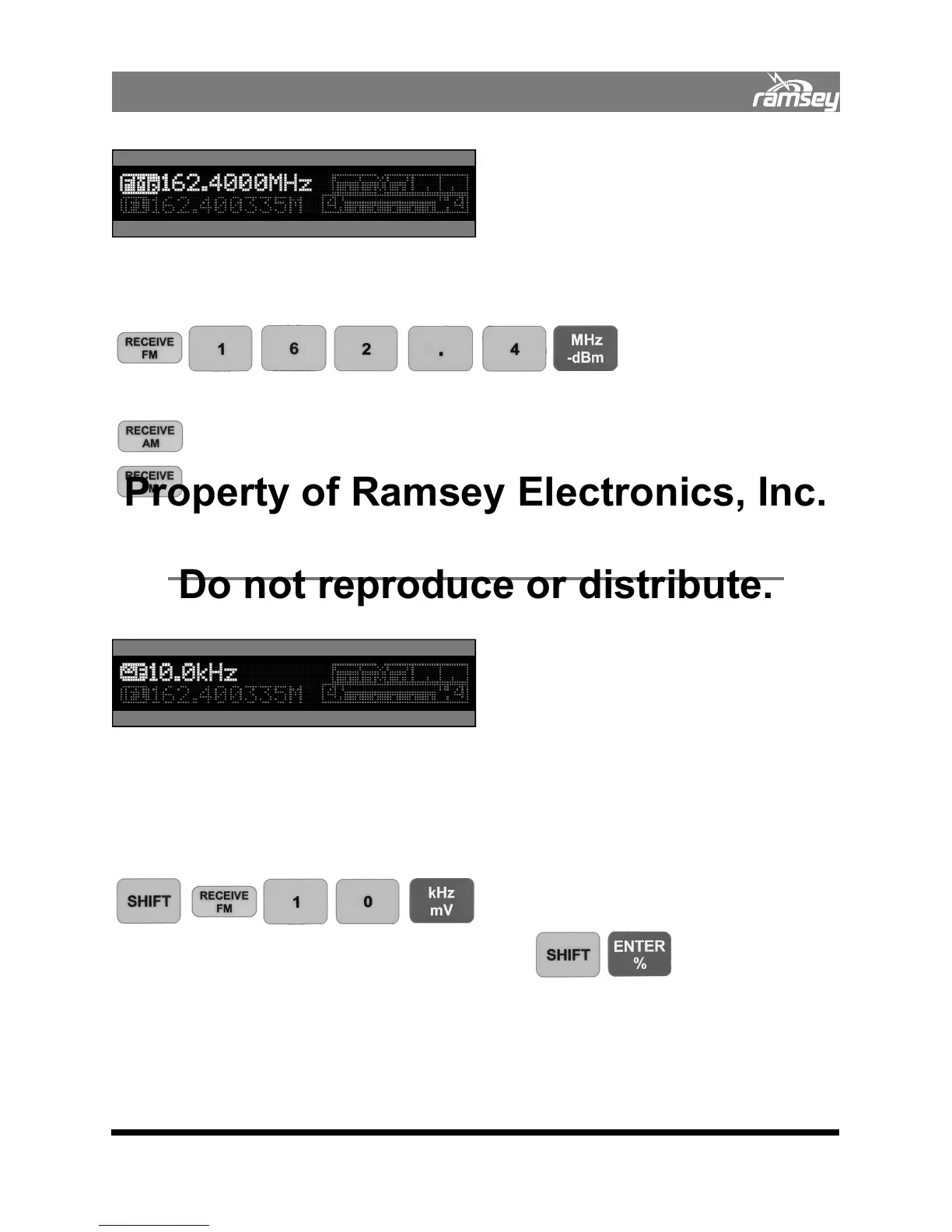

Example, to receive 162.400 MHz FM:
You can toggle the receive mode simply by pressing:
toggles current frequency to receive the AM component and,
toggles to the FM to receive that portion of it.
The metering will reflect the mode you have selected. Information on that is reserved for the
next few sections.
2.08 Setting a Receiver Step/Increment
Rather than having to move the cursor to a
specific digit to increment frequency, the
COM3010 employs increments for important
fields. To access an increment for the field of
interest, press SHIFT then the field such as
RECEIVE FM; the old increment value will appear
To enter a new increment for the generate field, any frequency from 1Hz to 100 MHz can be
used. Typically you would choose your channel spacing as the step size.
Example: To set the step increment for receive FM to 10 kHz.
If you want to escape in the middle of an entry, press
RECEIVE Level Meters
Counter Freq Meters
RECEIVE Level Meters
Counter Freq Meters
