Trying Out the Instrument
R&S
®
SMW200A
79Getting Started 1412.9220.02 ─ 21

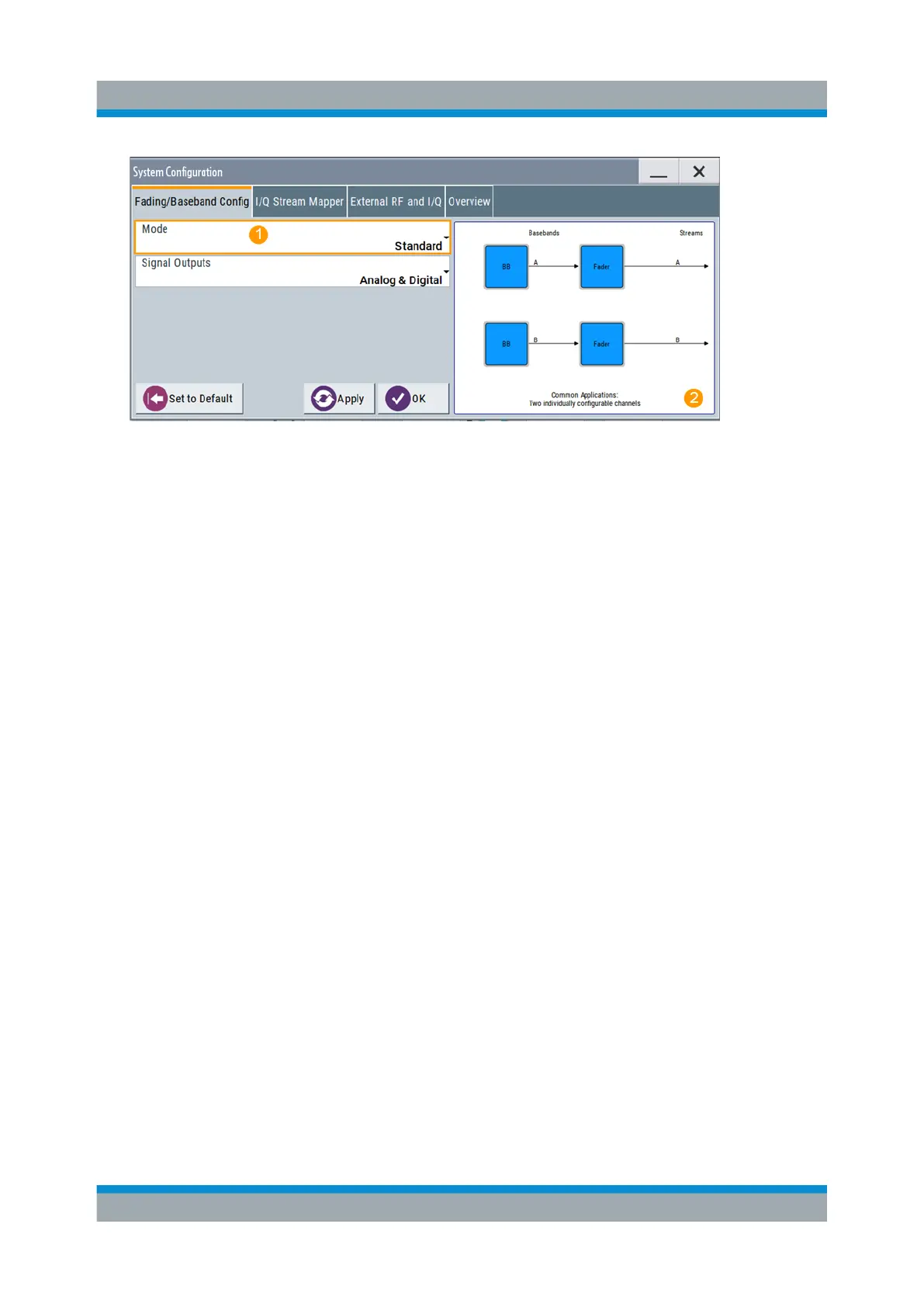

Figure 6-9: System Configuration in the default Standard Mode
1 = Standard or advanced mode; the last is required for configuration of complex LxMxN
MIMO scenarios
2 = Simplified preview diagram with a description of the common application for the particu-
lar configuration
2. Open "System Configuration > I/Q Stream Mapper" to obtain an overview of
the current distribution and mapping of the I/Q streams to the output connec-
tors, see also "To map the I/Q stream and define the output connector"
on page 65.
3. Open "System Configuration > External RF and I/Q Instruments" to gain infor-
mation on the current setup.
The tab comprises the additional settings provided to simplify the configura-
tion of connected instruments, like configuring the connectors, establishing a
connection to the instruments, or controlling these instruments.
In this test setup, no further instruments are connected.
To enable a 2x2 MIMO configuration (1x2x2 "Fading and Baseband Configu-
ration")
1. In the "System Configuration > Fading/Baseband Configuration" dialog, select
"Mode > Advanced" and enable the following settings:
a) "Entities (Users, Cells) > 1", "Basebands (Tx Antennas) > 2", "Streams (Rx
Antennas) > 2"
b) Select "BB Source Config > Coupled Sources"
c) Observe the signal routing displayed on the preview diagram. Does it
match with the expected signal routing?
d) Select "Apply" to confirm the configuration.
Using the System Configuration Capabilities for MIMO Setups
