Go to the System | Clock window and set the time and date

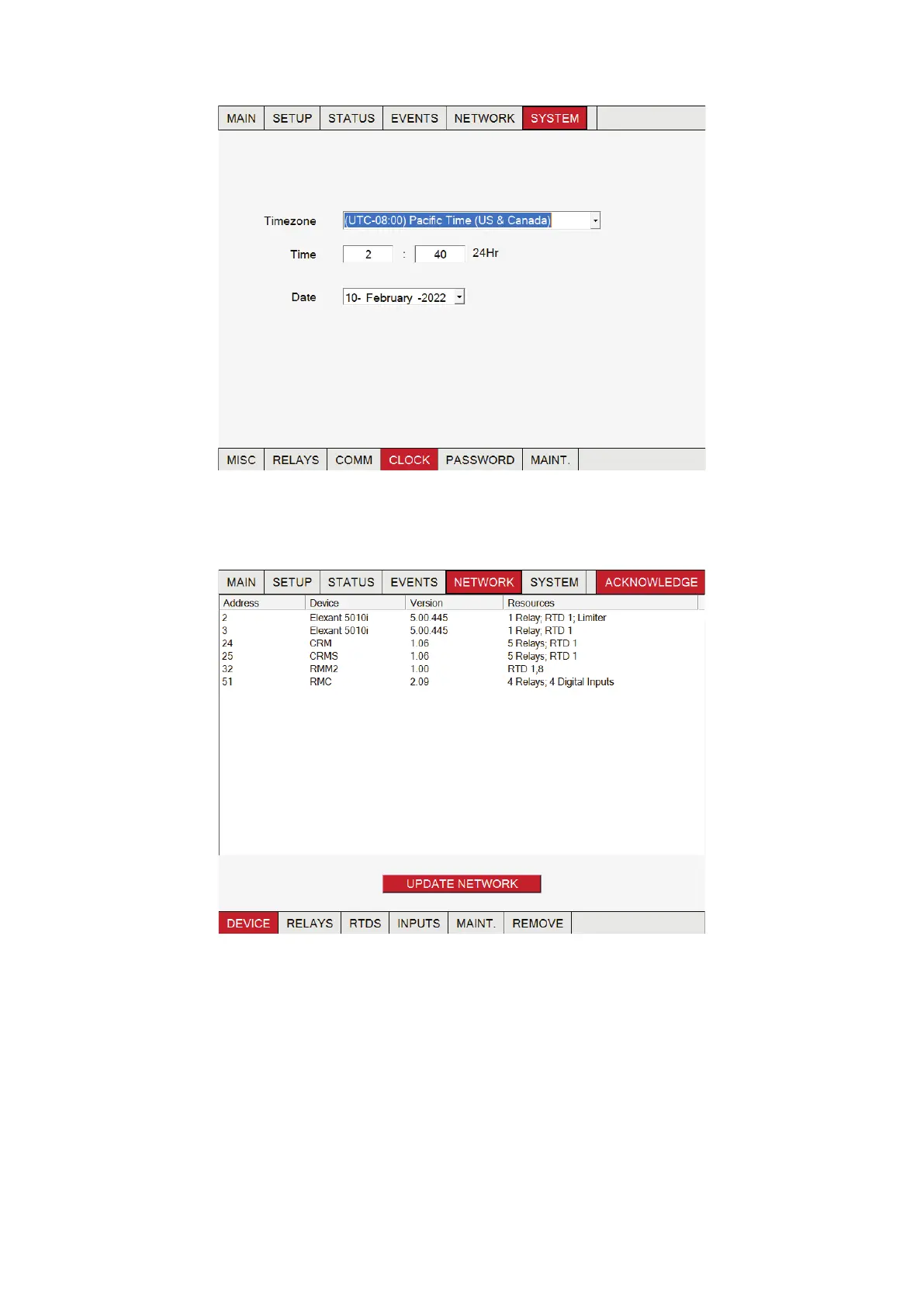

Fig. 2.3 System | Clock window
Go to the Network | Devices window
Fig. 2.4 Network | Devices window
Press “Update Network”. The NGC-UIT3 will scan all NGC-30-CRMs/-CRMSs, PLI modules, NGC-20 controllers, RMC modules, RMM-
DI modules and/or RMM2 modules into the network database.
Once the database exists, no further scanning is done. A device address is the number assigned via the rotary switches on the
NGC-30-CRM-CRMS, PLI, RMC, RMM-DI modules or RMM2 module circuit board. See the NGC-30 Installation Manual for more
information.
In this example the system found 6 devices. These are:
1. An Elexant 5010i with one sensor for control and limiter
2. An Elexant 5010i with one sensor
3. A CRM board with one RTD connected
4. A CRMS board with one RTD connected
5. RMM2 with two sensors connected
6. RMC module with 4 Relay outputs and 4 digital inputs
