Raychem nvent NGC-UIT3-EX User Manual

14 | nVent.com/RAYCHEM RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203


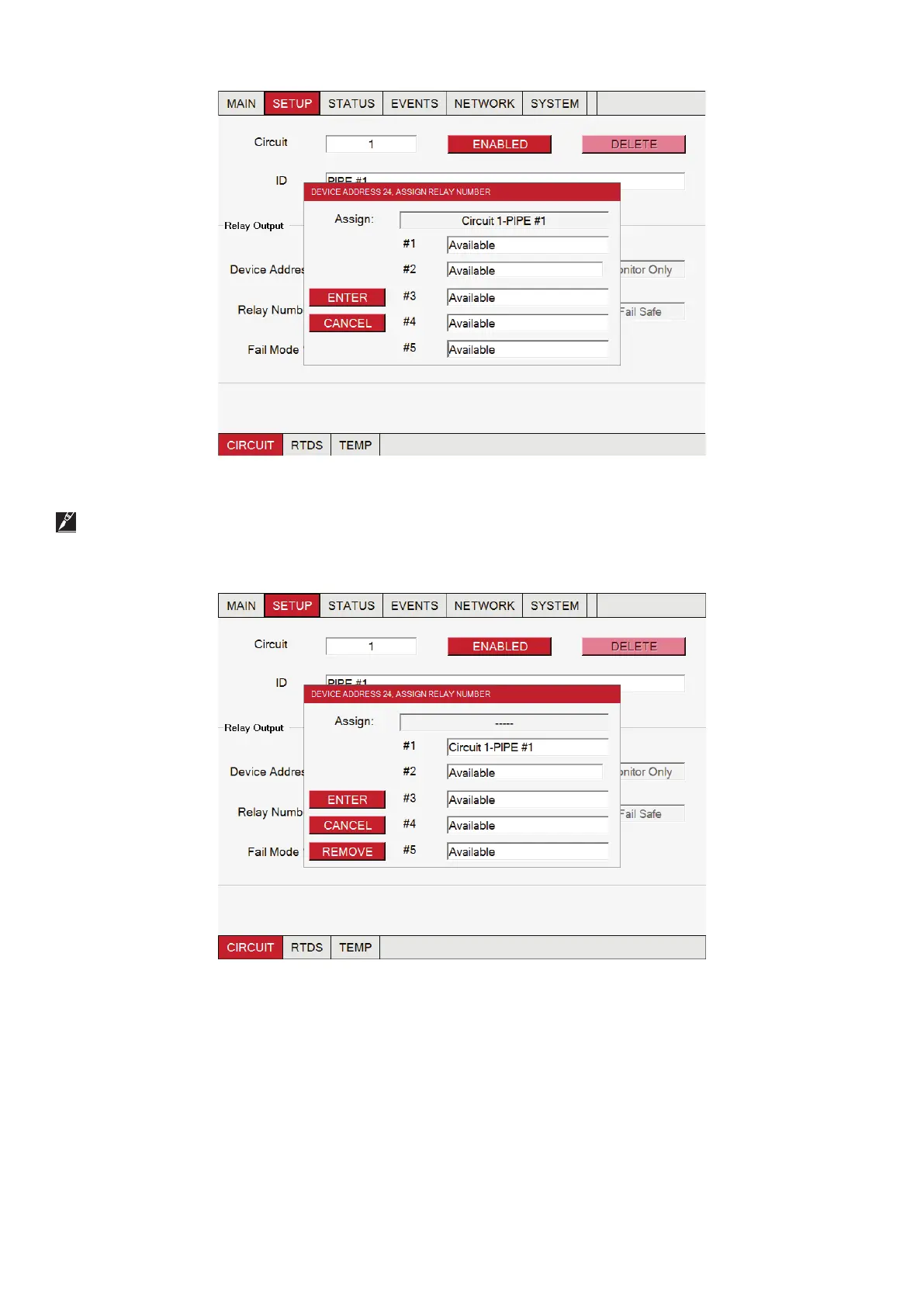

Fig. 2.9 Pop-up window prior to any Relay Assignment
• Press on the word “Available” to the right of #1 to assign Relay 1 as the output device for Circuit 1
 The window will always display which Relays are still available on this device for Circuit assignment.

Fig. 2.10 Device Address, Assign Relay Number window
• Press Enter

Raychem nvent NGC-UIT3-EX Specifications

General

Brand	Raychem
Model	nvent NGC-UIT3-EX
Category	Controller
Language	English
