Raychem nvent NGC-UIT3-EX User Manual

nVent.com/RAYCHEM | 15RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203


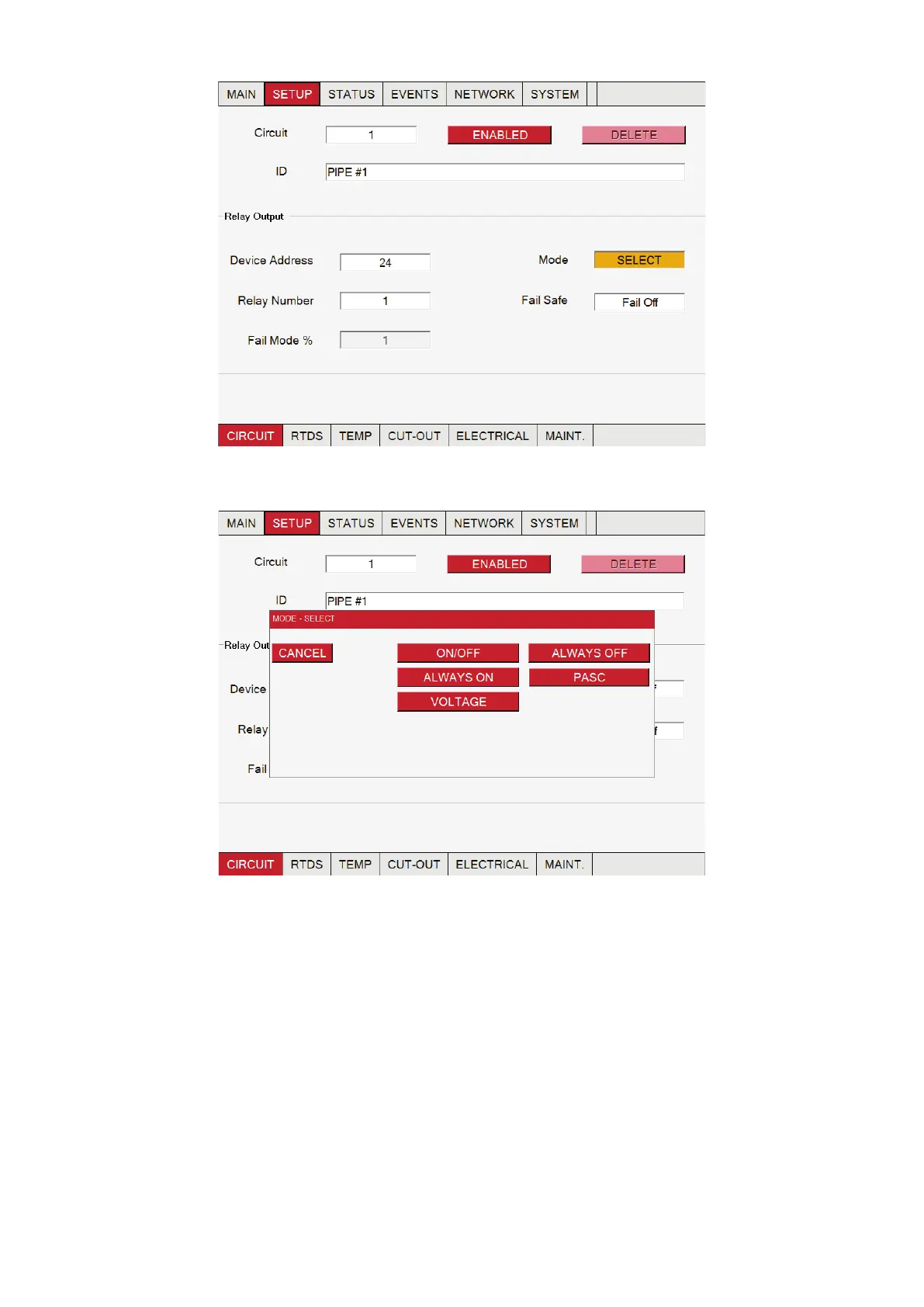

Fig. 2.11 Mode window pop-up

Fig. 2.12 Mode - Select window
At the 
• This pop-up window lets you select a Circuit’s basic operating mode. The NGC-30-CRM, used in this example, has the following
Control modes available: On/Off, Always On, Always Off, PASC and Voltage
• The On/Off mode is a simple setpoint/dead band operation
• Press On/Off to select this control mode and return to the Setup Circuit window

Raychem nvent NGC-UIT3-EX Specifications

General

Brand	Raychem
Model	nvent NGC-UIT3-EX
Category	Controller
Language	English
