158 E-Series Networked Display Reference Manual

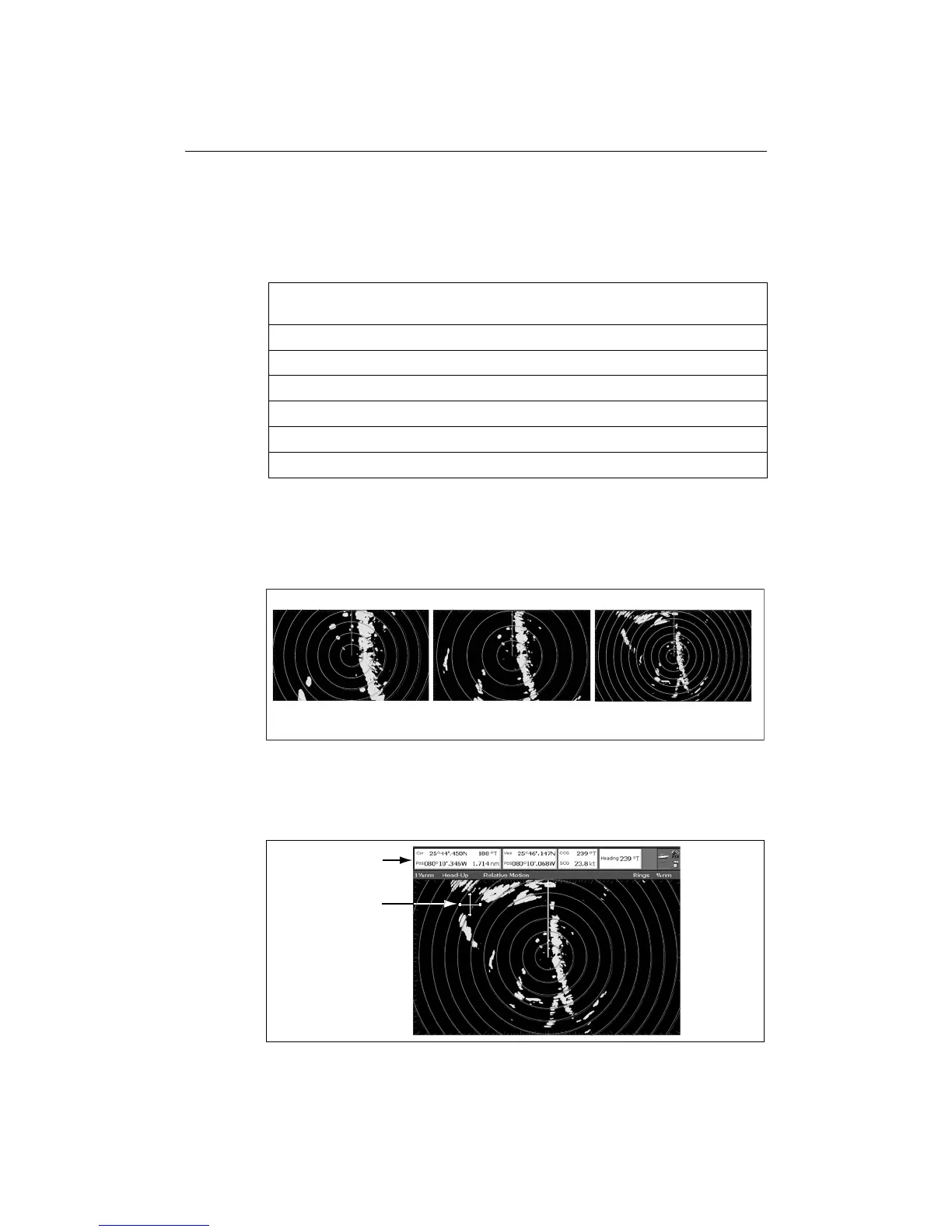

7.9 Measuring distances, ranges and bearings

When you are using the radar application, you can measure distances, ranges and

bearings in a variety of ways. These options are detailed in the table below:

... Using the range rings

Use the range rings to gauge the approximate distances between points. Range rings

are concentric circles displayed on the screen and centred from your boat at pre-set

distances. The number and spacing of the rings changes as you range in and out.

... Using the cursor

To measure the bearing and range from your boat to a specified target, move the

cursor to the appropriate position on the screen.

Note:

If cursor data is not shown, refer to page 259.

Functions

Distances

between points

Range from

your boat

Bearings

Range Rings Yes (approx.) Yes (approx.) -

Cursor - Yes Yes

Variable Range Markers (VRMs) - Yes -

Electronic Bearing Lines (EBLs) - - Yes

Floating VRMs Yes - -

Floating EBLs Yes

Range -

Range rings -

nm apart

Range -

Range rings -

nm apart

Range - 1

Range rings -

nm apart

D8407_1

e.g.

Bearing and range from

your vessel to cursor

D8402_1

Cursor
