Transformer Profile
(Header)
Measurement 1
(1. Jun 2010)
Measurement 2
(1. Jul 2010)
Measurement 3
(1. Aug 2010)
Load it
Do
measurement
Measurement 4
(1. Sept 2010)
Measurement 4
(1. Sept 2010)
Save it

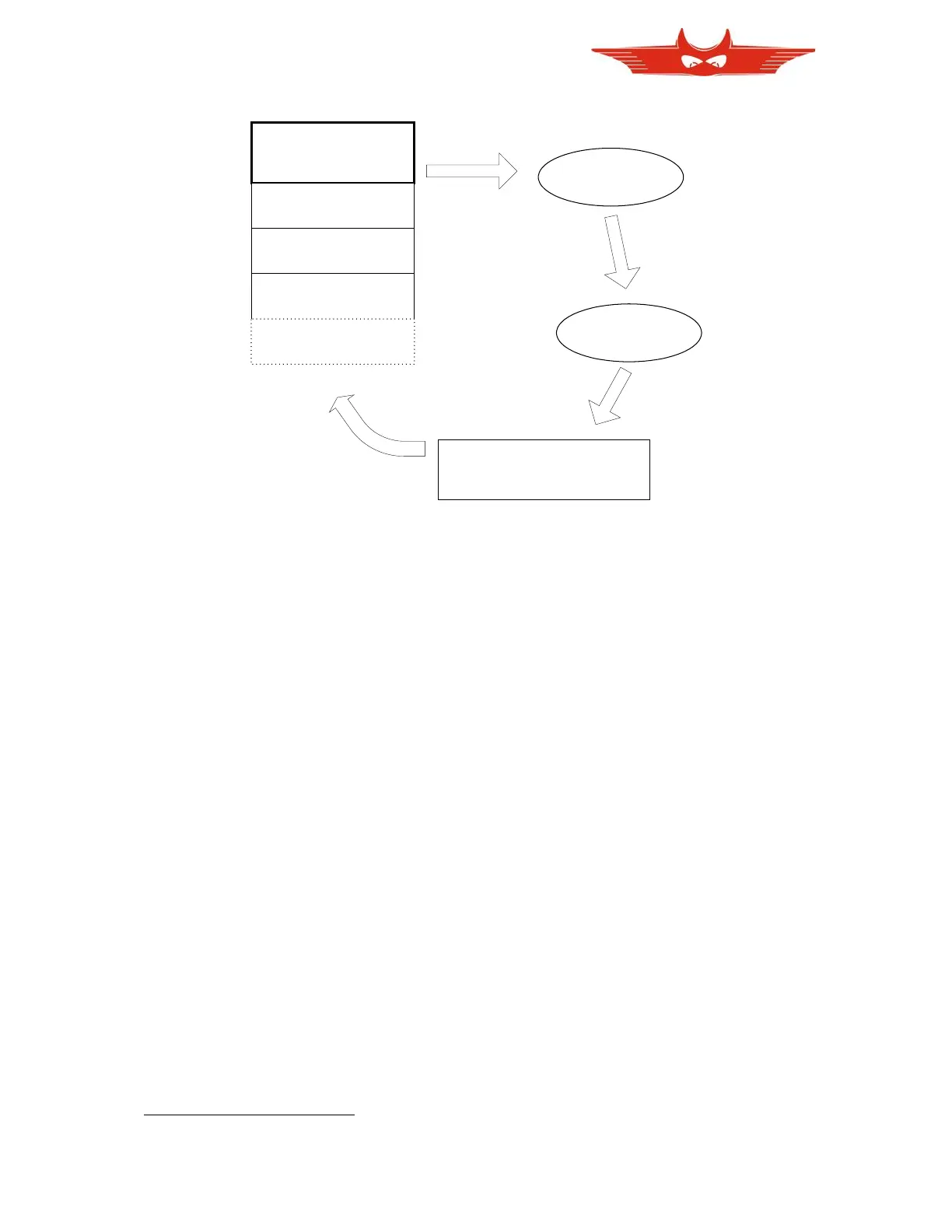

This shows a Transformer that has been created and measured for the first time on Jun 1
th
2010. Profile and Measurement was saved by touching the ‘save’ button in Main Screen.
Then, this transformer was measured again, every 1
th
of a month. This means, that the
transformer was loaded from archive again
1
, measurement was done and the measurement
was attached by touching the ‘save’ button in main screen.
In our example, now it is the 1
th
of September. And again, the transformer is loaded and
measurement is done. This means, that a new measurement data block is created. And it is
saved and attached by touching ‘save’.
1
Please see chapter ’8.3.2 Load from Archive’ or ’8.5 Archive’ for details
