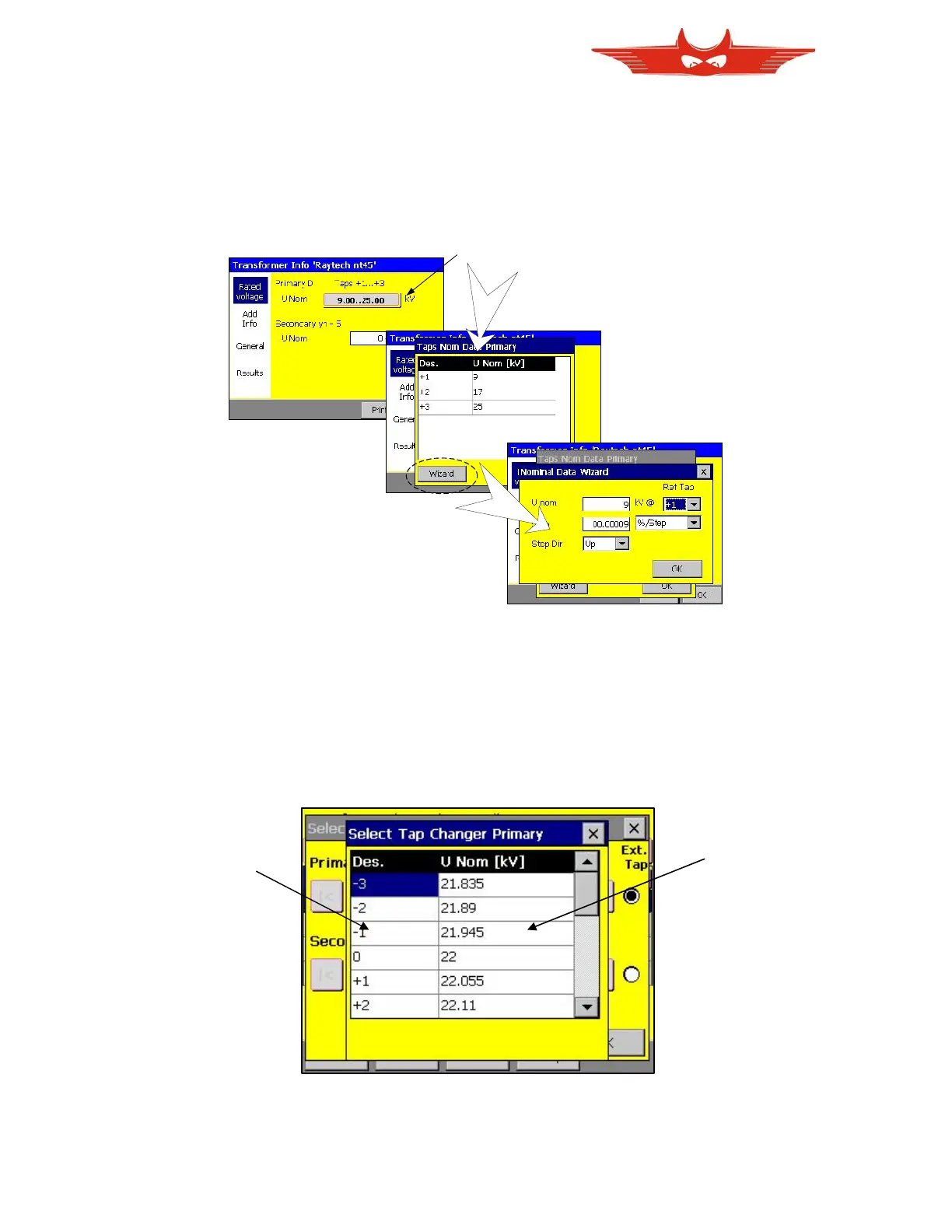

8.4.1 Enter Tap Changer Data by Wizard
Touch in ‘Info’ Menu on the button by sides “U Nom” to enter tap changer data manually or
by wizard.
tipp here
tipp here
8.4.2 Enter Tap Changer Data manually
You can anytime enter corresponding voltages to taps manually. You may use this for
instance when your tap steps are not linear. Just push on the field you like to edit. The editor
works for designator and voltage.
Touch here for
designator
Touch here for
voltage
