MarathonSeriesFA/FR 7
3.4Dimensions


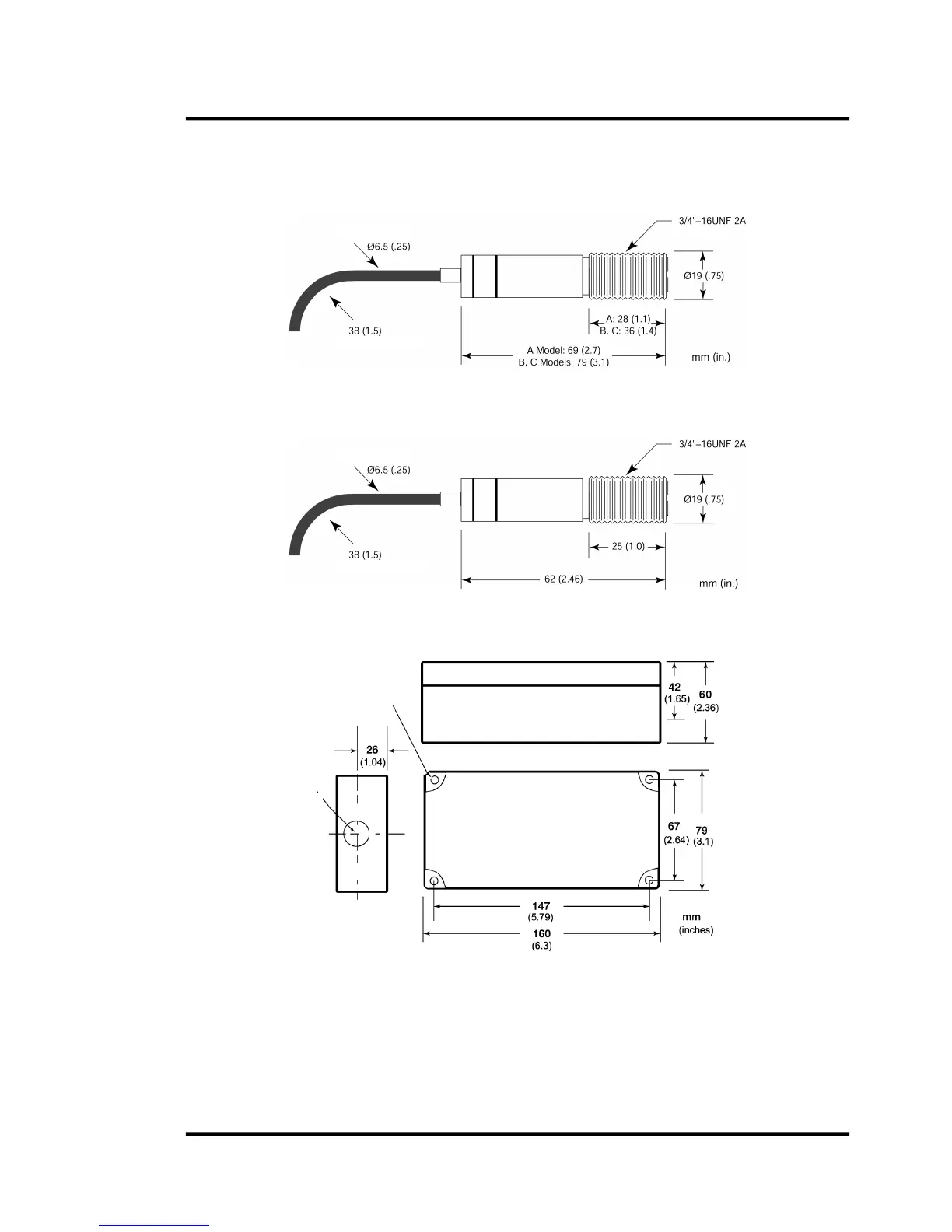

Figure2:DimensionsofOpticalHead(FAModels)

Figure3:DimensionsofOpticalHead(FRModels)

Figure4:DimensionsofElectronicsHousing
Fiber Optic Cable
min. bend radius
Fiber Optic Cable
min. bend radius
Mounting hole ∅ 5 mm (0.188)
Max. fastener head 8 mm
(
0.31
)
Hole diameter: 21 mm (0.83)
