11.4SignalReduction(FRModels)
Thefollowingfiguresshoweachsensormodel’stypicalpercentageofallowedsignalreductionatall
temperatures.Refertothesegraphstoestimatewhatpercentageoftargetareamustbevisibletothe
sensorattemperaturesbelowtheminimumtemperature(95%attenuation).


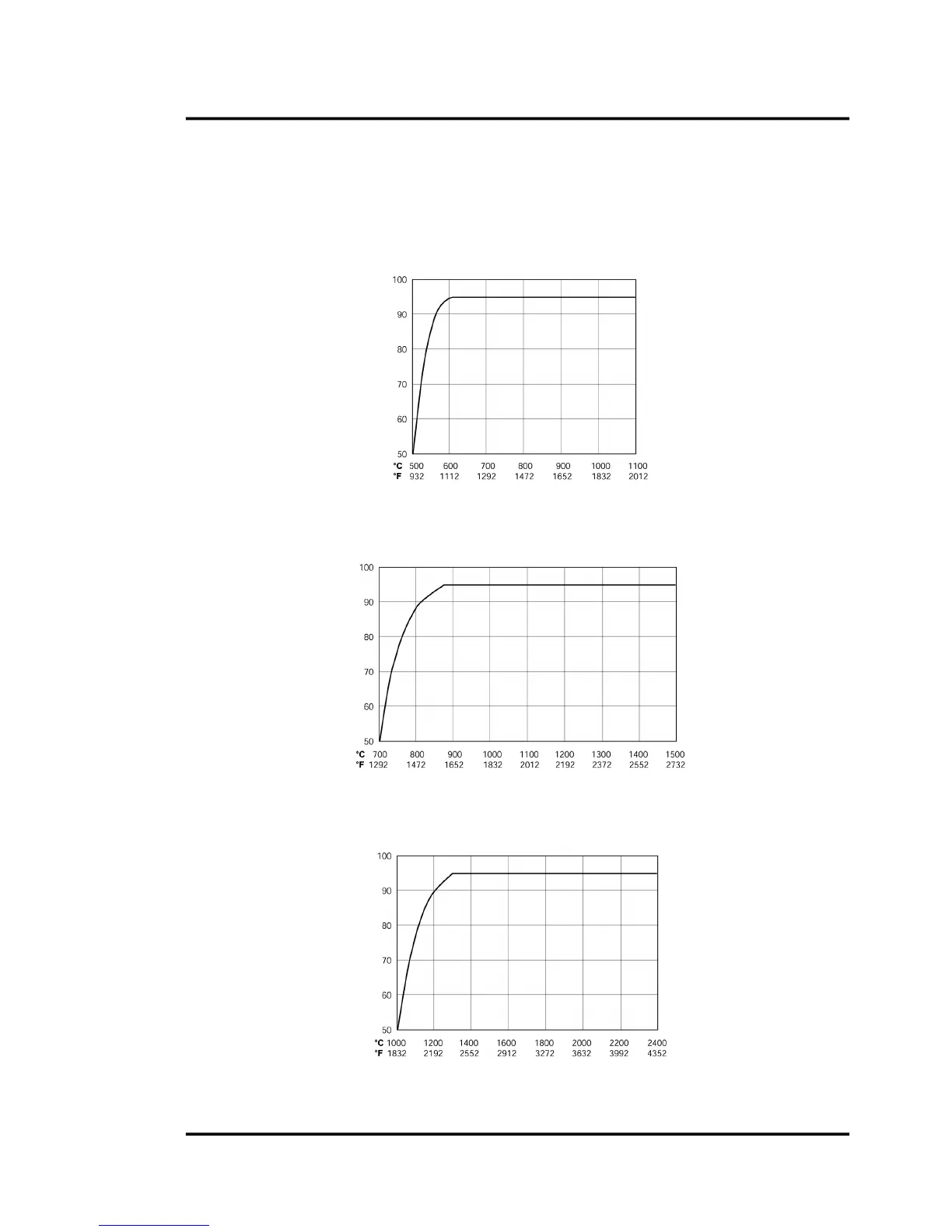

Figure41:TypicalPercentageofAllowedSignalReduction(FR1AModels)

Figure42:TypicalPercentageofAllowedSignalReduction(FR1B Models)

Figure43:TypicalPercentageofAllowedSignalReduction(FR1C Models)
Target Temperature
Maximum Allowed Si
g
nal Reduction
[
%
]
Target Temperature
Maximum Allowed Si
g
nal Reduction
[
%
]
Target Temperature
Maximum Allowed Si
g
nal Reduction
[
%
]
