RayTek MARATHON FA - Fitting System

Accessories
36 MarathonSeriesFA/FR
8.4FittingSystem
Flexibleaccessoryselectionsallowyoutopickandchoosetheaccessoriesyouneed.


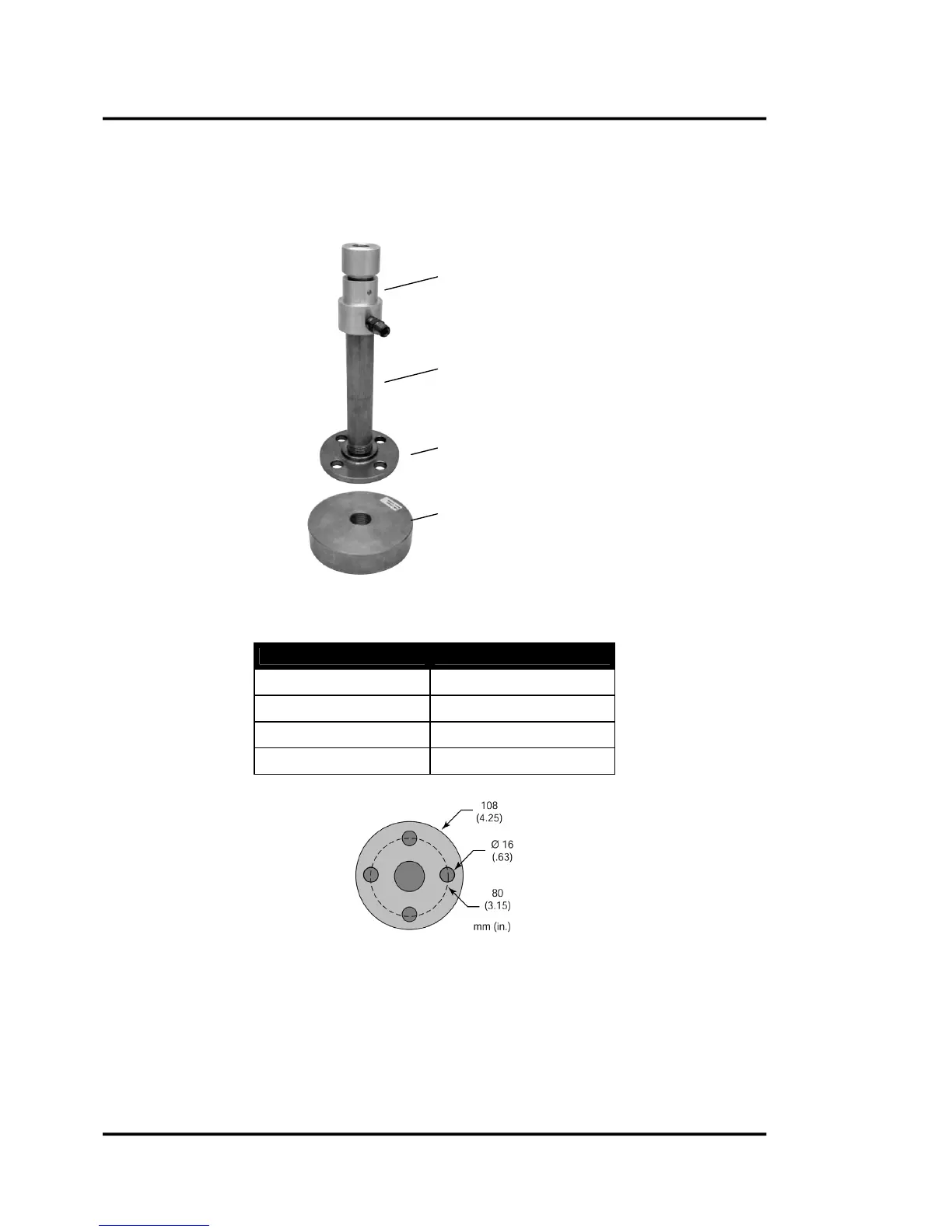

Figure33:FlexibleFittingSystem
Part number Description
XXXFORFQP Item 1
XXXFORFAP Item 1 + Item 2
XXXFORFMF Item 1 + Item 2 + Item 3
XXXFORFMC Item 1 + Item 2 + Item 4

Figure34:Dimensionfor4‐BoltMountingFlange
Item 1
Stainless steel air purge with quick release fitting
and Sapphire window
Air connector: ¼“ NPT
Item 2
Stainless steel tube 203 mm (8 in)
Item 3
Stainless steel
4-bolt mounting flange
Item 4
Stainless steel
gravity-held mounting base
