SensorLocation
16 MarathonSeriesFA/FR


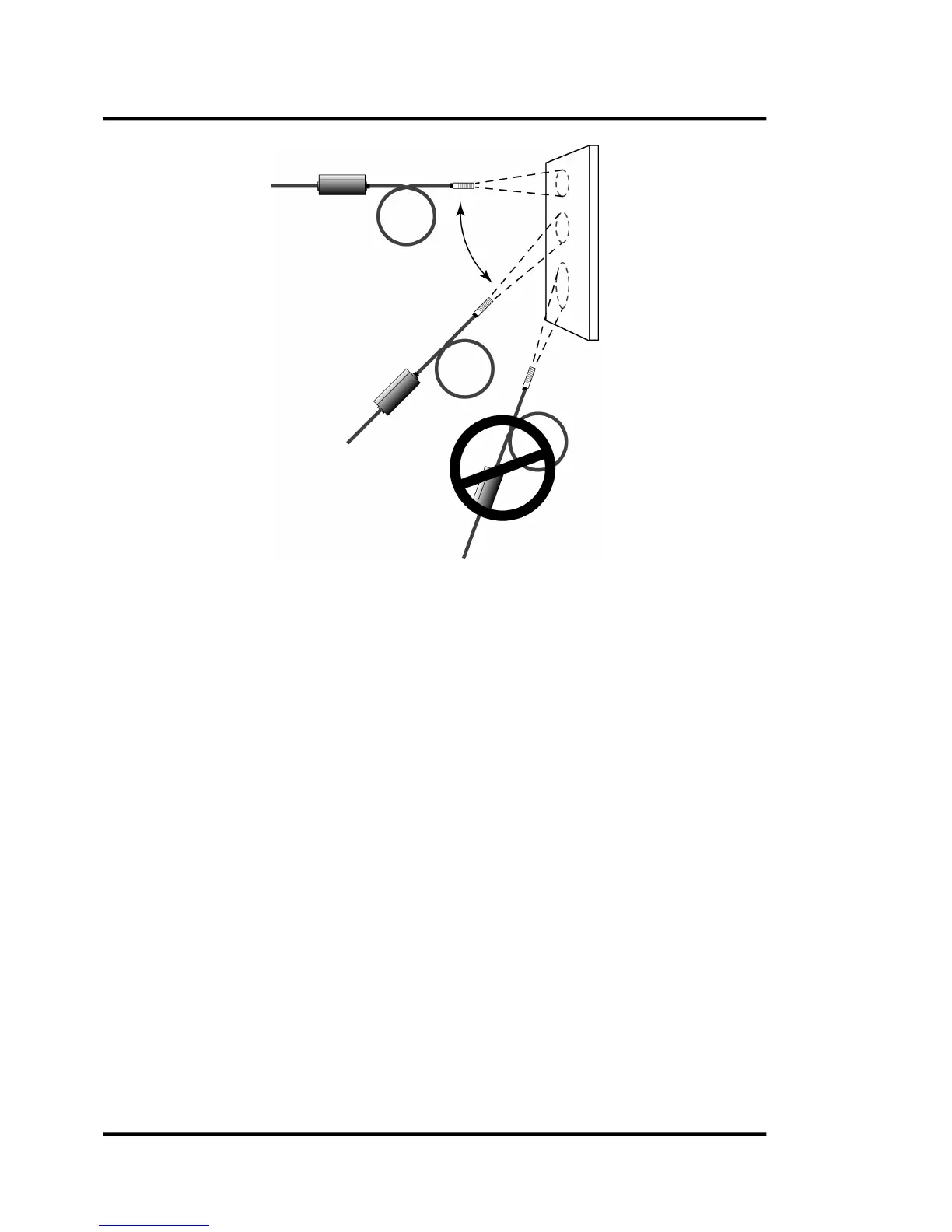

Figure12:AcceptableSensorViewingAngles

Best
90° to target
Good
1-Color Mode: 30° to 90° to target
2-Color Mode: 45° to 90° to target
Bad
1-Color Mode: 0° to 30° to target
2-Color Mode: 0° to 45° to target
A
cceptable
Angles
