WEAPON/EPIC-W OPERATION GUIDE
6
RECORD AND
MONITOR AUDIO
AUDIO OVERVIEW
The BRAIN has two (2) integrated dual channel digital stereo microphones that record uncompressed audio at 24-bit
48 kHz. These microphones offer you the ability to capture scratch-track audio.
The DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, and DSMC2 REDVOLT Expander each feature a built-in
headphone jack, so you can hear the audio during playback via headphones. Together, the integrated microphones
and headphone jack offer an audio solution for run-and-gun shoots.
Additional audio input/output options are determined by the attached port expander. For more information about the
ports on each expander, go to "Input/Output Connectors" on page215.
The camera can record up to four (4) discrete stereo channels of uncompressed 24-bit, 48 KHz audio.
Input signals are routed via a high-quality pre-amplifier to achieve the desired recording levels and maximize dynamic
range.
Audio data is synchronized with video and timecode and embedded in the R3D
®
file. You can export audio data from
REDCINE-X PRO
®
as separate audio files.
Audio is also embedded in any HD-SDI and HDMI
®
output connected to the camera.
SET UP AUDIO
To set up audio, go to Menu > Settings > Audio. To adjust the input, pre-amplifier, and headphone settings, select
Control. To adjust the mix settings, select Mix.

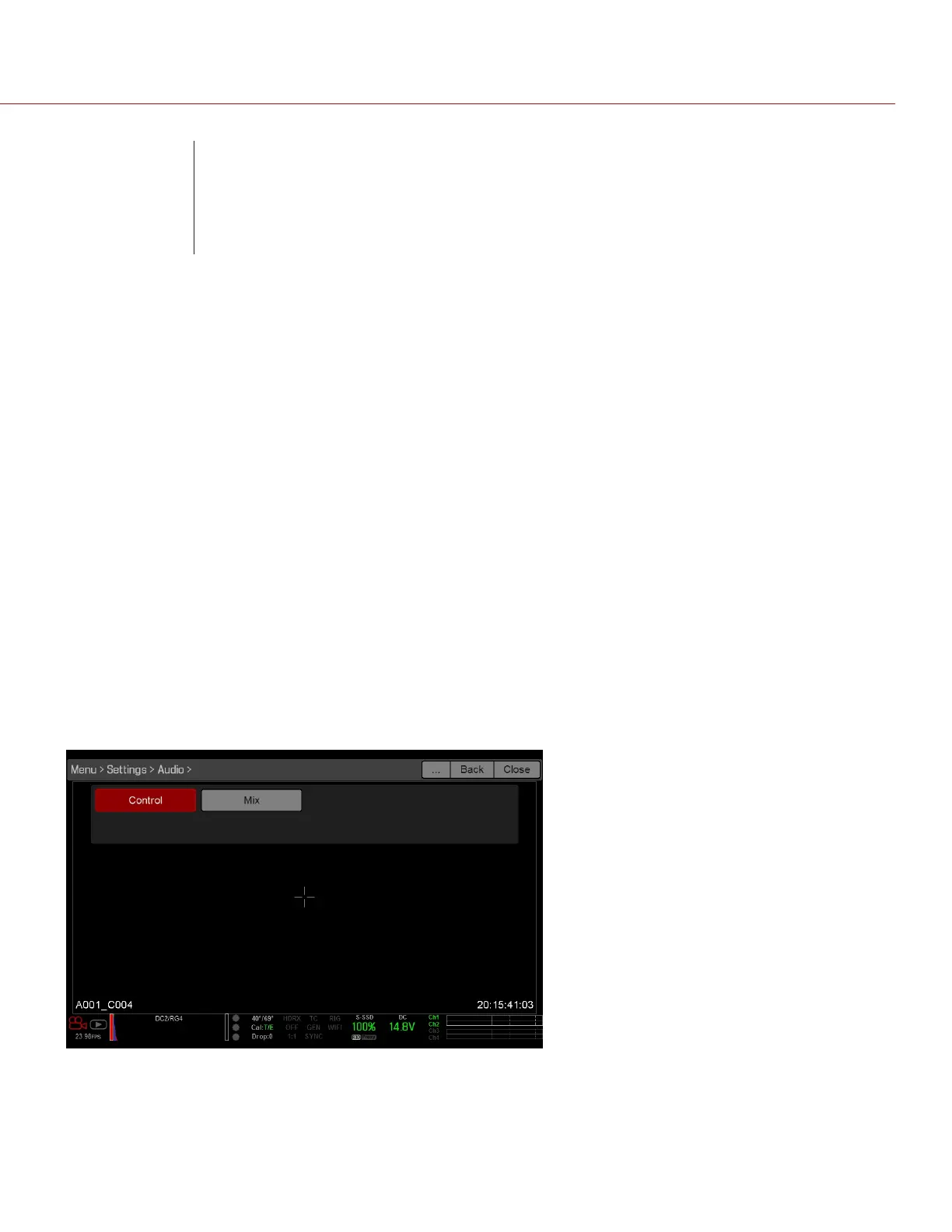

Figure: Audio Menu
