Red Dragon WEAPON/EPIC-W - Upper Status Row (Basic Menu)

UPPER STATUS ROW (BASIC MENU)
The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status Row
is underlined with a red bar. The Upper Status Row is also known as the Basic Menu.

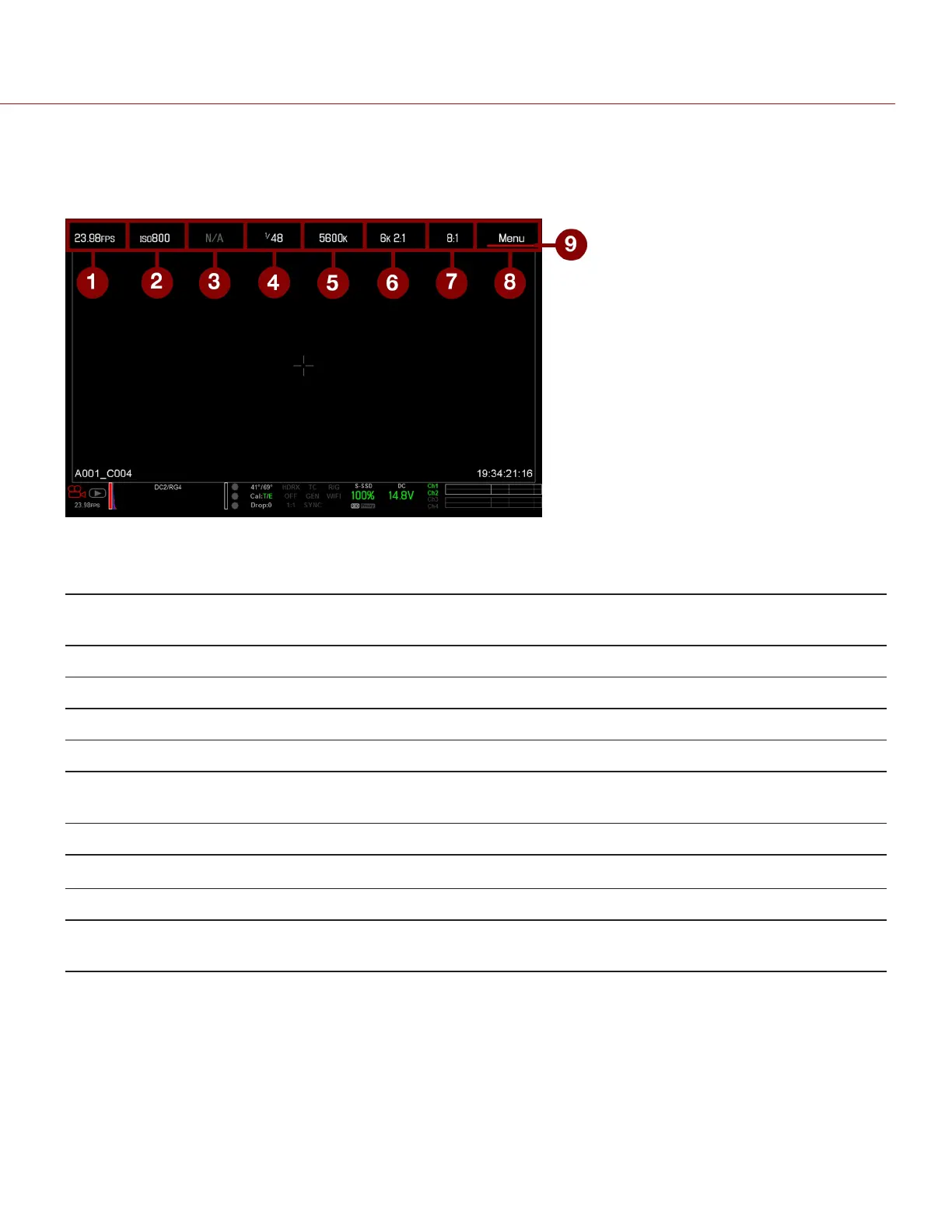

Figure: Upper Status Row
The Upper Status Row includes the following GUI elements:
# ITEM DESCRIPTION FOR MORE INFORMATION, GO
TO...
1 Frame Rate (fps) Recording frame rate "Frame Rate" on page94
2 ISO Camera sensitivity "ISO" on page88
3 Aperture Lens aperture (F stop) information "Aperture" on page56
4 Exposure (Shutter) Integration time or shutter angle "Exposure" on page95
5 Color
Temperature
White balance and Tint "Color Temperature" on page93
6 Resolution Record resolution "Format" on page97
7 REDCODE
®
REDCODE compression setting "REDCODE" on page57
8 Menu Access advanced settings "Advanced Menus" on page75
9 Cursor Indicates currently selected Upper Status Row
element
N/A
