DSMC2 REDVOLT EXPANDER

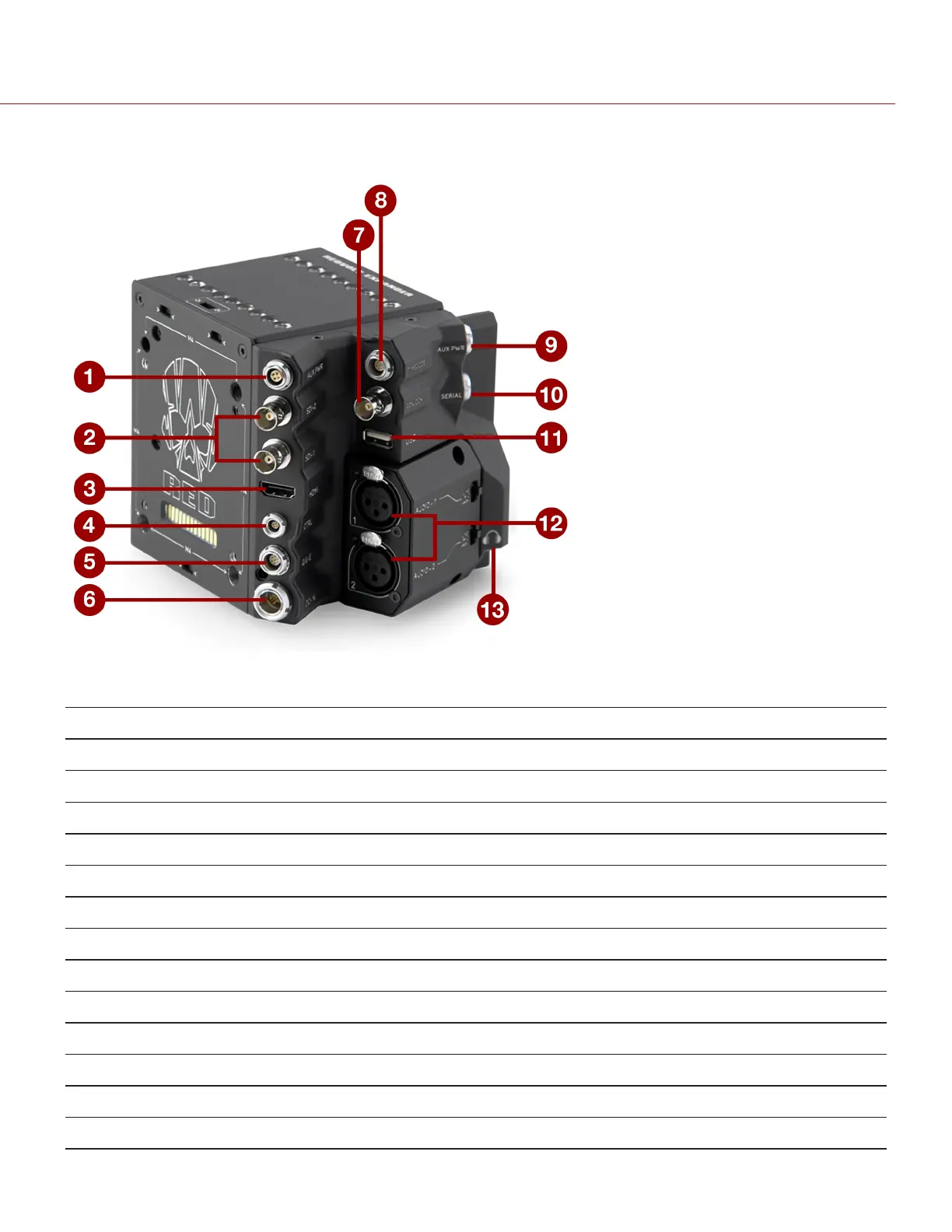

Figure: DSMC2 REDVOLT Expander
# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 AUX PWR 4-pin 0B LEMO "AUX Power (4-Pin LEMO)" on page239
2 SDI 1 and 2 BNC "3G-SDI (HD-SDI) Out" on page221
3 HDMI HDMI 1.2, Type A "HDMI Out" on page222
4 CTRL 4-pin 00B LEMO "CTRL (RS232 Control)" on page227
5 GIG-E 9-pin 0B LEMO "GIG-E (Ethernet)" on page232
6 DC IN 6-pin 1B LEMO "DC IN (Power Input)" on page235
7 GENLOCK BNC "Genlock" on page230
8 TIMECODE 5-pin 0B LEMO "Timecode" on page231
9 AUX PWR 2-pin 0B LEMO "AUX Power 2-Pin LEMO, 3.0A" on page237
10 SERIAL 7-pin 0B LEMO "Serial (RS232 Control)" on page228
11 USB USB 2.0 Type A (power only) "USB Power" on page240
12 AUDIO 1 and 2 3-pin full-size XLR "Audio 1 and 2" on page233
13 Headphone Jack 3.5mm stereo "Headphone" on page234
