Red Dragon WEAPON/EPIC-W - GIG-E (ETHERNET)

GIG-E (ETHERNET)
The following expanders feature a GIG-E connector.
DSMC2 Jetpack-SDI Expander
DSMC2 REDVOLT Expander
The GIG-E 9-pin 0B LEMO connector provides a 1000BASE-T (IEEE 802.3ab) gigabit Ethernet connection for remote
camera setup, master/slave camera communication, and external metadata ingest. Since the GIG-E connector does
not support slower speeds (10BASE-T and 100BASE-T), ensure that any device you connect to supports 1000BASE-
T.

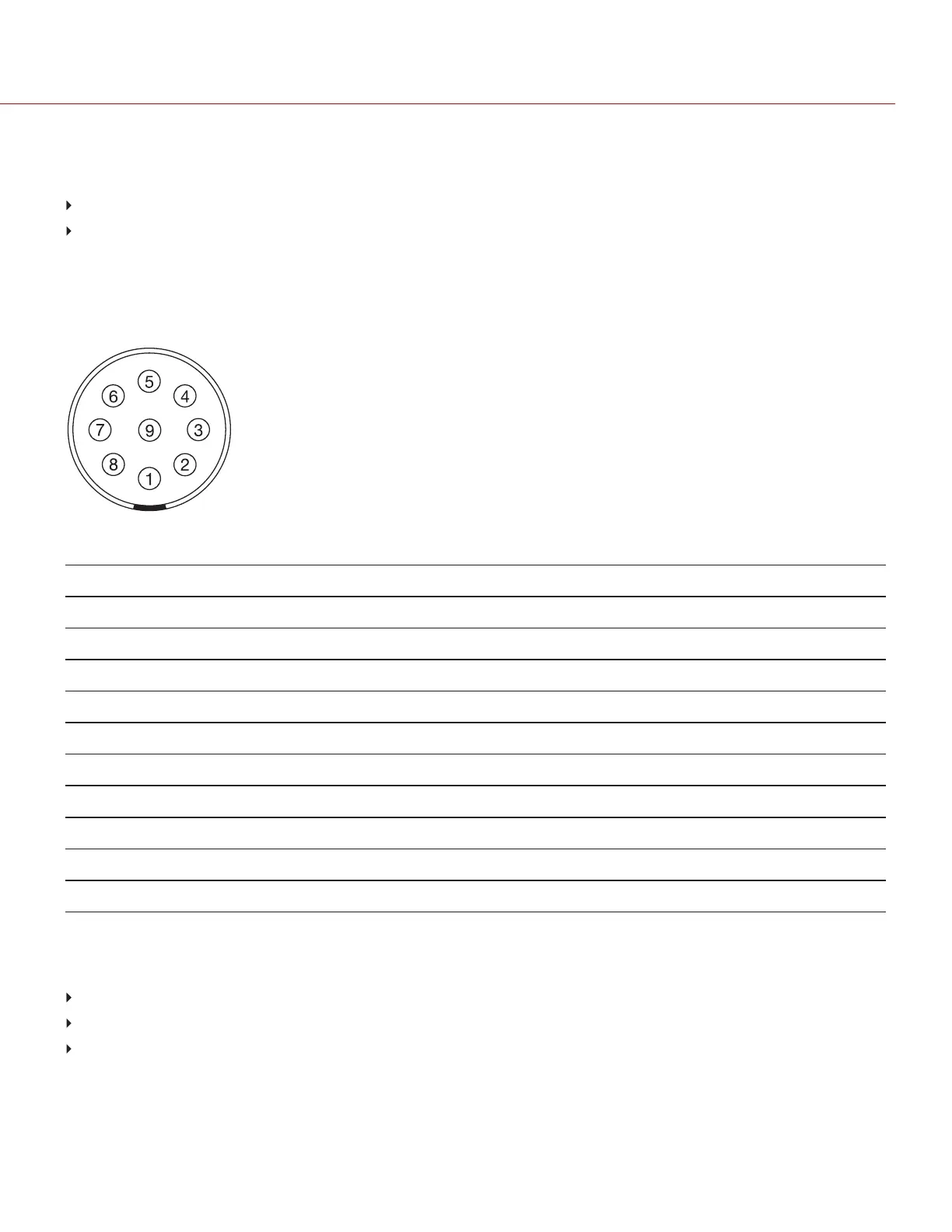

Figure: Front Face of the GIG-E Connector (Looking at the Camera)
9-PIN 0B LEMO GIG-E CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 BI_DC + Data pair C+ N/A
2 BI_DC - Data pair C- N/A
3 BI_DD+ Data pair D+ N/A
4 BI_DD - Data pair D- N/A
5 BI_DA- Data pair A- N/A
6 BI_DA+ Data pair A+ N/A
7 BI_DB+ Data pair B+ N/A
8 BI_DB- Data pair B- N/A
9 N/A Do not connect N/A
NOTE: Mating connector is FGG.0B.309.CLAD.
COMPATIBLE CABLES
790-0159: RED GIG-E Straight-to-CAT5E Ethernet Cable (9')
790-0557: RED GIG-E Right-to-CAT5E Ethernet Cable (9')
790-0163: Master/Slave Gig-E Cable (4')
