EXPANDERS

NOTE: Only one (1) expander module can be used at a time.

RED offers the following DSMC2 expanders:

Item Part Number

DSMC2 Base Expander 720-0033

DSMC2 REDVOLT Expander 720-0040

DSMC2 Jetpack Expander 720-0039

DSMC2 Jetpack-SDI Expander 720-0048

DSMC2 V-Lock I/O Expander 720-0045

DSMC2 BASE EXPANDER

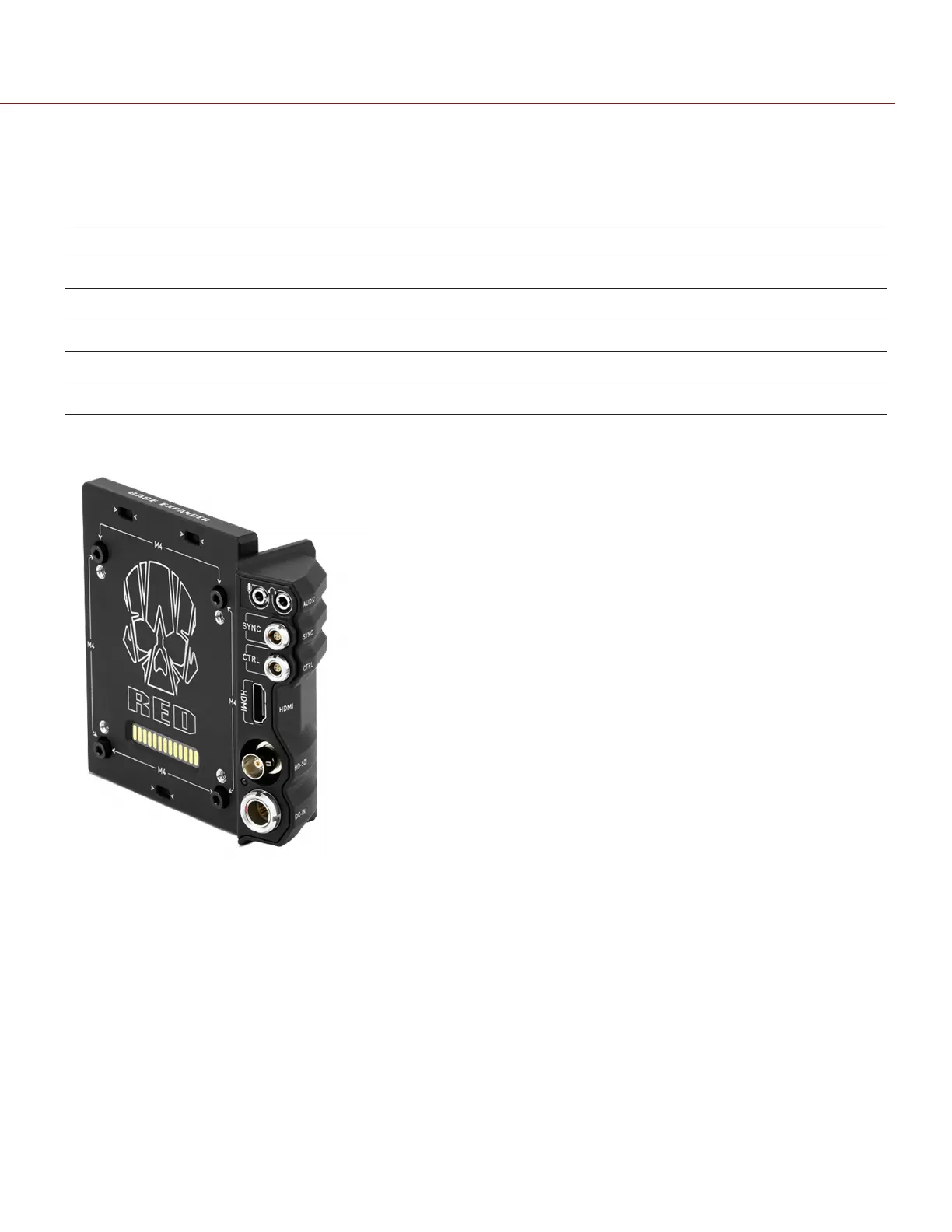

Figure: DSMC2 Base Expander

The DSMC2 Base Expander is an ideal connector module for general input/output (I/O) needs. Manufactured from

lightweight and durable magnesium, this low-profile module mounts directly to the BRAIN and offers interface

connections for power (DC IN), HDMI, 3G-SDI (HD-SDI), CTRL and SYNC ports (for Timecode and Genlock), as well

as a 3.5mm microphone input and a 3.5mm line-level headphone out.

The DSMC2 Base Expander also offers rear-mounting support for DSMC2-compatible battery and power modules,

such as the DSMC2 REDVOLT

XL Module. The low profile DSMC2 Base Expander offers a variety of connectors and

is ideal for run-and-gun and independent shooters.

NOTE: Only one (1) expander module can be used at a time.
