DSMC2 JETPACK-SDI EXPANDER

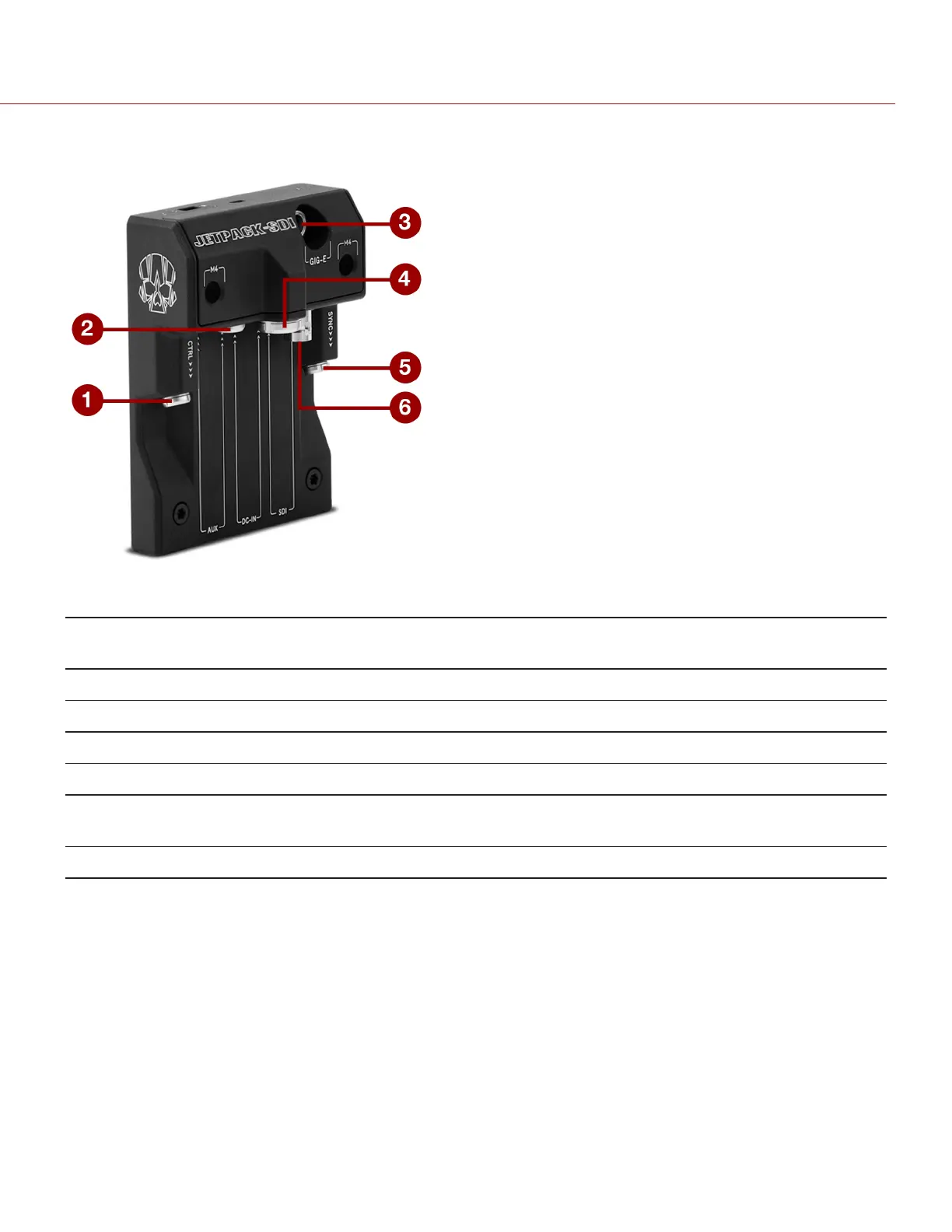

Figure: DSMC2 Jetpack-SDI Expander
# CONNECTOR CONNECTOR
TYPE
FOR MORE INFORMATION, GO TO...
1 CTRL 4-pin 00B LEMO "CTRL (RS232 Control)" on page227
2 AUX 2-pin 0B LEMO "AUX Power 2-Pin LEMO, 1.5A" on page238
3 GIG-E 9-pin 0B LEMO "GIG-E (Ethernet)" on page232
4 DC IN 6-pin 1B LEMO "DC IN (Power Input)" on page235
5 SYNC 4-pin 00B LEMO "SYNC (Video Sync In) with Contact Closure Style Trigger Input" on
page225
6 SDI BNC "3G-SDI (HD-SDI) Out" on the next page
