Red Dragon WEAPON/EPIC-W - DSMC2 V-LOCK I;O EXPANDER

DSMC2 V-LOCK I/O EXPANDER

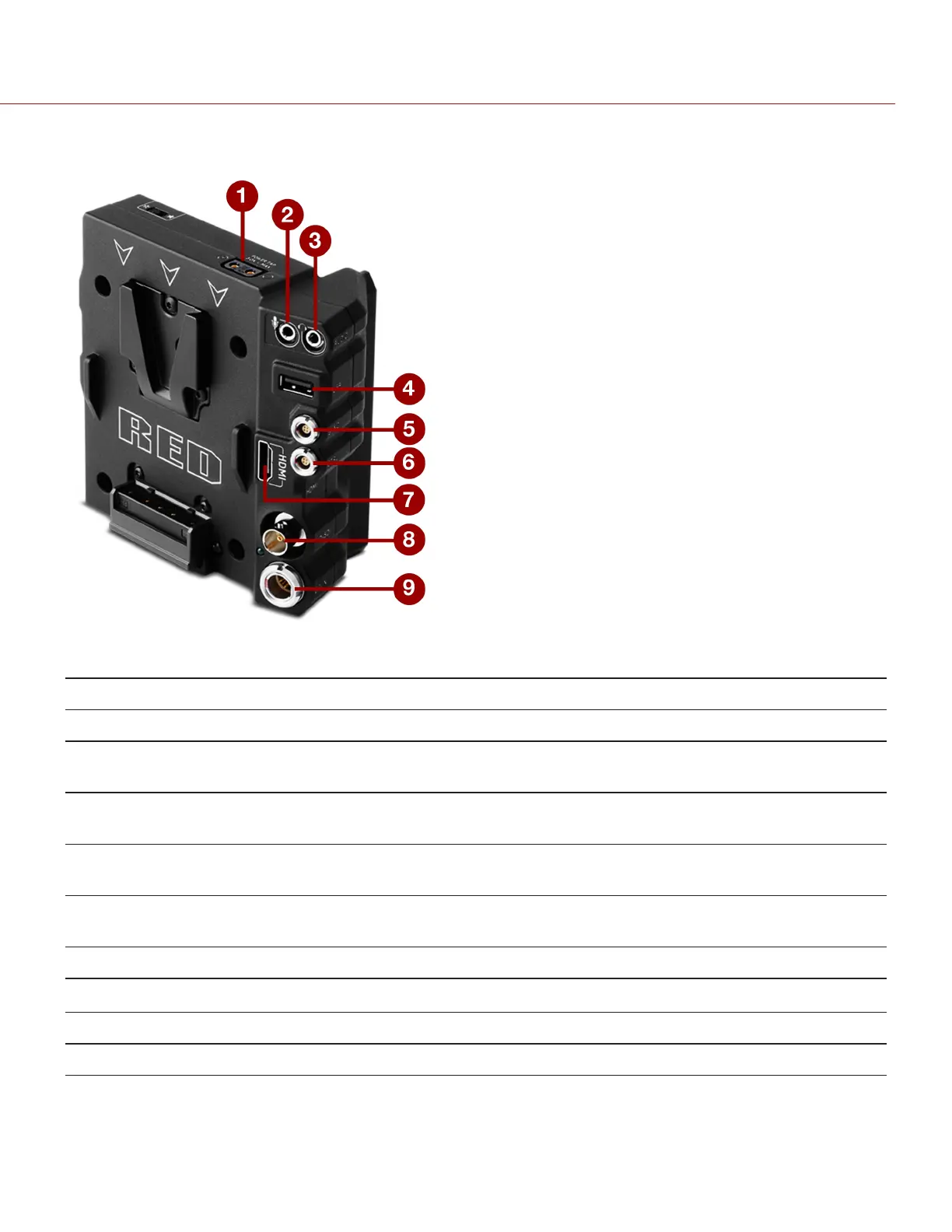

Figure: DSMC2 V-Lock I/O Expander
# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 AUX Power P-Tap 2-pin Female "AUX Power (P-Tap)" on page241
2 Stereo
Microphone
3.5mm stereo "Stereo Microphone" on page233
3 Headphone
Jack
3.5mm stereo "Headphone" on page234
4 USB Power USB 2.0, Type A (power
only)
"USB Power" on page240
5 SYNC 4-pin 00B LEMO "SYNC (Video Sync In) with Contact Closure Style Trigger Input" on
page225
6 CTRL 4-pin 00B LEMO "CTRL (RS232 Control)" on page227
7 HDMI
®
HDMI 1.2, Type A "HDMI Out" on page222
8 HD-SDI BNC "3G-SDI (HD-SDI) Out" on page221
9 DC IN 6-pin 1B LEMO "DC IN (Power Input)" on page235
