AUX POWER (P-TAP)
The DSMC2 V-Lock I/O Expander features an AUX power out connector. The AUX power out connector features an
industry-standard P-Tap connector and supplies conditioned VBATT at a maximum of 3.0A of power.

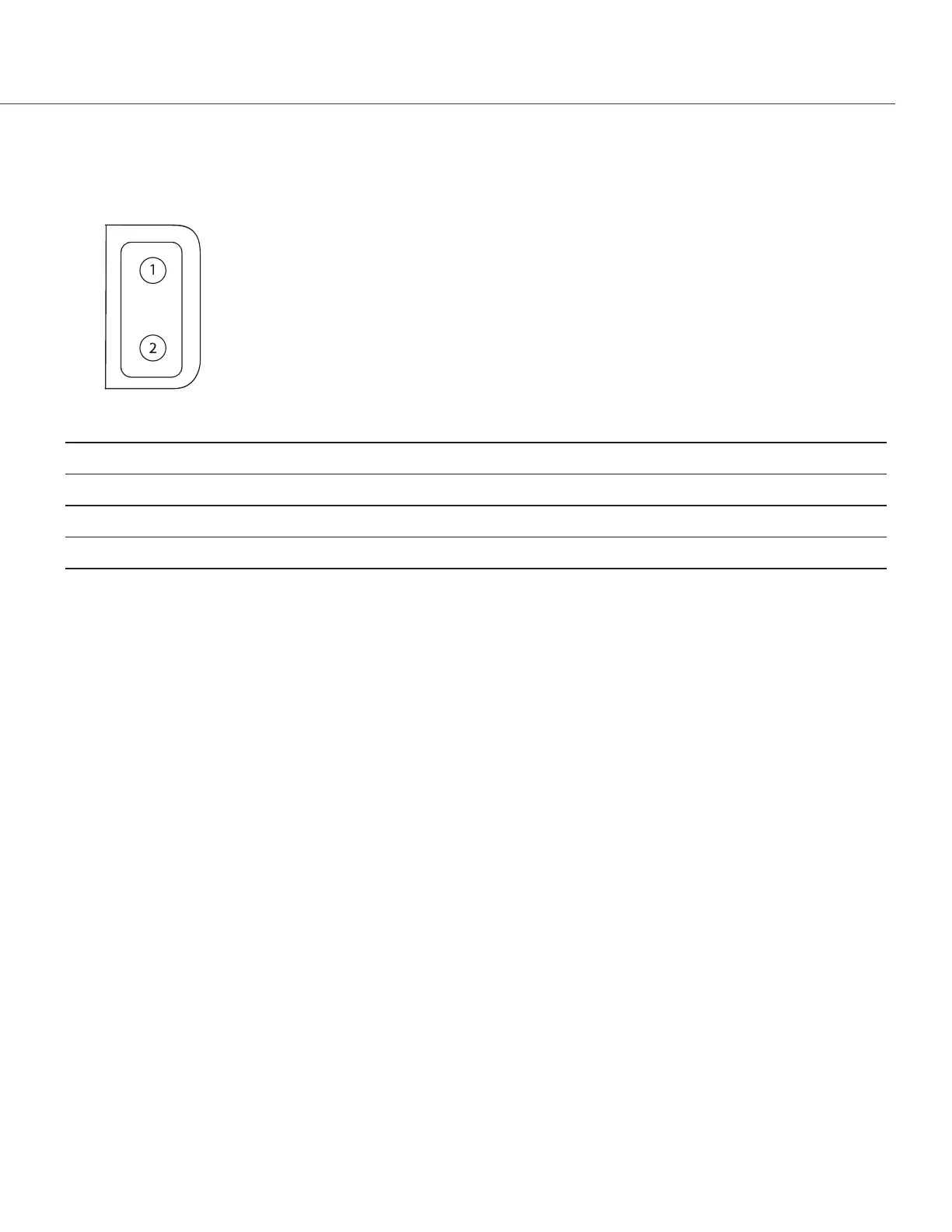

Figure: P-Tap Connector (Looking at Camera)
2-PIN DTAP CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through power Out
C OPYRI GHT © 2017 R ED.C O M , I NC 955- 01 38 _V6.3, REV-D | 241
WEAPON/EPIC-W OPERATION GUIDE
