POWER MODULES
RED offers the following DSMC2 power modules:
Item Part Number
DSMC2 REDVOLT XL Module 740-0034
NOTE: If a power module is attached to the DSMC2 REDVOLT Expander, the power out connectors on the module are
enabled only if power is connected to the module (via DC IN or a battery).
DSMC2 REDVOLT XL MODULE

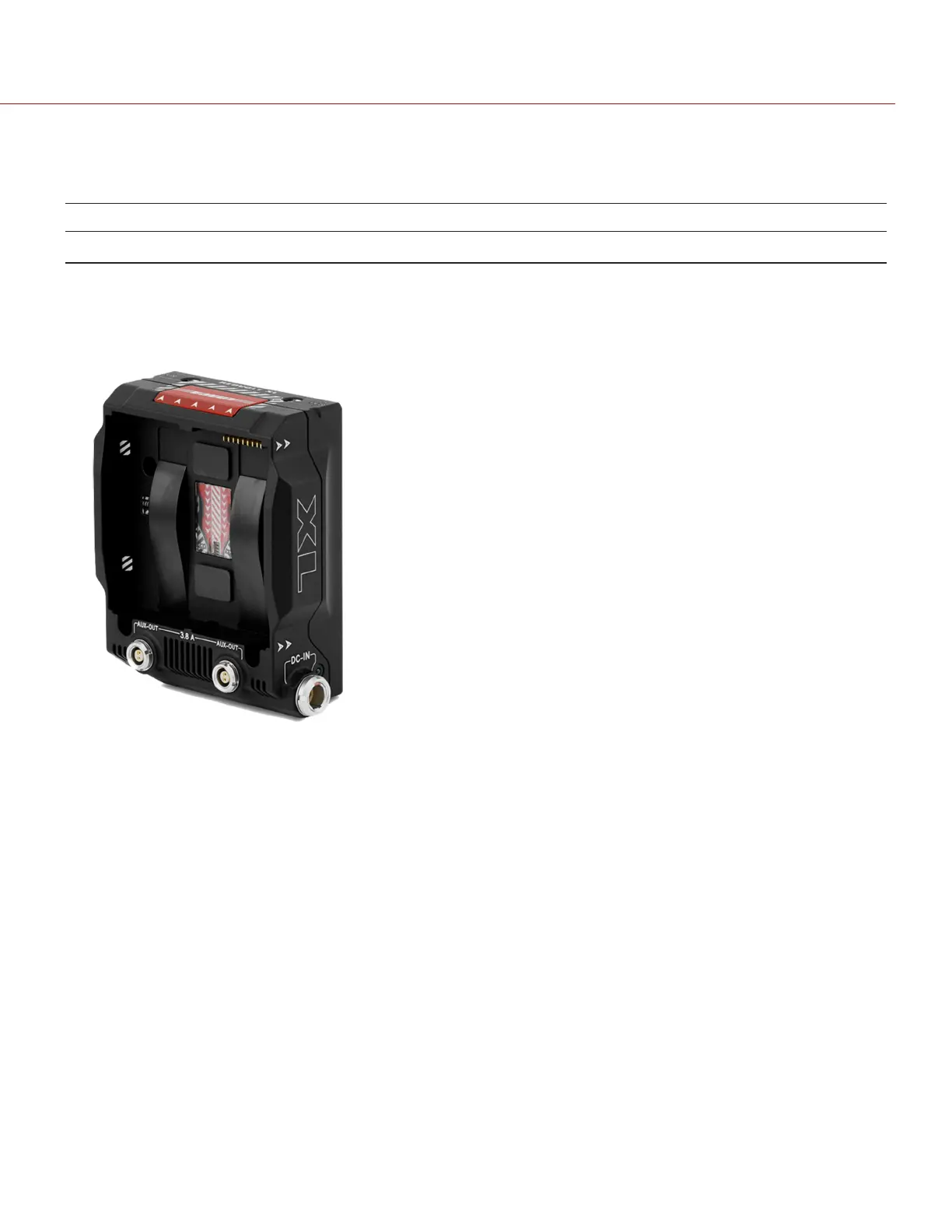

Figure: DSMC2 REDVOLT XLModule
The DSMC2 REDVOLT XL Module mounts seamlessly to the back of the camera—and select other I/O expanders—to
provide support for long-lasting and rechargeable REDVOLT XL batteries. The DSMC2 REDVOLT XL Module features
a smaller, more ergonomic design with one (1) dual-action release button for removing an attached battery.
The DSMC2 REDVOLT XL Module offers a DC IN power port that can be used to power the camera system when the
module is attached to the camera. An included protective baseplate enables the DSMC2 REDVOLT XL Module to
serve as a portable and stand-alone REDVOLT XL battery charger. Plug in the DSMC AC Power Adaptor to the 6-pin
1B LEMO DC IN connector on the module and connect a REDVOLT XL battery. While the module is mounted to the
camera, it will only charge an attached REDVOLT XL battery if the camera is powered off.
Two (2) rear facing auxiliary ports provide power for external camera accessories, while remaining out of the way while
shooting.
