WEAPON/EPIC-W OPERATION GUIDE
B
MECHANICAL
DRAWINGS
WEAPON8K S35 BRAIN
NOTE: Dimensions are shown in mm.
The optical axis height of the camera is 95.90 mm.

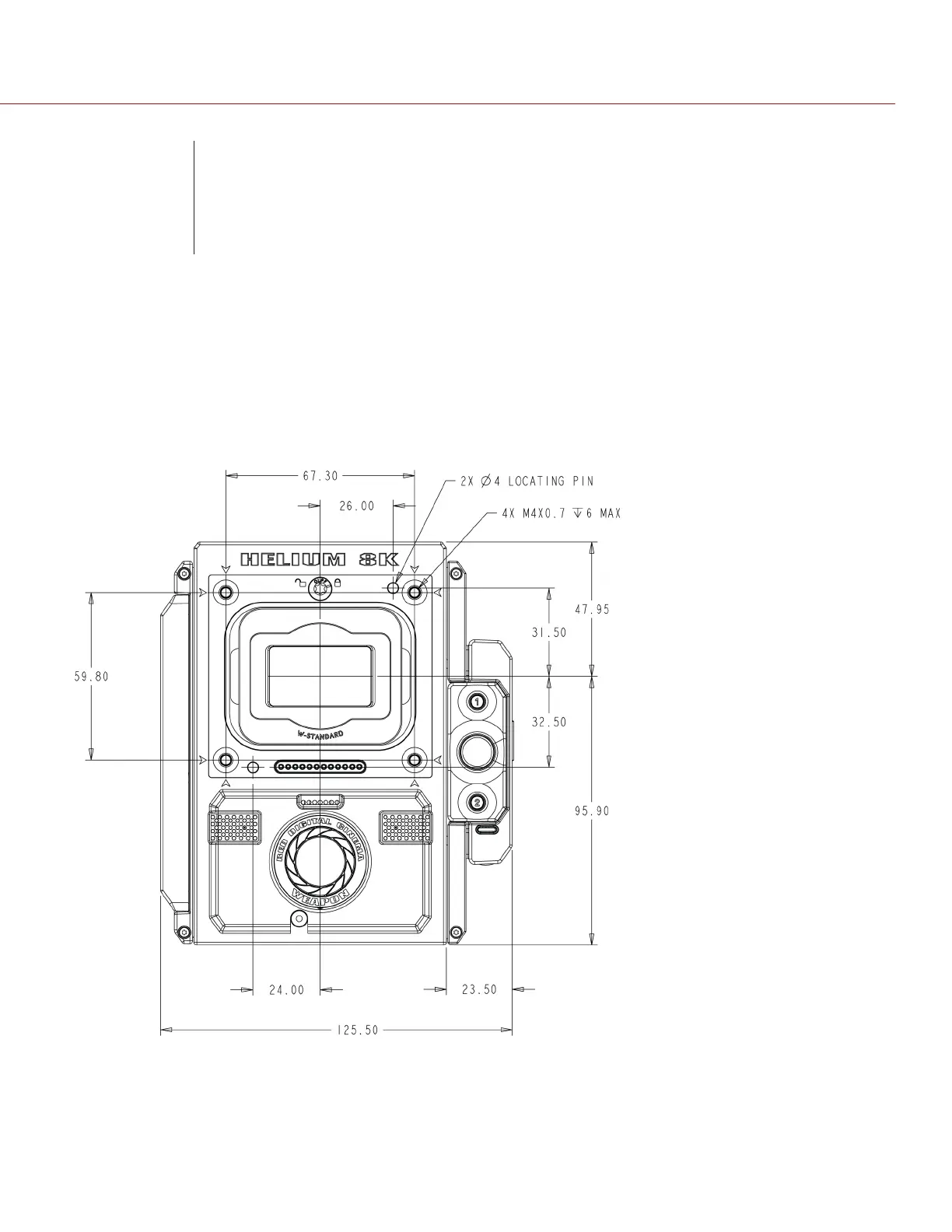

FRONT VIEW
Figure: WEAPON8K S35 Front View
