SYNC (VIDEO SYNC IN) WITH CONTACT CLOSURE STYLE
TRIGGER INPUT
The following expanders feature a SYNC connector with contact closure style trigger input:
DSMC2 Jetpack Expander
DSMC2 Jetpack-SDI Expander
DSMC2 V-Lock I/O Expander
The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals. To
operate the GPI contact closure style trigger, short Pin 2 (GPI) to Pin 1 (ground).
WARNING: DO NOT apply voltage to Pin 2 (GPI).

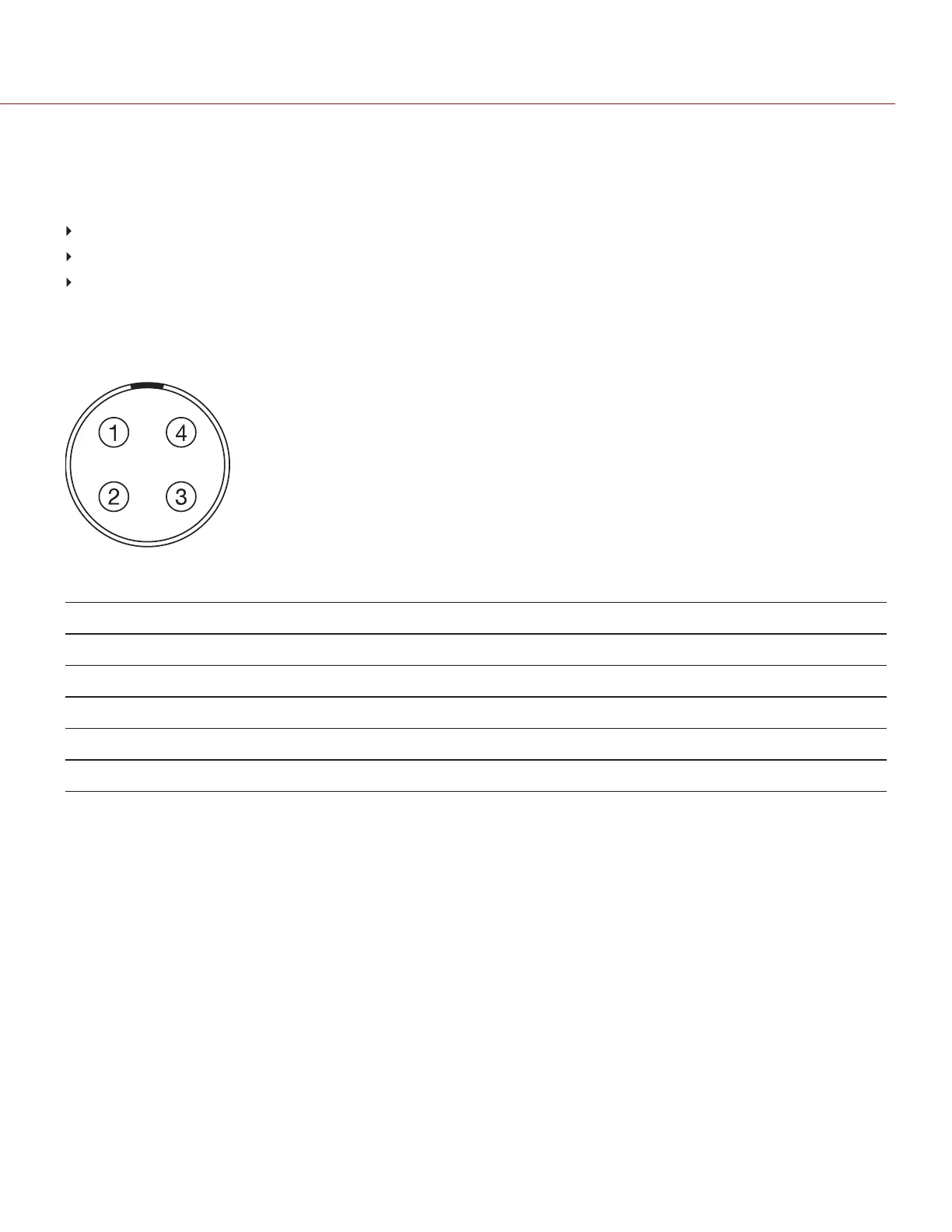

Figure: Front Face of the SYNC (Video Sync) Connector (Looking at the Camera)
4-PIN 00B LEMO SYNC CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 GPI General purpose input trigger; contact closure to Pin 1 In
3 TIMECODE SMPTE unbalanced timecode input In
4 GENLOCK Tri-level sync input In
NOTE: Mating connector is FGG.00.304.CLAD.
C OPYRI GHT © 2017 R ED.C O M , I NC 955- 01 38 _V6.3, REV-D | 225
WEAPON/EPIC-W OPERATION GUIDE
