TIMECODE
The DSMC2 REDVOLT Expander features a Timecode (TC) connector.
The LEMO EAG.0B.305.CLN connector supports SMPTE timecode input and output. Pins 2 and 3 can be used
together to receive a balance SMPTE 12M serial timecode input. Pin 2 can be used by itself (leave pin 3 open) to
receive a single-ended SMPTE 12M serial timecode input. Pin 5 is a timecode output.

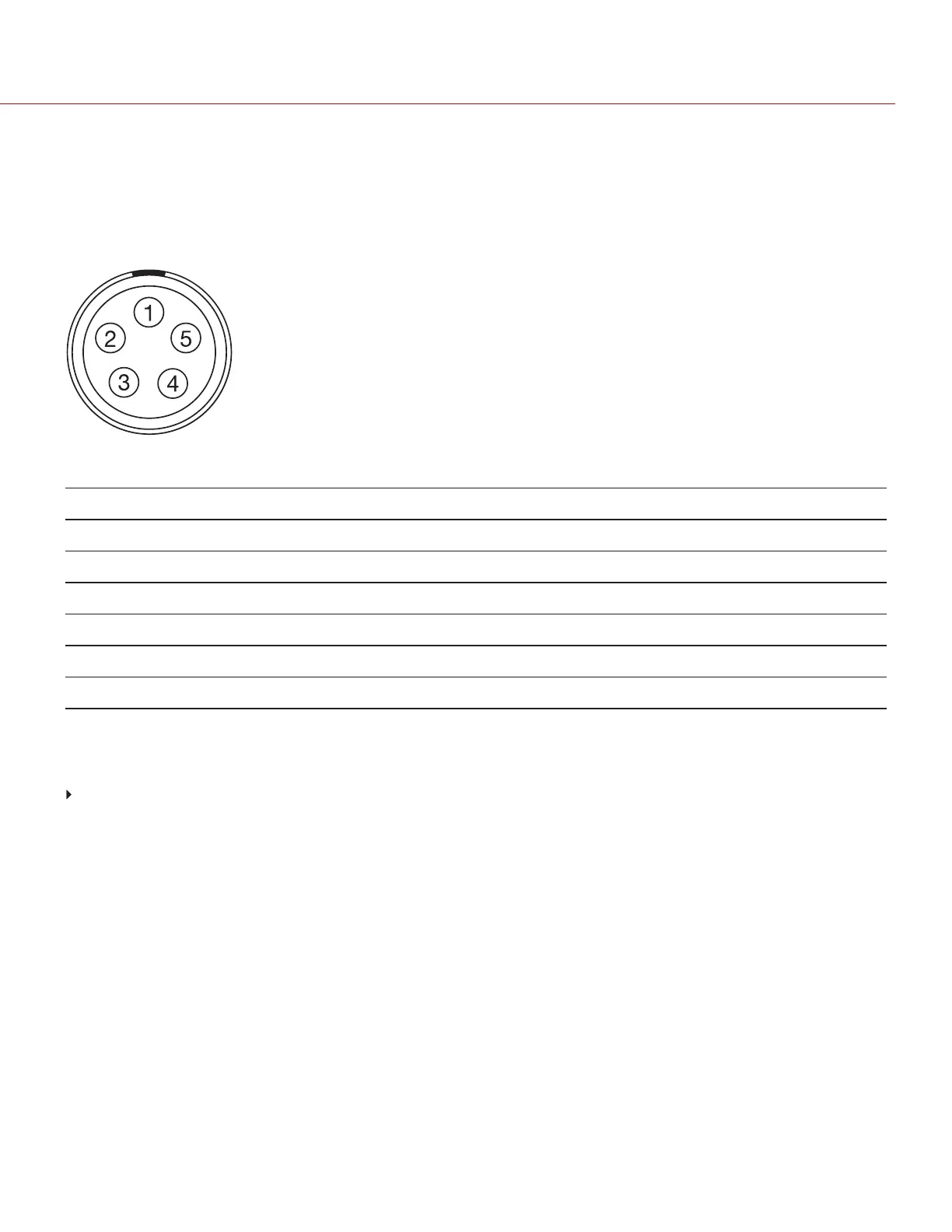

Figure: Front Face of Timecode (LEMO EAG.0B.305.CLN) Connector (Looking at the Camera)
LEMO EAG.0B.305.CLN CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Camera Ground N/A
2 TIMECODE IN(S) Timecode input - SMPTE single ended In
3 N/A No connection (NC) N/A
4 +5 V OUT +5 V out, 200 mA max Out
5 TIMECODE OUT SMPTE 12 M Timecode output Out
NOTE: Mating connector is FHG.0B.305.CLAD.
COMPATIBLE CABLE
790-0212: Pro I/O Time Code Cable 3'
