AUX POWER 2-PIN LEMO, 3.0A
The DSMC2 REDVOLT Expander features an auxiliary power out connector (3.0A).
The 2-pin 0B LEMO connector (LEMO EEG.0B.302.CLL) supplies unregulated (+) 11.5 to 17 VDC battery pass-through
power. The maximum sustained current draw is 3.0A.

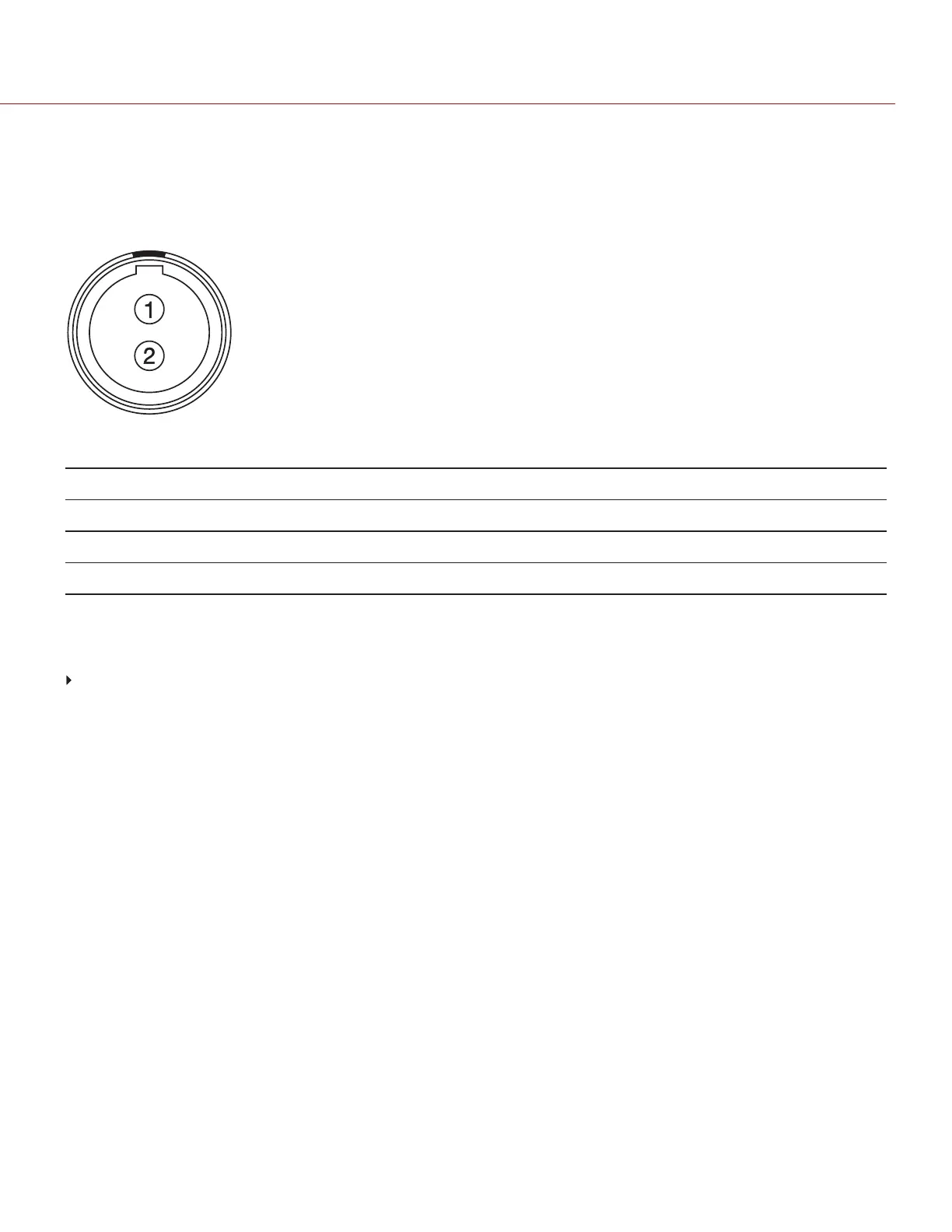

Figure: Front Face of AUX PWR Connector (Looking at the Camera)
LEMO EEG.0B.302.CLL CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through power Out
NOTE: Mating connector is FGG.0B.302.CLAD.
COMPATIBLE CABLE
790-0410: RED W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18")
C OPYRI GHT © 2017 R ED.C O M , I NC 955- 01 38 _V6.3, REV-D | 237
WEAPON/EPIC-W OPERATION GUIDE
