DSMC2 JETPACK EXPANDER

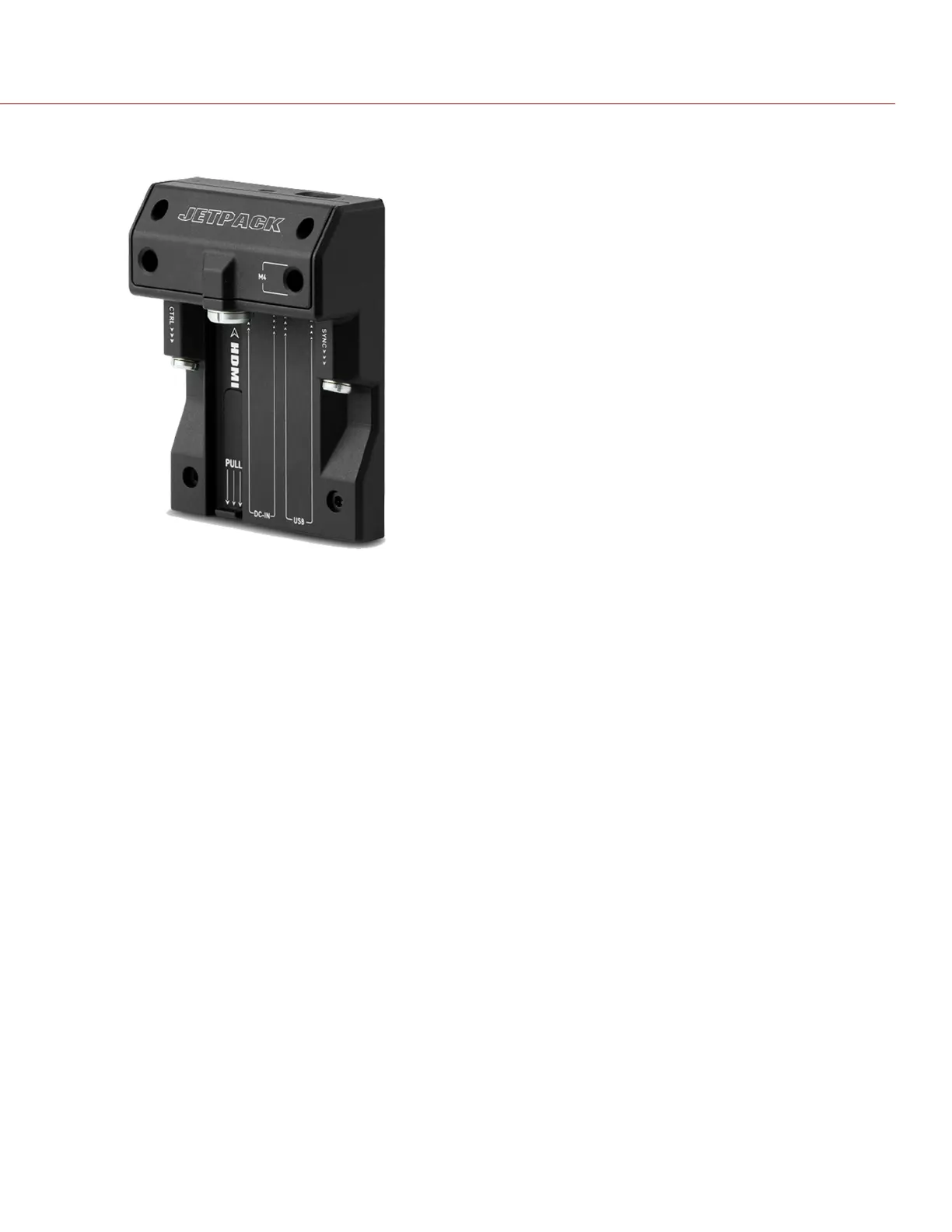

Figure: DSMC2 Jetpack Expander
The DSMC2 Jetpack Expander is specifically designed for aerial, gimbal, handheld, and other lightweight/remote
configurations. This expander features standard connectors for power (DC-IN), CTRL, and SYNC for all of your
Timecode and Genlock needs. In addition, the DSMC2 Jetpack Expander offers custom-tailored support and
connectors for HDMI and USB power out—perfect for housings and low-profile setups.
The DSMC2 Jetpack Expander also features a selector switch that enables the camera to automatically boot when
power is provided via the DC IN connector on the expander. This feature allows you to use a connected DC input
supply to turn the camera on and off when the camera is mounted in remote or difficult to maneuver locations.
NOTE: Only one (1) expander module can be used at a time.
C OPYRI GHT © 2017 R ED.C O M , I NC 955- 01 38 _V6.3, REV-D | 21
WEAPON/EPIC-W OPERATION GUIDE
