DSMC2 RED EVF FEATURES

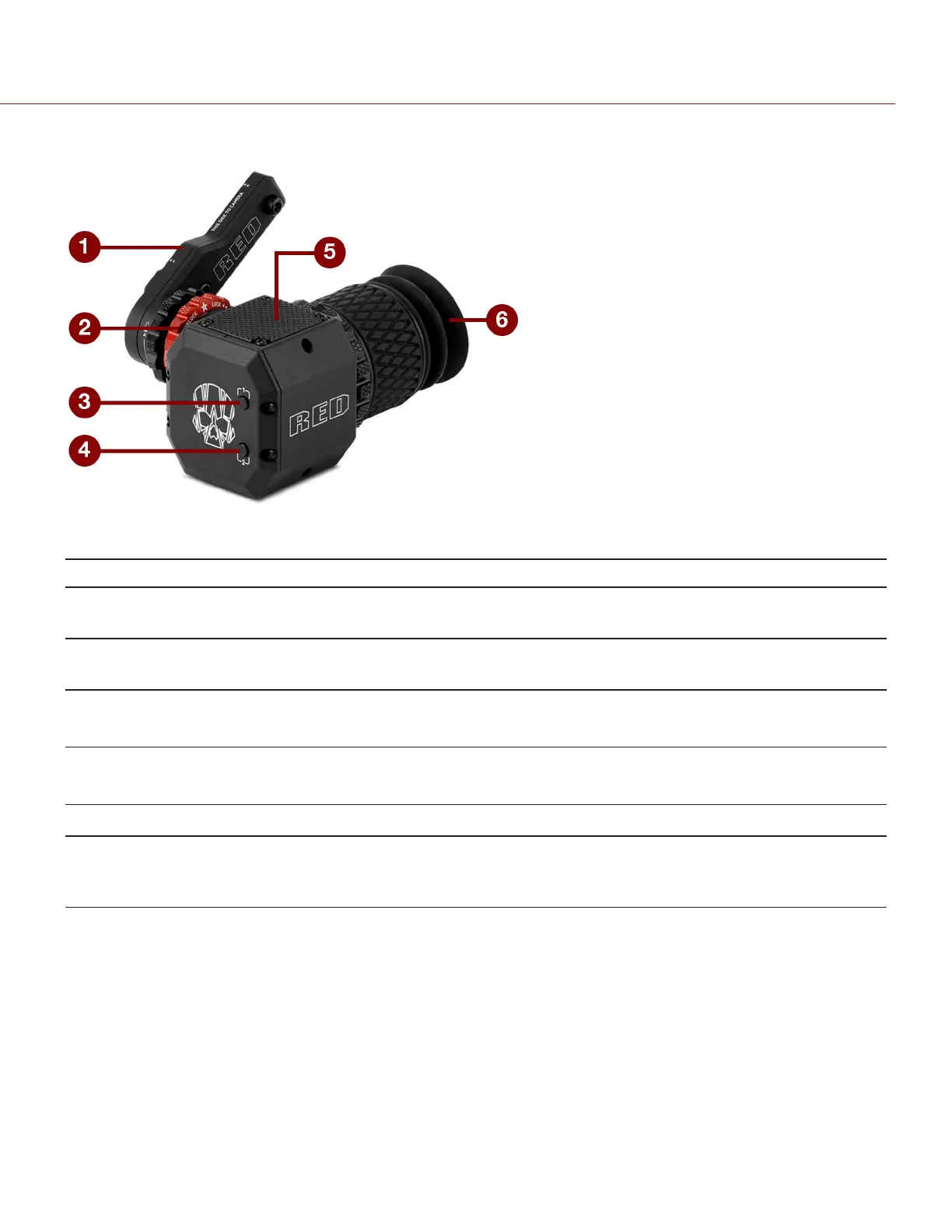

Figure: DSMC2 RED EVF
# Feature Description
1 DSMC2 RED EVF
Mount
The DSMC2 RED EVF Mount
2 EVF connector
1
Custom digital video and power interconnection between the EVF and other RED devices;
Pinout not published; compatible with standard RED EVF/LCD LEMO cables
3 Key 1 Programmable key
Magnify: Toggle
4 Key 2 Programmable key
Exposure Check: Toggle
5 Mounting point Mounting point for the DSMC2 RED EVF Mounting Plate (Top)
6 DSMC2 RED EVF
Modular Optical
Block
Fully coated with a > 32° field of view
1. Not visible. Shown with the DSMC2 RED EVF Mount attached.
