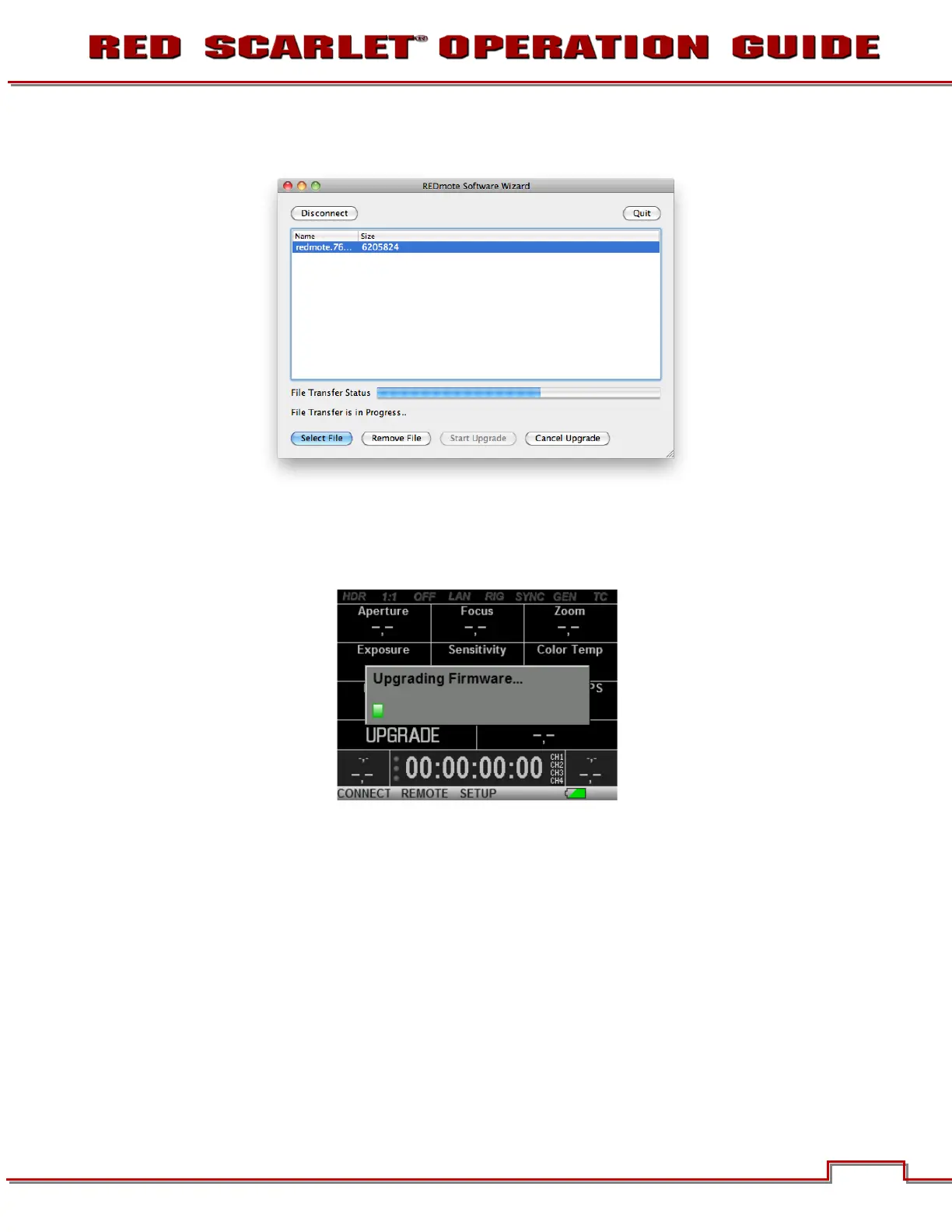

9. Select "Start upgrade".

10. File transfer status will be displayed as a Blue bar.

11. “Updating Firmware” will be displayed with a Green status bar showing upgrade progress.

REDMOTE will also display UPGRADE during this process.
