Description of the device
Reflexomat with Touch controller — 06.07.2016 - Rev. B English —

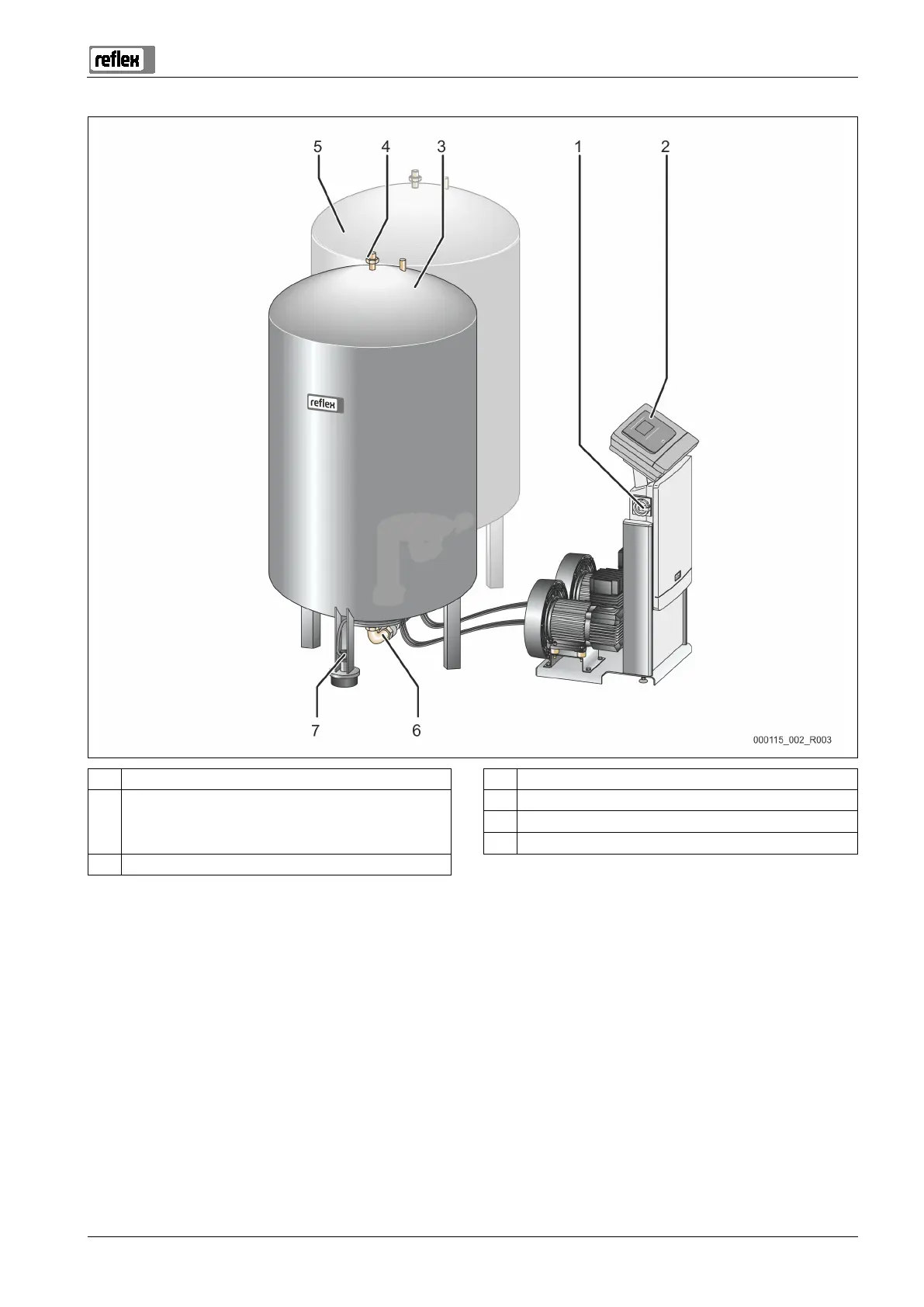

Reflexomat with touch control and two compressors
1 Main switch 4 "SV" safety valve
2 Control unit
• Compressor(s)
• "Reflex Control Touch" controller
5 "RF" secondary tank (optional)
6 "EC" expansion line
7 "LIS" level sensor
3 "RG" primary tank
