Reflex Reflexomat Series User Manual

Installation
30
— English Reflexomat with Touch controller — 06.07.2016 - Rev. B
6.5.1

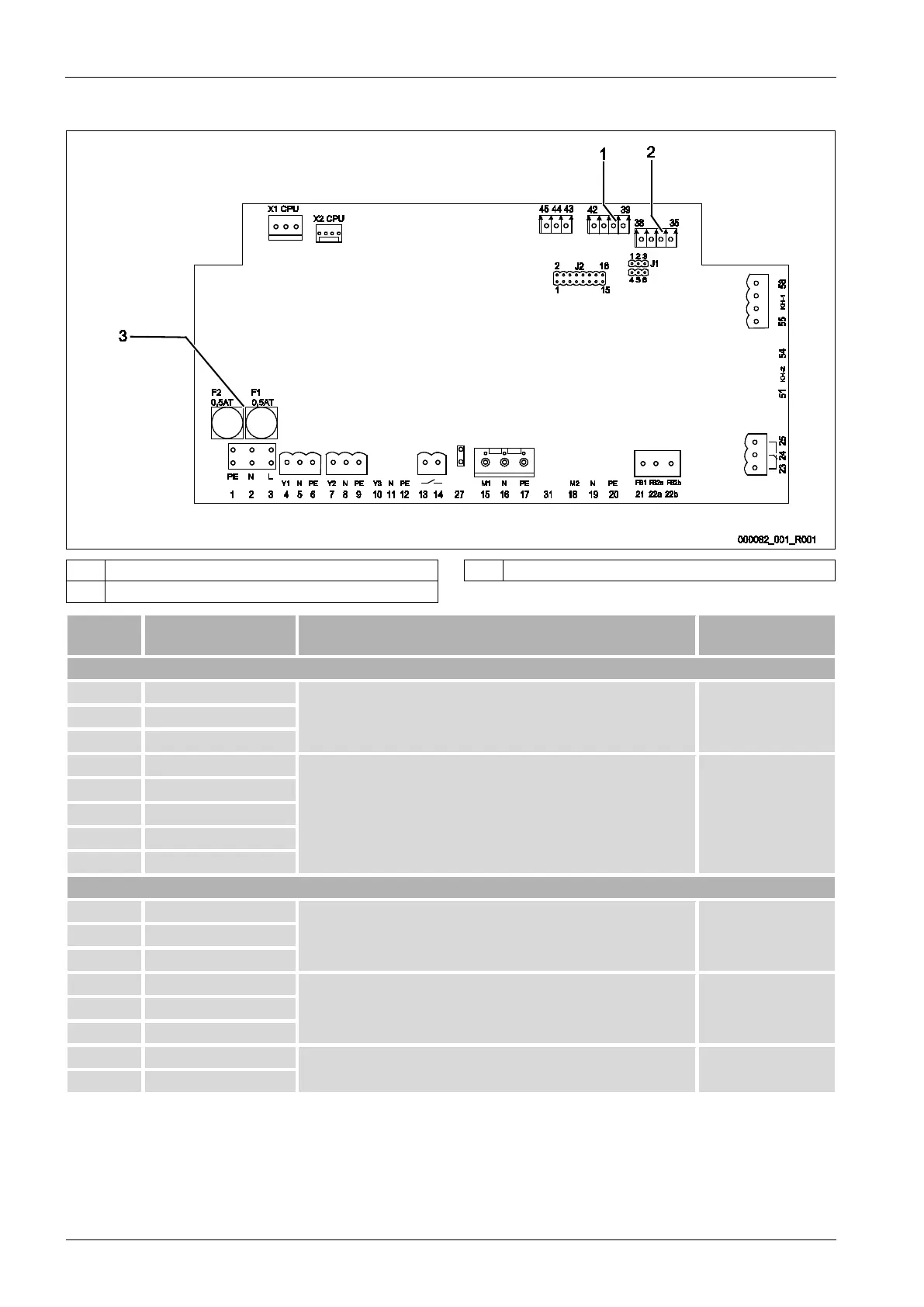

Terminal plan, connection component
1 Pressure 3 Fuses
2 Level
Terminal
number
Signal Function Wiring
Supply
X0/1 L
230 V supply
Reflexomat RS 90
User supplied X0/2 N
X0/3 PE
X0/1 L1
400 V supply
Reflexomat RS 150 ... 580
User supplied
X0/2 L2
X0/3 L3
X0/4 N
X0/5 PE
Circuit board
4 Y1
WV make-up valve User, optional 5 N
6 PE
7 Y2
PV 1 solenoid valve User supplied 8 N
9 PE
13
Dry-running protection message (floating) User, optional
14
