Reflex Reflexomat Series User Manual

Controller
44
— English Reflexomat with Touch controller — 06.07.2016 - Rev. B
9
Controller
9.1

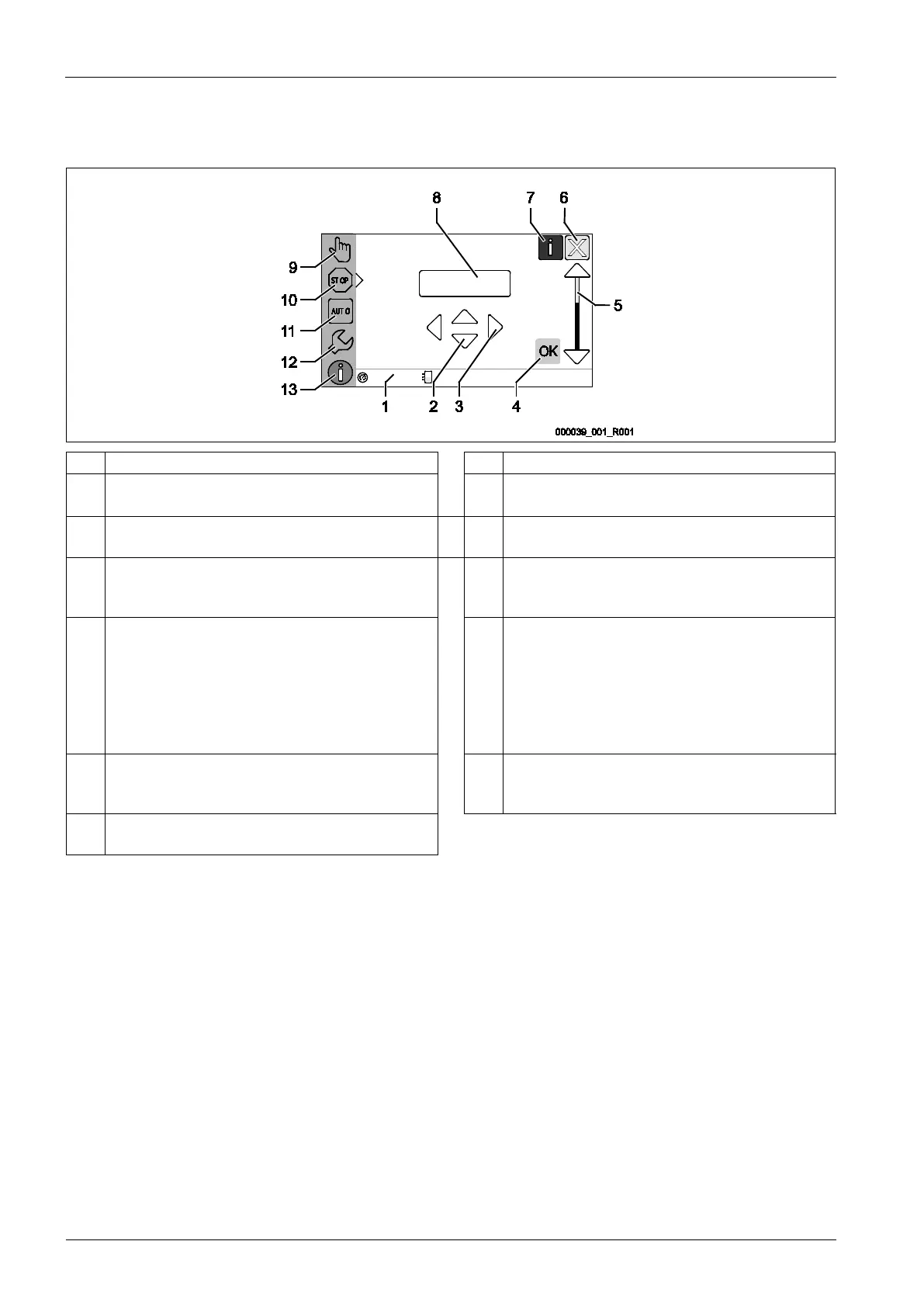

Operator panel
1 Message line 8 Display value
2
"▼"/ "▲" buttons
• Set digits.
9 "Manual mode" button
• For function tests.
3
""/"" buttons
• Select digits.
10 "Stop mode" button
• For commissioning.
4 "OK" button
• Confirm/acknowledge input.
• Browse in the menu.
11 "Automatic mode" button
• For continuous operation.
5 "Up" and "Down" scroll bar
• "Scroll" in the menu.
12 "Set-up menu" button
• For setting parameters.
• Fault memory.
• Parameter memory.
• Display settings.
• Primary tank information.
• Software version information.
6 "Scroll back" button
• Cancel.
• Move backward up to the main menu.
13 "Info menu" button
• Displays general information.
7 "Display help texts" button
• Opens help texts.
