Technical data
16
English Reflexomat with Touch controller06.07.2016 - Rev. B
5.2

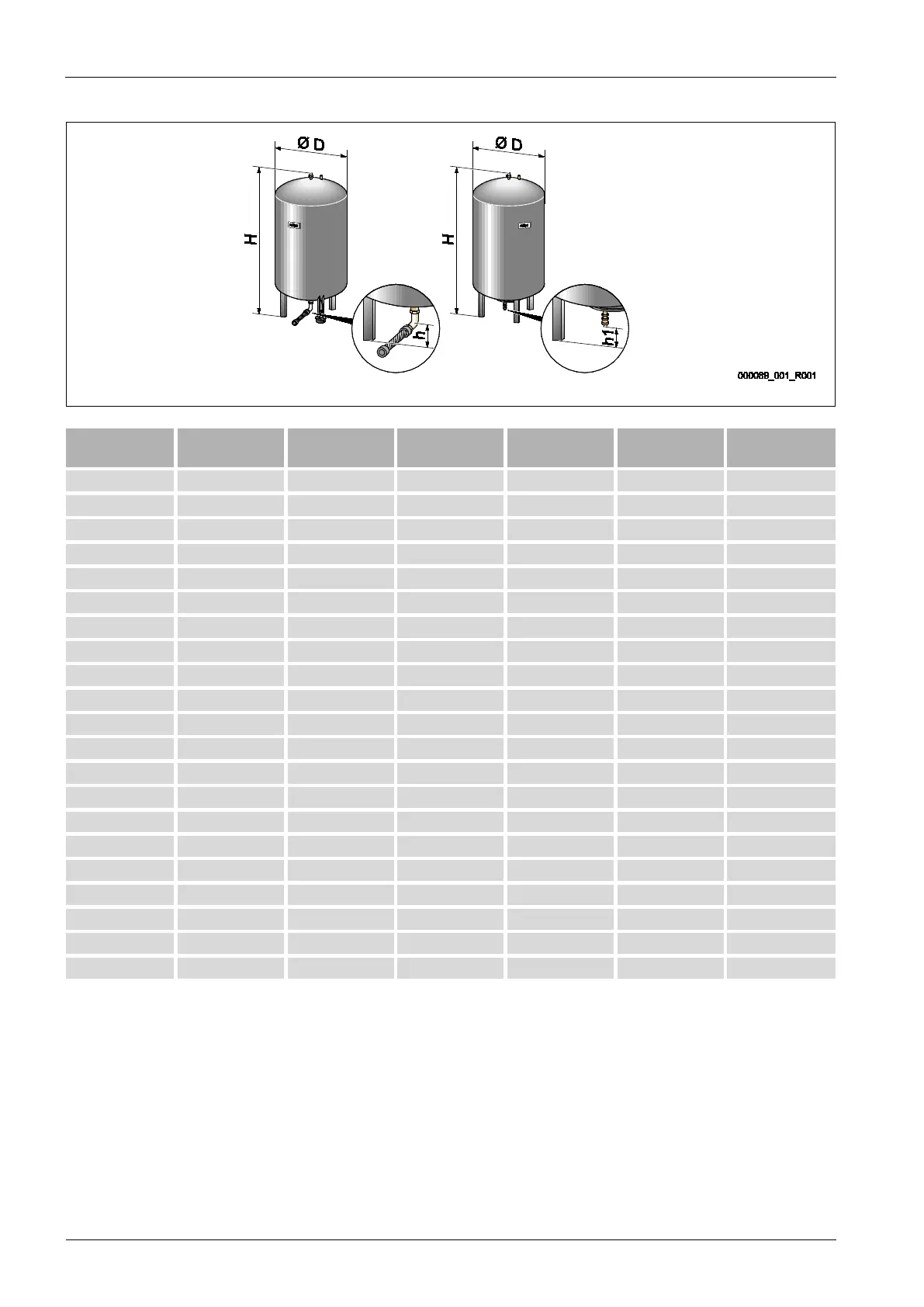

Tanks
Primary vessel Secondary tank
Type
Diameter Ø "D"
(mm)
Weight
(kg)
Connection
(inches)
Height "H"
(mm)
Height "h"
(mm)
Height "h1"
(mm)
6 bar - 200 634 37 R1 970 115 155
6 bar - 300 634 54 R1 1270 115 155
6 bar - 400 740 65 R1 1255 100 140
6 bar - 500 740 78 R1 1475 100 140
6 bar - 600 740 94 R1 1720 100 140
6 bar - 800 740 149 R1 2185 100 140
6 bar - 1000 1000 156 DN65 2025 195 305
6 bar - 1500 1200 465 DN65 2025 185 305
6 bar - 2000 1200 565 DN65 2480 185 305
6 bar - 3000 1500 795 DN65 2480 220 334
6 bar - 4000 1500 1080 DN65 3065 220 334
6 bar - 5000 1500 1115 DN65 3590 220 334
10 bar - 350 750 230 DN40 1340 190 190
10 bar - 500 750 275 DN40 1600 190 190
10 bar - 750 750 345 DN50 2185 180 180
10 bar - 1000 1000 580 DN65 2065 165 285
10 bar - 1500 1200 800 DN65 2055 165 285
10 bar - 2000 1200 960 DN65 2515 165 285
10 bar - 3000 1500 1425 DN65 2520 195 310
10 bar - 4000 1500 1950 DN65 3100 195 310
10 bar - 5000 1500 2035 DN65 3630 195 310
