Reflex Reflexomat Series - Make-Up and Degassing Variants; Function

Installation
26
— English Reflexomat with Touch controller — 06.07.2016 - Rev. B
6.4
Make-up and degassing variants
6.4.1
Function
The filling level is recorded in the primary tank by the "LIS" level sensor and evaluated in the controller. When the water level falls below
the value specified in the controller's customer menu, the external make-up is activated.
6.4.1.1
Make-up without pump

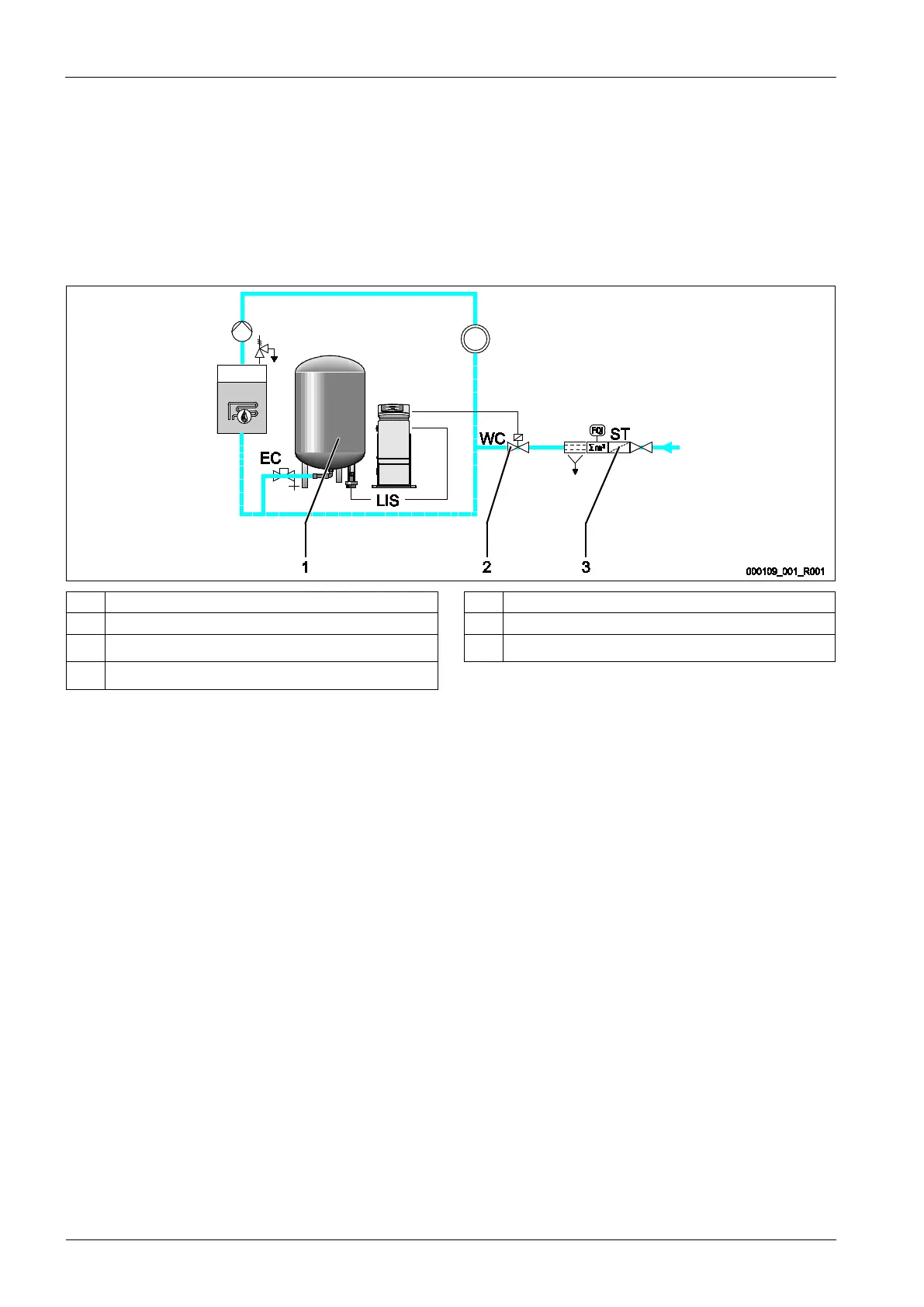

Reflexomat RS with solenoid valve and ball valve.
1 Reflexomat RS WC Make-up line
2 Solenoid valve “Fillvalve” with ball valve LIS Level sensor
3
Reflex Fillset
EC Expansion line
ST
Dirt trap
Preferably, you should use the Reflex Fillset with integrated system separator when using drinking water for make-up, see chapter 4.6
"Optional equipment and accessories" on page 14 . If you don't use a Reflex Fillset, you must use an "ST" dirt trap with a mesh size
≥ 0.25 mm for the make-up.
